• 80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W
  • 80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W
  • 80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W
80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W

80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET70100170-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Dimension: 700×1000×1700mm Thickness Of Outer Plate: 1.5mm
Thickness Of Inner Plate: 0.8mm The Insulation Material: 20mm PEF
Ingress Protection: IP55 Cooling: Air Conditioner And Heat Exchanger Integrated Unit
High Light:

80W/K weatherproof electrical enclosures

,

1500W weatherproof electrical enclosures

,

80W/K weatherproof electrical cabinet

Product Description



80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W



1. Description Of Outdoor Electrical Enclosure



Outdoor Electrical Enclosure designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including general industrial, infrastructure, road/traffic management and intelligent transport systems. cabinets represent a suitable solution for projects with high requirements on stable in-rack climate.



2. Selling points and Feature Of Outdoor Electrical Enclosure



>>> In & out airflow system

>>> Optional air-con system

>>> Rotating front door

>>> 3 locking points

>>> Protection from dirt, dust, oil, and other non-corrosive material

>>> Complete protection from contact with enclosed equipment

>>> Available in aluminum, carbon steel, and stainless steel



3. Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension (W×D×H): 700×1000×1700mm
Layout 1 compartment
Equipment Installation Method 19″ Data Rack Rails
Door With one front door and one rear door, and special lock for outdoor cabinet (support padlock)
Material High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF
Structure Welded
Ingress Protection IP55
Temperature Control Cooling Air Conditioner and Heat Exchanger Integrated Unit
Temperature Temperature Working Temperature: 40°C ~ +70°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity ≤95% (at + 40°C)
Pressure Air Pressure 62kPa ~ 102kPa

Radiation

Intensity

Solar Radiation

Intensity

1120 × (1±5%)W/m2





4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension (W×D×H): 700×1000×1700mm

(2) 1 compartment

(3) With one front door and one rear door , and special lock for

outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

2 Air Conditioner and Heat Exchanger Integrated Unit 1 Set

Cooling capacity: 1500W

Heat Exchanger 80W/K

3 Environment Monitoring System 1 Set LED 1pcs, Door detector 1pcs, Water Sensor 1pcs
4 Packing 1 Set Wooden case



5. Enclosure Cooling



1500W/Heat Air Conditioner and 80W/K Heat Exchanger Integrated Unit



6. Cabinet Structure



(1) External Dimension: 700×1000×1700mm

(2) 1 compartment

(3) With one front door and one rear door, and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

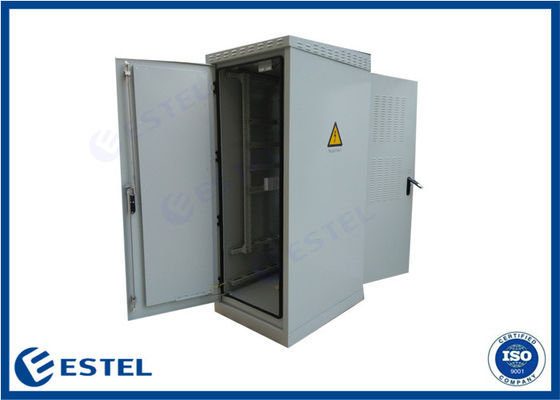

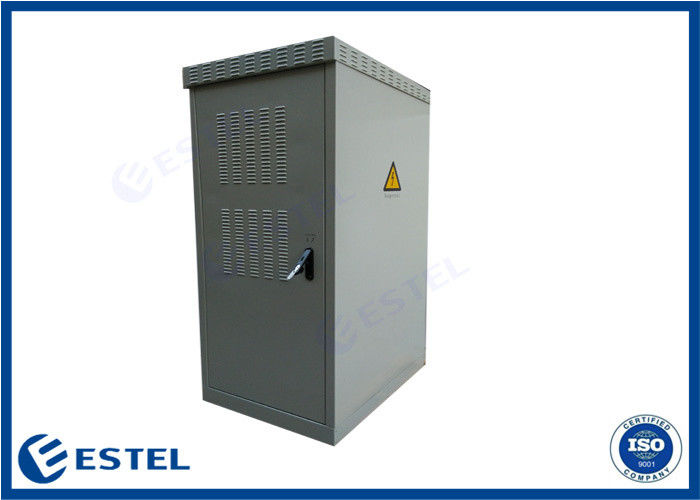

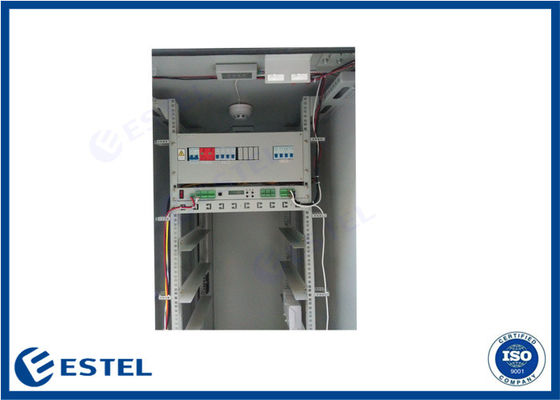

7. Cabinet Picture:



80W/K Weatherproof Electrical Enclosures Air Conditioner 1500W 0



8. Appearance And Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color. The coating complies with GB/T 3181-2008 requirement.



9. Factory Introduction



Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Year



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
