19 Inch 40U Outdoor Telecom Enclosure 1500W AC220V 60Hz UK Type
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | 9090210-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |

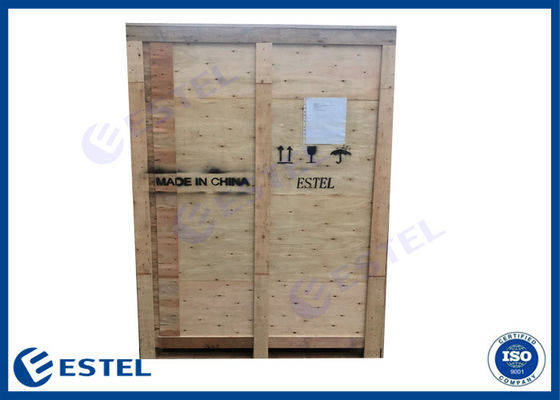

| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union Paypal |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| External Dimension: | W×D×H 900×900×2100mm | Internal Dimension: | 40U |
|---|---|---|---|
| One Compartment: | Yes | Air Conditioner: | 1500W |
| LED Lamp: | C220V 60Hz | LED Lamp Switch: | For Controlling LED Lamp On/off |
| High Light: | 19 Inch 40U Outdoor Telecom Enclosure,60Hz Outdoor Telecom Enclosure,1500W AC220V telecommunication enclosure |
||
Product Description
19 Inch 40U Outdoor Telecom Enclosure 1500W AC220V 60Hz UK Type
1. Features
· 19" mounting rails front and rear
· Come with plinth for mounting on the floor ground
· Available in colors, Grey, customized colors
· The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. -There are cable inlet individually for power cable, signal cable and optical cable.
· All the cables used in the cabinet are made from flame retardant materials.
2. Cabinet Application
· Environmental monitoring
· CCTV and security systems
· Base station
· Mobile & Radio, 3G 4G 5G, Tetra, Microwave
· Telecommunication
· Internet service providers
3. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2100mm Internal Dimension:40U (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 60Hz installed on the front door. |
| 3 | Air conditioner | 1 | PC | 1500W, AC220V 60Hz |
| 4 | LED Lamp | 1 | PC | AC220V 60Hz |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 60Hz UK type socket |
| 7 | Package | 1 | PC | Wooden Case |
4.cabinet structure
(1) External Dimension: W×D×H 900×900×2100mm
Internal Dimension:40U
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
5.Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continuous operation.It supports RS485 communication and can be connected with customers' system.
· Cooling Capacity:1500W
· Power Supply: 220VAC,60Hz
6.Transport
The cabinet can be transported by various transportation ways. During the transportation, the environment temperature should be -40°C~+70°C, the relative humidity should be ≤90%(at +30°C). There should be a awning to prevent the product from rain and sunshine. Loading, unloading and moving of the product should be carried according to the transportation signs painted on the packing.

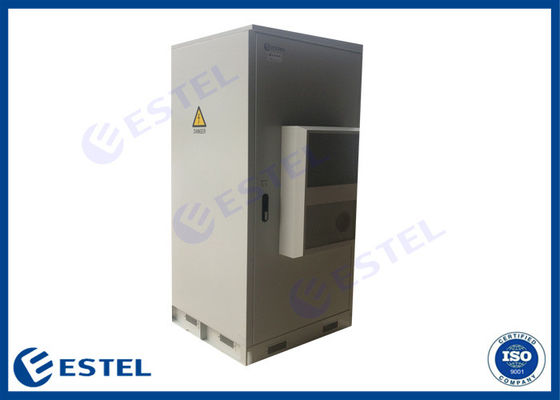

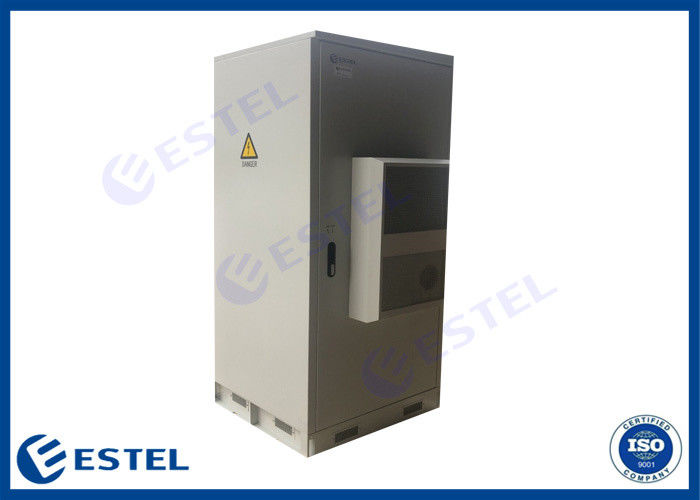

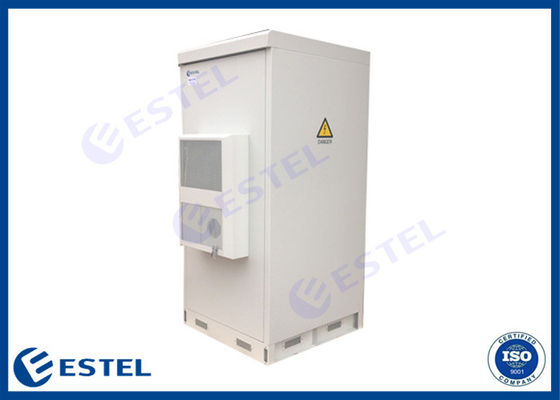

7.Cabinet picture
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
