IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger

IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7575175-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel External Size: 750×750×1750mm(W×D×H)
Internal Space: 19" 32U Base Height: 200mm Or Customerizd
Door: One Front Door And One Rear Door Lock: Anti-theft Three Point Lock
IP Grade: IP55 Waterproof Dustproof Heat Exchanger: 150W/k DC48V
Air Conditioner: 1500W AC220V Fan: Two Fans AC220V
Powder Coating: Anti-corrosion Standard Color: Light Grey, RAL7035. Custom Color Available
Installation: Floor Mounted Access: Front Access And Rear Access
Cable Manager: Included
High Light:

IP55 Waterproof Outdoor Telecom Cabinet

,

IP55 16U Outdoor outdoor equipment cabinet

,

500W 16U Outdoor Telecom Cabinet

Product Description

IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger

IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger



1. Company Introduction



Estel have designed and manufactured outdoor telecom cabinet for 10 years.Our products are exported to Southeast Asia, Africa, Australia, South America, Central America, North America, Europe etc. We offer a variety of outdoor telecom cabinet for various equipment. If one of our standard products doesn’t quite meet your application requirements, we can modify the design to create the ideal outdoor telecom cabinet for your needs. We can collaborate with you and your team to create new products built to your specifications. We also provide OEM service for our customers.



2. Application of IP55 Waterproof Outdoor Telecom Cabinet



ET7575175-EQ Integrated outdoor telecom cabinet is designed to house telecom equipments, power system and batteries. they provide protection from vandalism, dust, rain, snow and dripping water. It offers standard 19-inch racking rails and battery shelves, is a new design for telecom projects and surveillance projects. These outdoor telecom cabinet have provision of floor mounting. This series cabinet offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.



3. Selling Points and Feature Of IP55 Waterproof Outdoor Telecom Cabinet



● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
● 32 rack units (RU), standard 19” rail
● IP grade: IP55
● Cabinet cooling: 1500W air conditioner, 150W/k Heat Exchanger and fans
● Heavy duty outdoor construction
● Front access and rear access

● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlets at cabinet bottom
● Include grounding bar
● Include door stopper

● Base height: 200mm or customerized
● Waterproof, dustproof

● Anti-corrosion

● Floor mounted

● Equipped with cable manager

● Cable inlets at the bottom of cabinet



4. Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet



Configuration Item Technical Parameter
Cabinet Body Model ET7575175-EQ
Size

External Size: 750×750×1750mm(W×D×H)

Internal Space: 650×650×1450mm(W×D×H) 19” 32U

Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.
Material Galvanized steel
Structure

(1) One front door and one rear door

(2) Anti-theft three point lock, support padlock

(3) Door stopper is installed for keep door at an angel when door is open

(4) Door with good sealing, waterproof and dust-proof

(5) Include standard 32U 19“ rack inside the cabinet, high compatibility.

(6) Equipped with cable manager

(7) Cable inlets at the bottom of cabinet

Surface Treatment Powder coating
Color Grey RAL7035
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Air Conditioner

Cooling Capacity: 1500W

Power Supply: 220VAC, 50Hz

On front door

Heat Exchanger

Cooling Capacity: 150W/k

Power Supply: -DC48V

On rear door

Fan Two AC220V fans with one temperature adjustable controller


5. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension

750×750×1750mm(W×D×H)

(2) One compartment: including 32U 19” rack.

(3) With one front door and one rear door, with three point lock for outdoor cabinet.

(4) Material: galvanized steel

(5) Floor installed.

2 Air Conditioner 1 Set

Compressor type air conditioner

Cooling Capacity: 1500W

Power Supply: 220VAC, 50Hz

3 Heat Exchanger

Cooling Capacity: 150W/k

Power Supply: -DC48V

4 Fan 2 Set 220VAC
5 LED Lamp Switch 1 PC For controlling LED lamp on/off
6 LED Lamp 1 PC 220VAC
7

Environment

Monitoring

System

1 Set

1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature & humidity sensor,

1× door sensor,

1× tilt vibration sensor

8 Power Distribution Unit

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

9 Package 1 Set Wooden Case


6. Cabinet Drawing



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 0

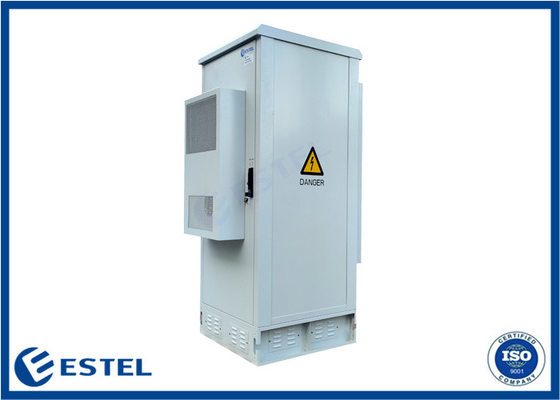

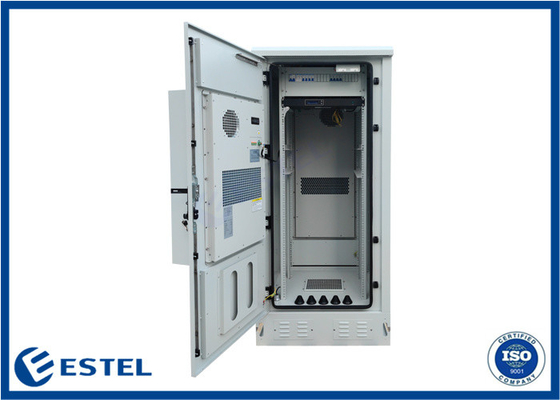

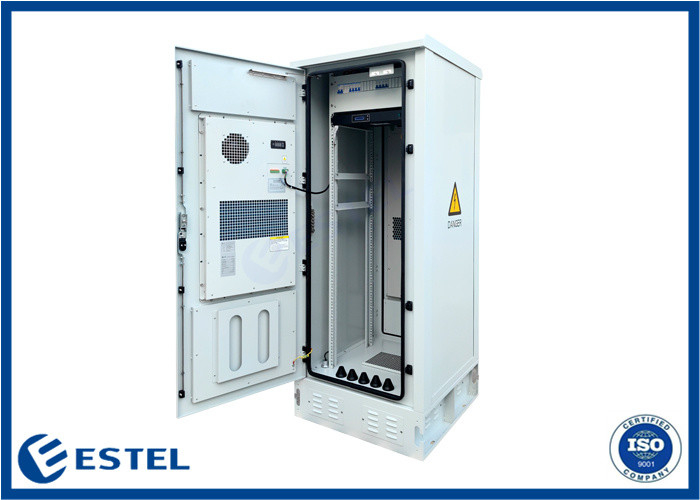

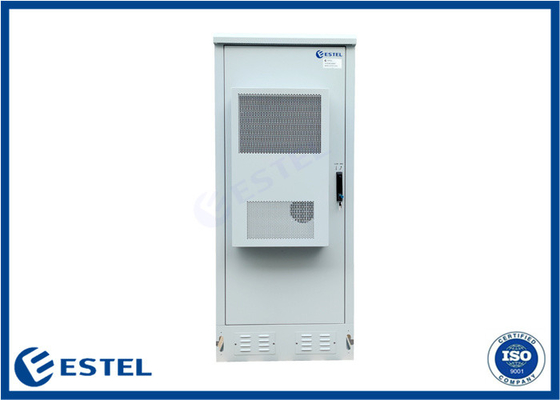

7. IP55 Waterproof Outdoor Telecom Cabinet Picture



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 1



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 2



8. Environment Monitoring System



Environment monitoring unit,19”, 1U, 220VAC, SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature & humidity sensor,

2× door sensor

1× tilt vibration sensor



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 3



9. Power Distribution Unit



Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 4



10. Cooling System



Air Conditioner 1 set

Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz



Heat Exchanger 1 set

Cooling Capacity: 150W/k Power Supply: -DC48V



Fans 2 sets

220VAC



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 5



11. Factory Introduction



Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 10 Years



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 6



12. Other Outdoor Telecom Cabinet Pictures:



IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger 7



FAQ

Q1: Are you a manufacturer?
A: Yes, we are an experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
