RAL7035 IP55 Outdoor Rack Cabinet Galvanized Steel Powder Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7575175-048-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| External Size: | 750×750×1750mm(W×D×H) | Internal Space:: | 650×650×1450mm(W×D×H) |
|---|---|---|---|
| 19”rack: | 32U | Material: | Galvanized Steel |
| Lock: | Anti-theft Three Point Lock | Color: | Grey RAL7035 |
| High Light: | Powder Coating Outdoor Rack Cabinet,RAL7035 Outdoor Rack Cabinet,RAL7035 weatherproof rack enclosure |
||
Product Description
RAL7035 IP55 Outdoor Rack Cabinet Galvanized Steel Powder Coating
1. Waterproof Outdoor Telecom Cabinet
We offer an extensive range of products including telecom outdoor cabinet, telecom indoor cabinet, residential and commercial enclosure, electronic enclosures, electrical enclosure, industrial automation enclosure, and hybrid battery enclosures. The cabinets can be equipped with DC Air-conditioners, DC Heat Exchangers, Inverters and much more that is suitable for its environment.
Standard special anti-corrosion treatment with extra-long warranty.
2. Selling Points and Feature Of IP55 Waterproof Outdoor Telecom Cabinet
● Outdoor powder coating
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlets at cabinet bottom
● Include grounding bar
● Include door stopper
● Base height: 200mm or customerized
● Waterproof, dustproof
● Anti-corrosion
● Floor mounted
● Equipped with cable manager
● Cable inlets at the bottom of cabinet
3. Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7575175-048-2 |
| Size |
External Size: 750×750×1750mm(W×D×H) Internal Space: 650×650×1450mm(W×D×H) 19” 32U |
|
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel | |
| Structure |
(1) One front door and one rear door (2) Anti-theft three point lock, support padlock (3) Door stopper is installed for keep door at an angel when door is open (4) Door with good sealing, waterproof and dust-proof (5) Include standard 32U 19“ rack inside the cabinet, high compatibility. (6) Equipped with cable manager (7) Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Powder coating | |
| Color | Grey RAL7035 | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Air Conditioner |
Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz On front door |
| Heat Exchanger |
Cooling Capacity: 150W/k Power Supply: -DC48V On rear door |
|
| Fan | Two AC220V fans with one temperature adjustable controller |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension 750×750×1750mm(W×D×H) (2) One compartment: including 32U 19” rack. (3) With one front door and one rear door, with three point lock for outdoor cabinet. (4) Material: galvanized steel (5) Floor installed. |
| 2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz |
| 3 | Heat Exchanger |
Cooling Capacity: 150W/k Power Supply: -DC48V |
||
| 4 | Fan | 2 | Set | 220VAC |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | 220VAC |
| 7 |
Environment Monitoring System |
1 | Set |
1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, 1× tilt vibration sensor |
| 8 | Power Distribution Unit |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. |
||
| 9 | Package | 1 | Set |
Wooden Case |

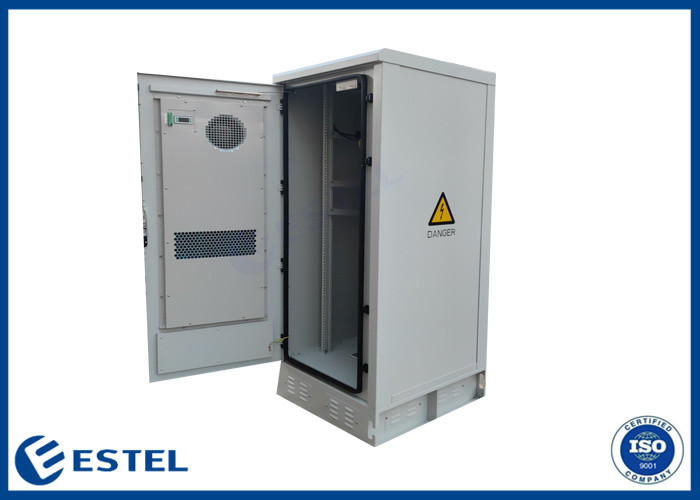

5. IP55 Waterproof Outdoor Telecom Cabinet Picture
6. Environment Monitoring System
Environment monitoring unit,19”, 1U, 220VAC, SNMP communication
1× smoke sensor,
1× water sensor,
1× temperature & humidity sensor,
2× door sensor
1× tilt vibration sensor
7. Cooling System
Air Conditioner 1 set Cooling Capacity: 1500W Power Supply: 220VAC, 50Hz
Heat Exchanger 1 set Cooling Capacity: 150W/k Power Supply: -DC48V
Fans 2 sets 220VAC
8. Wooden Package
FAQ
Q1: Are you a manufacturer?
A: Yes, we are an experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
