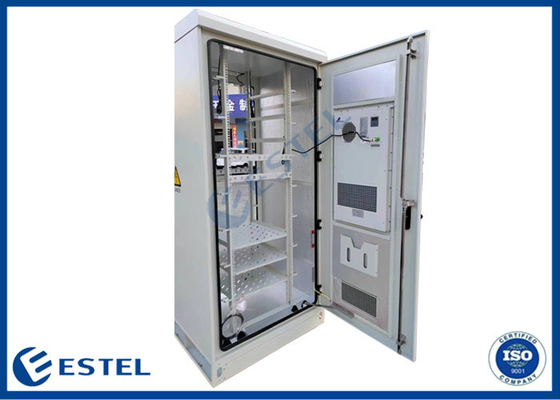

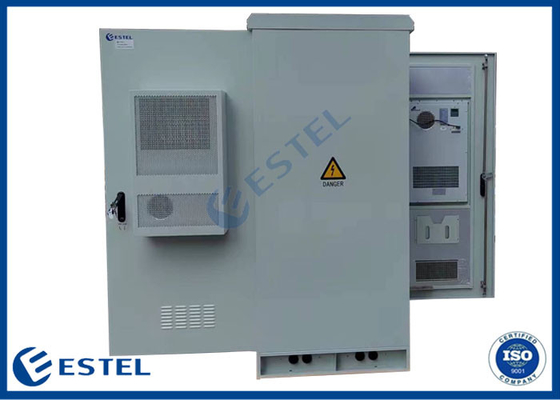

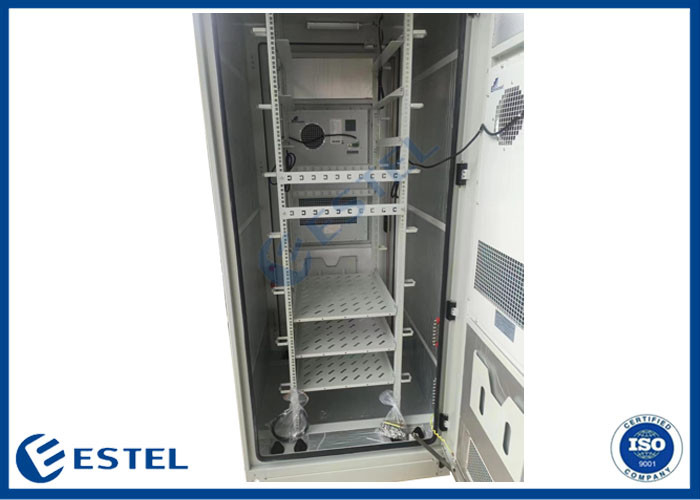

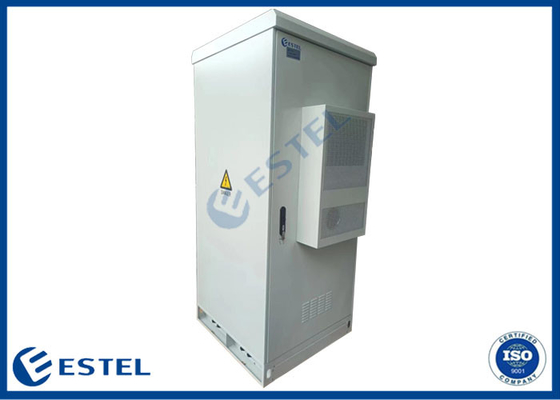

Integrated Outdoor Electrical Cabinet With 2 Doors And Environment Monitoring Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET9090210-40U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Cooling: | 1500W Air Conditioners | Illumination: | 48V LED Lamp |
|---|---|---|---|
| Full Protection: | Door Sensor , Water Sensor, Temperature And Humidity Sensor, Smoke Sensor | Ingress Protection: | IP55 |
| Material: | Galvanized Steel, 1.2 Mm Thickness, Single Wall With Insulation | One Compartment: | Including 19” Rack |
| High Light: | Integrated Outdoor Electrical Cabinet,IP55 Outdoor Electrical Cabinet,Outdoor Electrical Cabinets And Enclosures |
||
Product Description
Outdoor Integrated Electrical Cabinet With 2 Doors And Environment Monitoring Unit
Introducing the Outdoor Integrated Electrical Cabinet With 2 Doors And Environment Monitoring Unit
The Outdoor Integrated Electrical Cabinet With 2 Doors sets the standard for professional-grade outdoor enclosures, providing exceptional features and unrivaled equipment protection. Meticulously designed to withstand even the harshest outdoor environments, this cabinet ensures the utmost safety and integrity of your valuable equipment.
Outdoor Integrated Electrical Cabinet Technical Parameters
| Item | Technical Parameter | |
| Cabinet | Model | ET111722909021040 |
| Protection Level | IP55 | |
| External Dimension | 2100×900×900mm ( can be customized) | |
| Internal Dimension | 19 inch rail,40U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | PEF (optional) | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Options | AC air conditioner |
| Cooling Capacity | 1500W | |
| Input Voltage | 220VAC 50HZ | |
| Communication | RS485 | |
| Sensors | Door sensor , water sensor, temperature and humidity sensor, smoke sensor(optional) | |
| Environment Monitoring Unit |
19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
|
| Others | LED lamp for illumination | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Premium Protection:
With an outstanding IP55 protection rating, the ProGuard Outdoor Cabinet offers superior defense against dust, water, and other environmental elements. Rest assured that your equipment remains fully operational and shielded from any potential damage caused by external factors.
Enhanced Security:
We prioritize the security of your equipment. The ProGuard Outdoor Cabinet is equipped with advanced anti-theft measures to safeguard against unauthorized access. Its reinforced door, robust inner hinges, and three-point lock system provide an impenetrable barrier against potential intruders. For added security, additional padlocks can be integrated upon request.
Efficient Cooling System:
Maintaining optimal operating temperatures is paramount for the performance and longevity of your equipment. The ProGuard Outdoor Cabinet features an innovative cooling system integrated into the cabinet structure. This ensures efficient heat dissipation and facilitates seamless maintenance, cleaning, and component replacement. Experience hassle-free cooling management while maximizing the lifespan of your equipment.
Comprehensive Protection:
We understand the importance of comprehensive equipment protection. That's why the ProGuard Outdoor Cabinet is equipped with a range of intelligent sensors, including door sensors, smoke sensors, water sensors, and temperature and humidity sensors. These advanced sensors provide real-time monitoring and timely alerts, enabling proactive measures to prevent potential threats and equipment malfunctions.
Remote Management Capabilities:
Effortlessly manage and monitor your equipment from anywhere with the ProGuard Outdoor Cabinet's remote management capabilities. This feature enables remote access and control, optimizing security and minimizing operational costs. Stay connected and in control, ensuring the seamless operation of your equipment at all times.
Versatile Applications:
The ProGuard Outdoor Cabinet is the ideal solution for a wide range of applications. It is extensively used in telecom operators' mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police systems, communication base stations, outdoor air detection stations, solar control cabinets, and more. Whatever your specific application may be, the ProGuard Outdoor Cabinet delivers reliable and secure equipment housing.
Invest in Dependability:
The ProGuard Outdoor Cabinet is a long-term investment that guarantees peace of mind. With minimal maintenance requirements and a lifespan exceeding 10 years, this outdoor cabinet offers exceptional durability and reliability. Furthermore, it is environmentally friendly, compliant with industry standards, ensuring both equipment protection and ecological responsibility.
Choose the ProGuard Outdoor Cabinet for unparalleled professionalism, uncompromising protection, and reliable performance. Contact us today to discover more about our superior outdoor enclosure solutions.
