16U Outdoor Telecom Enclosure Weatherproof Electrical Support For Floor Mounted
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7080135A-16U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Dimension: | W×D×H 700×800×1350mm | Cooling System: | Air Conditioner 500W |
|---|---|---|---|
| 19” Space: | 16U | Color: | RAL7035 Grey |
| Lock: | Anti-theft Three Point Lock | Installation Method: | Floor Mount |
| Highlight: | 16u Outdoor Telecom Enclosure,Weatherproof Outdoor Telecom Enclosure,Outdoor Weatherproof Electrical Enclosures |
||
Product Description
16U Outdoor Telecom Enclosure Weatherproof Electrical Support for floor mounted
1. Weatherproof 19 Inch Rack Outdoor Telecom Cabinet For Floor Mounted
- Protection Level: IP55 ,Waterproof,dust proof.
-The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- The cabinet cooling uses air conditioner
- Including 220VAC illumination lamp.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
- The cabinet includes 19” standard installation rack.
2. Weatherproof Outdoor Telecom Cabinet Application Area
· Satellite Communication
· Wireless Backhaul
· Cable Television
· Navigation & Positioning
· Military Installation
· Port Security
3. Technical Data Sheet
| Model | ET7080135A-16U |
| Dimension | W×D×H 700×800×1350mm |
| 19” space | 16U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | Galvanized steel; single wall with thermal insulation |
| Color | RAL7035 grey |
| Installation method | Floor mount |
|
Cooling |
Air conditioner Power supply: AC220V 50Hz; Cooling Capacity: 500W |
| Ventilation system | Two AC220V fans with one temperature controller |
| Illumination | AC220V LED lamp |
| LED Lamp Switch | Used for controlling led lamp on/ off |
| Ingress Protection | IP55 |
| Temperature | Working temperature:-40°C～+75°C |
| Storage Temperature:-50°C～+70°C | |
| Transport Temperature:-50°C～+70°C |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:H×W×D 700× 800x1350mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
| 3 | Fan | 2 | Set | 220VAC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 | Package | 1 | Set | Wooden Case |

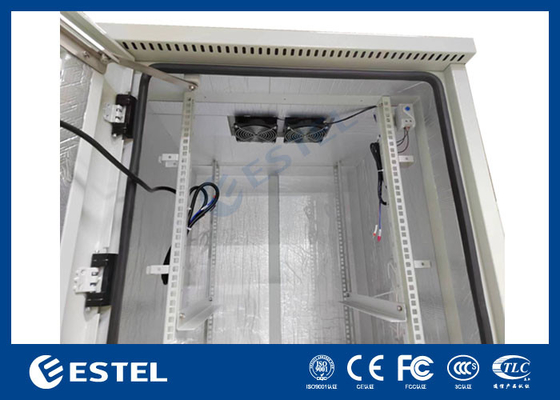

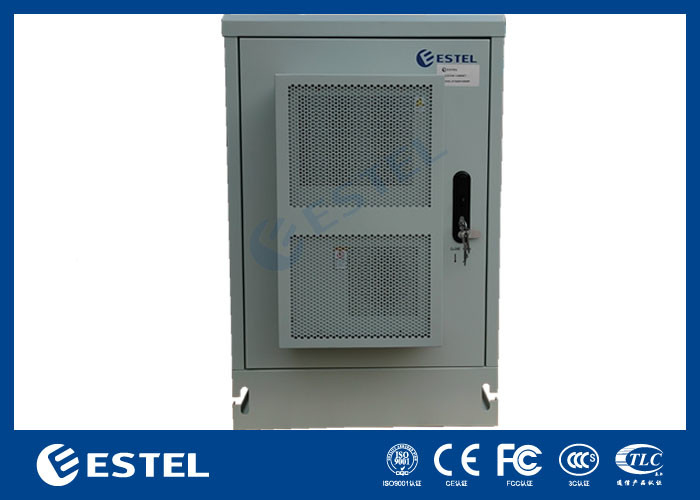

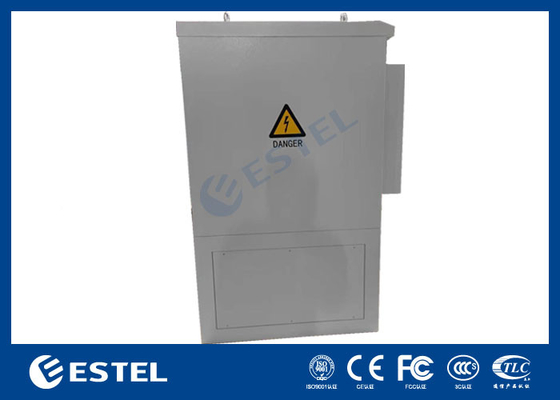

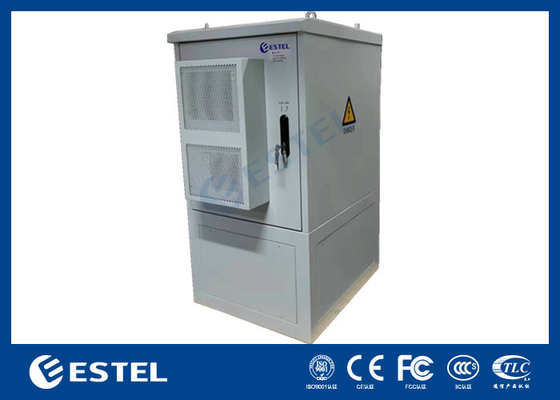

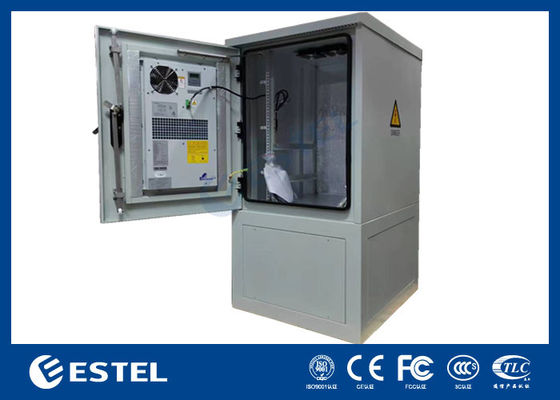

5. Cabinet Picture
6. Cabinet Description
6.1 Cabinet Material
The cabinet is made of galvanized steel, with single wall and the cabinet is assembled type.
6.2 Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is three point lock, supporting padlock.
7. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
8. Packing
