20U Capacity Outdoor Telecom Enclosure Galvanized Steel Single Wall With Heat Insulation For Pole Mounted
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET6565120A-20U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Material: | Galvanized Steel | Installation Method: | Floor Mount |
|---|---|---|---|
| Air Conditioner: | AC220V 50Hz | Ventilation System: | Two AC220V Fans With One Temperature Controller |
| Ingress Protection: | IP55 | LED Lamp: | 220V AC |
| High Light: | Pole Mounted Outdoor Telecom Enclosure,20U Outdoor Telecom Enclosure,Galvanized Steel Outdoor Telecom Enclosure |
||
Product Description
IP65 19 Inch Weatherproof Network Enclosure Outdoor Telecom Cabinet
1. IP65 Weatherproof Outdoor Telecom Cabinet Description
The equipment cabinet is designed to house a variety of telecommunication equipment with 19" rack, Estel cabinet offers added resistance to directed water spray and corrosion, as well as protection against finer dust particles.. The material can be made from galvanized steel, aluminum or stainless steel according to different demand. Air conditioner(options: Heat exchanger/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of equipment.
2. Weatherproof Outdoor Telecom Enclosure ET9090210C-20U Features
- Equipment Mounting Cabinets are supplied with our four post 19″ rack mount frame
- offering up to 20U capacity and includes integral cable management features in order to help keep cabling contained.
- Galvanized steel,single wall with heat insulation
- Anti-theft three point lock
- Including illumination lamp.
- Support custom-made
3. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model |
ET6565120A-20U |
| Protection Level |
IP65 |
|
| External Dimension |
W650mm×D650mm×H1200mm (can be customized) |
|
| Internal Space |
20U 19 inch rack |
|
| Material |
Galvanized steel,1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation |
20mm PEF |
|
| Coating |
Polyester powder coating |
|
| Color |
RAL7035 |
|
| Lock |
Anti-theft three-point locking system(support padlock) |
|
| Hinge |
Hidden inner hinge |
|
| Installation Options |
Pole mounted |
|
| Cable Routing |
Cable in and out from the bottom of cabinet |
|
| Maintenance |
One front door, front maintenance |
|
| Accessories |
Grounding bar, door limit, management coil |
|
| Cooling | Option |
DC air conditioner |
| Cooling Capacity |
1500W |
|
| Input Voltage |
110VAC 60HZ |
|
| Communicaiton |
RS485 communication |
|
| Sensors |
1× temperature&humidity sensor 2× door sensor |
|
|
Others |
One 48VDC LED lamp for illumination, with lamp switch |
|
|
Environment |
Working Temperature |
-40℃ ~+55℃ (+Solar Radiation) |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Working Humidity |
5%~95%(No condensation) |
|
|
Working Altitude |
0~4000 meters |
|

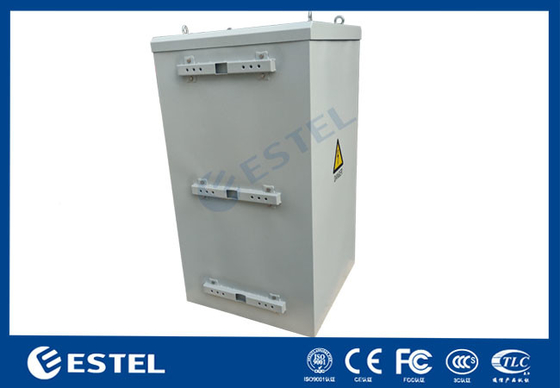

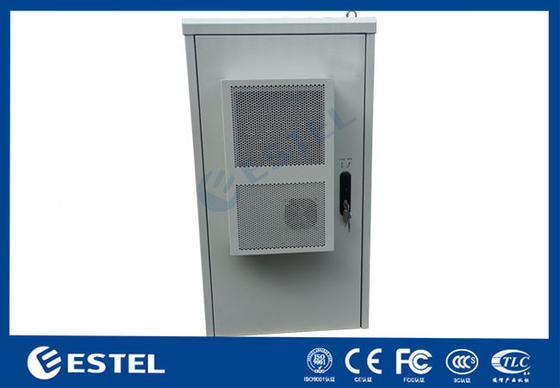

4. Outdoor Network Enclosure showing

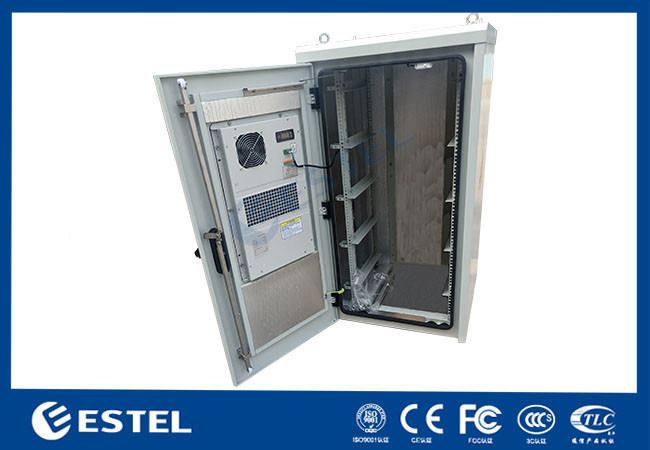

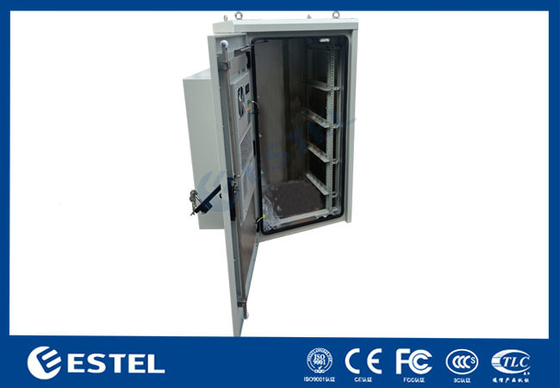

5. Inside Mounting Racks Pictures
6. Production Pictures
7. Packing and Shipping
Generally our products are pakced with plywood case to protection the cabinet very well, inner will use the foam for anti-scratch. Our products can be shipped all over the world
