32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner

32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner

Product Details:

Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: IP55
Model Number: ET7575175-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: wooden case with pallets
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 2000
Get Best Price Contact Now

Detail Information

Internal Space: 32U Material: Galvanized Steel
Cable Inlet: Bottom Of The Cabinet Cooling: Fans
Illumination: LED Light Original: China
High Light:

32U Outdoor 19 Inch Rack

,

1500W Air Conditioner Telecom Cabinet

,

Telecom Cabinet With PDU

Product Description

32U Outdoor 19 Inch Rack Cabine Telecom Cabinet With PDU And 1500W Air Conditioner





1. 32U Outdoor 19 Inch Rack Cabine Telecom Cabinet Introduction



The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.



2. 32U Outdoor 19 Inch Rack Cabine Telecom Cabinet Features

-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.

-Made of heavy gauge galvanized material.

-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

-Standard 19 inch mounting posts.

-Doors secured with steel dead locking system lock (support PADLOCK)

-It is installed in the ground root or above ground column base system by "direct burying"

-Cable entry is via the base as standard with side or roof entry available upon request.


3. 32U Outdoor 19 Inch Rack Cabine Telecom Cabinet Instructions

For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.



This battery cabinet is 1750mm High and750mm Wide and 750mmDeep. This cabinet is the ultimate choice for outdoor racking requirements.



4. Table 1 Standard Compliance



Standard Description
GB/T 17626.7-1998 Electromagnetic compatibility
GB4706.1 Safety of household appliance and electrical appliance with similar use.
GB4798.1 Environmental conditions existing in the application for electric and electronic products - storage
GB4798.2 Environmental conditions existing in the application for electric and electronic products - transportation
GB4798.3 Environmental conditions existing in the application for electric and electronic products - usage







5. 32U Outdoor 19 Inch Rack Cabine Telecom Cabinet Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET7575175-EQ
Protection Level IP55
External Dimension H1750mm×W750mm×D750mm ( can be customized)
Internal Dimension 19 inch rail,32U
Material Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm
Insulation PEF (optional)
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted,Roof mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door, front maintenance
Cooling Options AC air conditioner Fan
Cooling Capacity 1500W 180CFM
Input Voltage 220VAC 50HZ 48VDC
Communication RS485 /
Temperature Controller 48V fan temperature controller
Power Distribution Unit B Grade lightning Proof
AC Intput 63A/2P ×1(optional)
AC Output 16A/1P×4 (optional)
DC Output 16A/1P×4. (optional)
Sensors 1 x smoke sensing,
1 x water sensor,
1 x temperature and humidity sensor,
1 x door sendor,
1 x vibration sensor.
Others 48VDC LED lamp for illumination
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters

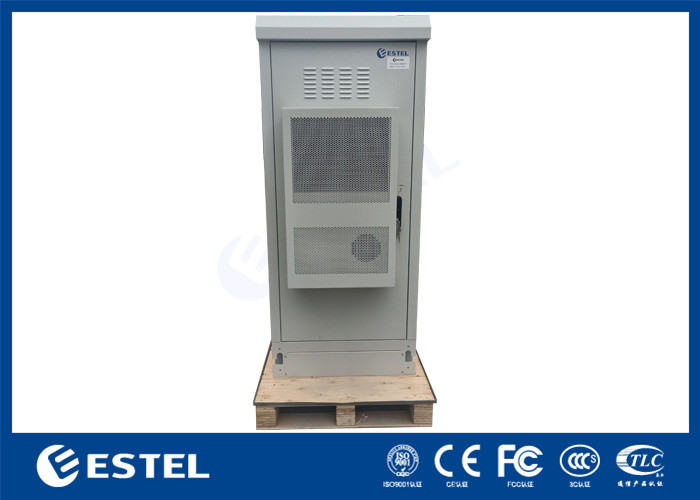

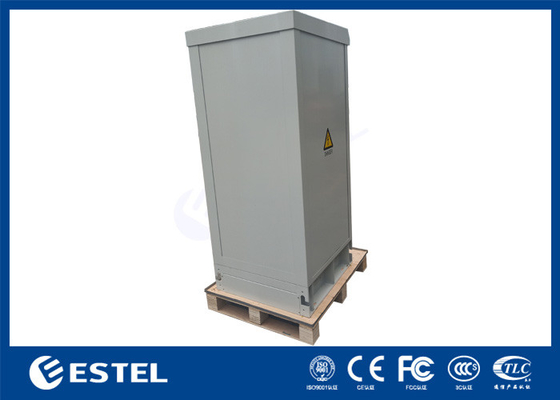

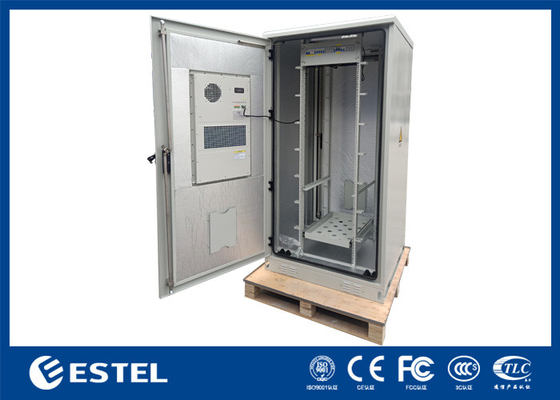

6. Cabinet Pictures



32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner 0



32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner 1



7. Air conditioner Datasheet:

1) Product introduction

2) The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.



3) The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.



4)

32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner 2



5) Air conditioner technology parameters

Item Name Unit Parameter
Dimension and installation Body outline dimension (height*width*depth ) mm 750*450*200

Outline dimension including

flange(height*width*depth )

mm 784*484*200
Weight Kg 24
Installation method Door Mounted
Installation method Outdoor
Environment and protection Working environment temperature -40 to +55
Noise dB(A) 65
Life expectancy Years >10
IP grade IP55
Refrigerant R134a
ROHS certification yes
Performance Input voltage range 220±15%VAC~50Hz
Refrigerating capacity(L35/L35) W 1500
Rated Refrigerating input power(L35/L35) W 580
Rated Refrigerating current (L35/L35) A 2.6
Maximum Refrigerating current A 4.6
Heat capacity(optional) W 1000
Air Volume of Inner Circulation m3/h 320






8.Packing and Shipping



Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.



32U Outdoor 19 Inch Rack Cabinet Telecom Cabinet With PDU And 1500W Air Conditioner 3
