Floor Mounted Outdoor Telecom Cabinet With 20U 19 Inch Rack 2 Layers Of Battery Rack

Floor Mounted Outdoor Telecom Cabinet With 20U 19 Inch Rack 2 Layers Of Battery Rack

Product Details:

Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: IP55
Model Number: ET9090210C-20U

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: wooden case with pallets
Delivery Time: 35-45 days
Payment Terms: T/T, Western Union
Supply Ability: 3000
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel User Space: 20U 19inch Rack And 2 Layers Of Battery Rack
Heat Insulation: EPS Sandwich Board Door: One Front Door
Hinge: Inner Hinge Lock: Anti-theft Three-point Lock, Support Padlock
Highlight:

2 Layers Outdoor Telecom Cabinet

,

20U Outdoor Telecom Cabinet

,

19 Inch Outdoor Telecom Cabinet

Product Description

Floor Mounted Outdoor Cabinet With 20U 19 Inch Rack 2 Layers Of Battery Rack



1. Floor Mounted Outdoor Cabinet Features



Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.

• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.

• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.



2. Floor Mounted Outdoor Cabinet Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 900×900×2100mm
Layout 1 compartment
Equipment Installation Method 19” rack, 20U,the bottom is 2 layers Battery rack
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, double wall thickness 1.2mm and 1.0mm
Heat Insulation EPS sandwich board
Ingress Protection IP55
Temperature Control Cooling Heat Exchanger:48VDC 80W/K*1 Fan:12038 48VDC*2
Power Distribution Unit AC Imput: 63A/2P ×1
AC Output: 16A/1P×4
DC Output: 16A/1P×4
Sensors Door sensor, water sensor, temperature and humidity sensor, smoke sensor

Environment

Monitoring Unit

19 inch installation, 1U high, 220VAC input voltage, communication port: SNMP
Lighting LED lamp
Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 × (1±5%) W/m2

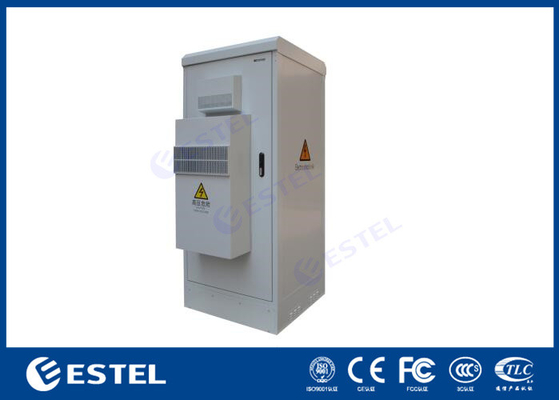

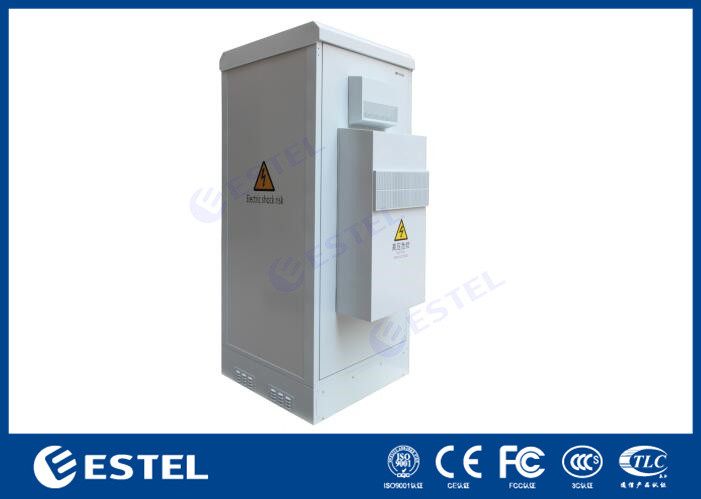

3. Floor Mounted Outdoor Cabinet Pictures



Floor Mounted Outdoor Telecom Cabinet With 20U 19 Inch Rack 2 Layers Of Battery Rack 0





4.IP55/IP65



IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available





5.Packing and Delivery



(1)Packaging:Wooden case with pallets



(2) Delivery:

  • By Express: Door to door, very convenient, don't need to clearance or pick-up
  • By Air: Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
  • By Sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port
