One Front Door IP55 Outdoor Cabinet With 16U User Space Cooling With Air Conditioner
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | ESTEL |
| Certification: | IP55 |
| Model Number: | ET6565100-16U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case with pallets |
| Delivery Time: | 35-45 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 |
|
Detail Information |
|||
| Material: | Galvanized Steel | User Space: | 16U |
|---|---|---|---|
| Heat Insulation: | EPS Sandwich Board | Door: | One Front Door |
| Hinge: | Inner Hinge | Lock: | Anti-theft Three-point Lock, Support Padlock |
| High Light: | Front Door IP55 Outdoor Cabinet,IP55 Outdoor Cabinet With Air Conditioner,16U IP55 Outdoor Cabinet |
||
Product Description
IP55 Outdoor Cabinet With 16U User Space Cooling With Air Conditioner
1.Advantages of telecom cabinet:
- Vandal-proof:
Highly protected case, double walls, each wall thickness 1.5 mm, safe-type locks, or electromechanical lock (remote control of the openings).
The cabinet case is without any external fastenings: hidden door hinges, internal fastening of the air conditioner case and socle, the hidden connection of a diesel generator.
Critical points are protected with a metal 10 mm bar.
- Energy efficiency:
The Outdoor cabinet is equipped with a climate system : air conditioner with low energy consumption, free cooling system, air ventilation.
- Environmental protection:
Protection level is IP65, anti-corrosion powder-polymer coating.
- Additional characteristics:
Model range: from 15 U to 44 U;
Needed climate systems can be installed: AC / DC air conditioner, fan heaters, and ventilation system;
Possibility to increase antivandal protection: anti-vandal belt on the door, an electromechanical lock, double external lock, separate internal lock for the battery compartment and more.
We supply turnkey solutions: outdoor cabinets with pre-installed power systems, electrical distribution, and a set of sensors.
The Cabinet technical characteristics (specification, climate unit, sensors) can be adapted to individual customer requirements.
2. IP55 Outdoor Cabinet With 16U User Space Technical Parameters
- Model No:ET6565100-16U
- Protection Level:IP55 ,Waterproof,dust proof.
- External dimension:H1000mm×W650mm×D650mm (can be customized)
- Internal Dimension:19 inch rail, 16U
- Material:Galvanized steel,single wall, 1.2mm thickness,
- Insulation:PEF (optional)
- Coating:Polyester powder coating
- Color:RAL7035(can be customized)
- Cooling:500W 220VAC 50HZ
- Lock:Anti-theft three-point locking system,support padlock
- Hinge:Inner hinge
- Lamp:220VAC LED Lamp
- Installation Options:Floor mounted
- Cable Routing: Cable in and out from the bottom of cabinet
- Maintenance:One front door, front maintenance

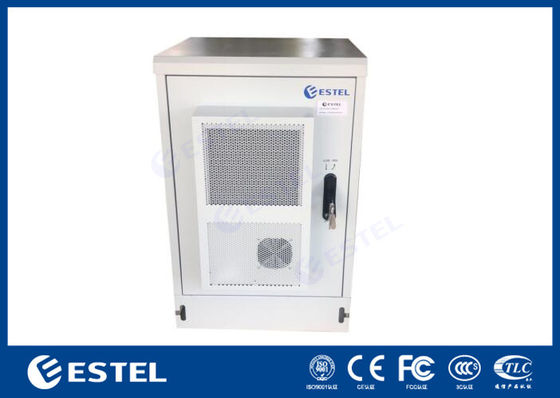

3. IP55 Outdoor Cabinet With 16U User Space Cabinet Pictures
4.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are availabl
5. Packing and Delivery
(1)Packaging: Wooden case then onto pallet
(2) Delivery:
- By Express:Door to door, very convenient, don't need to clearance or pick-up
- By Air:Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
- By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port
