IP55 Outdoor Cabinet Floor Mounted With 20U User Space With Fans On Top

IP55 Outdoor Cabinet Floor Mounted With 20U User Space With Fans On Top

Product Details:

Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: IP55
Model Number: ET6060120-20U

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: wooden case with pallets
Delivery Time: 35-45 days
Payment Terms: T/T, Western Union
Supply Ability: 3000
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel User Space: 20U
Cooling: Fans Door: One Front Door
Hinge: Inner Hinge Lock: Anti-theft Three-point Lock, Support Padlock
High Light:

IP55 Outdoor Cabinet With Fans

,

Floor Mounted IP55 Outdoor Cabinet

,

20U IP55 Outdoor Cabinet

Product Description

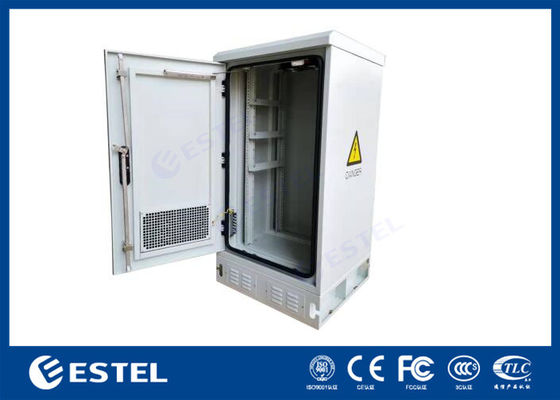

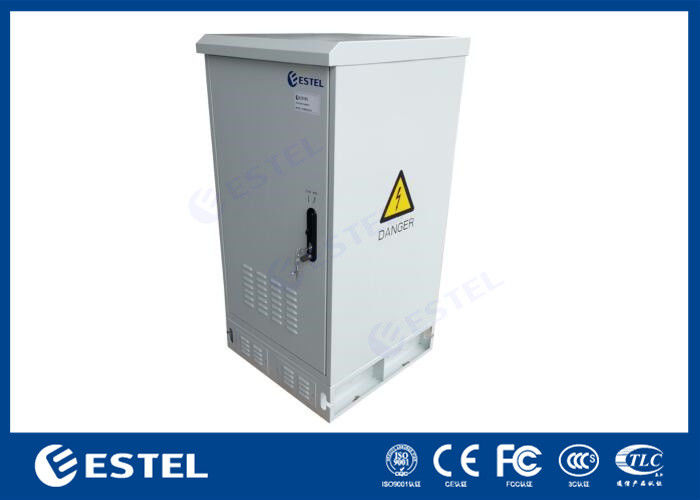

IP55 Outdoor Cabinet Floor Mounted With 20U User Space With Fans On Top

  • IP55 Outdoor Cabinet Floor Mounted With 20U User Space Basic info
  1. Model No:ET6060120-20U
  2. Protection Level:IP55 ,Waterproof,dust proof.
  3. External dimension:H1200mm×W600mm×D600mm (can be customized)
  4. Internal Dimension:19 inch rail, 20U
  5. Material:Galvanized steel, 1.2mm thickness, single wall.
  6. Insulation:PEF (optional)
  7. Coating:Polyester powder coating
  8. Color:RAL7035(can be customized)
  9. Lock:Anti-theft three-point locking system,supporting padlock
  10. Hinge:Inner hinge
  11. Installation Options:Floor mounted
  12. Cable Routing: Cable in and out from the bottom of cabinet
  13. Maintenance:One front door, front maintenance



  • IP55 Outdoor Cabinet Floor Mounted With 20U User Space Product Description

Estel Outdoor Telecommunication Cabinet with Air Conditioner is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.



  • IP55 Outdoor Cabinet Floor Mounted With 20U User Space Accessory List
Accessory List(options)
No ltem Specifications
1 Fan AC110/220V or DC 48V
2 Power Supply AC INPUT:32A/1P MCB or 63A/2P MCB
DC OUTPUT:16A/1P MCB
3 Environment Monitoring Unit 48VDC Communication port:RS485,TCP/IP SNMP optional
4 Door Sensor Monitor door open status inside cabinet and provide real time alarm
5 Water Sensor Monitor water status inside cabinet and provide real time alarm.
6 Tilt &Shock Sensor Monitor shock status inside cabinet and provide real time alarm.
7 Temperature &Humidity Sensor Monitor temperature and humidity inside cabinet and provide real time alarm.
8 Smoke Sensor Monitor smoke status inside cabinet and provide real time alarm
Cooling System(Optional)
No. Item Specifications
1 Air Conditioner AC220V/DC48V,Cooling Capacity 300w-5000w
2 Heat Exchanger AC220V/DC48V,Heat transfer 80w/k-200w/k
3 Thermoelectric Cooler (TEC) DC48V,Cooling capacity 200w,300w
4 Fan AC110/220V or DC 48V







  • Cabinet Diagram

IP55 Outdoor Cabinet Floor Mounted With 20U User Space With Fans On Top 0

  • Application

IP55 Outdoor Cabinet Floor Mounted With 20U User Space With Fans On Top 1



  • Packing

Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.



  • Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Delivery Time: 10-15 working days
Packaging Details: wooden case
Shipping: by sea, by air, by courier, by land, by train, etc.



  • FAQ

Q1: Are you a manufacturer?
AZE: Yes, we are a experienced manufacturer- professional customer support team, experienced R & D team and efficient production lines.

Q2: Do you have any MOQ limit for server rack/outdoor cabinet ?
AZE: 1pc for sample checking is available.

Q3: Can I get sample order?
AZE: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.

Q4: Are you able to customize products based on requirements?
AZE: Yes, we can provide OEM & ODM services.

Q5: How long is the product warranty ?
AZE: We guarantee all our products 12 months warranty without artificial damage

Q6: How do you ship the goods and how long it will take?
AZE: We will use UPS, FedEx, DHL or air freight for sample order, it will arrived within 7-14 days.
For the bulk order with container sea shippment , the time various for different shipping line

Q7: Can i visit your factory?
AZE: Welcome to visit us, please talk with your account manager to arrange your schedule.

Q8: What is your payment terms?
AZE: 50% T/T in advance, 50% balance before shipping.
