• 2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED
  • 2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED
  • 2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED
  • 2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED
2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED

2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET6580217-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, Western Union, T/T
Supply Ability: 2000 pcs/month
Get Best Price Contact Now

Detail Information

Material: 2.5mm Aluminum Installation Method: Floor Mount
Equipment Rack: 19 Inch Rack, 43U Parts: LED Lights With Switch
Ingress Protection: IP65 Shipping Port: Shenzhen
Highlight:

Outdoor Telecom Cabinet With LED

,

2.5mm Aluminum Outdoor Telecom Cabinet

,

43U Outdoor Telecom Cabinet

Product Description

2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED

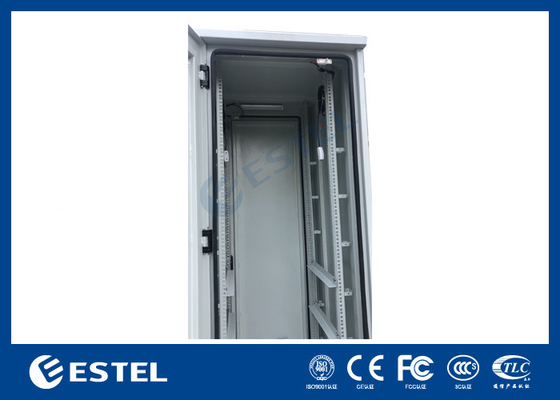

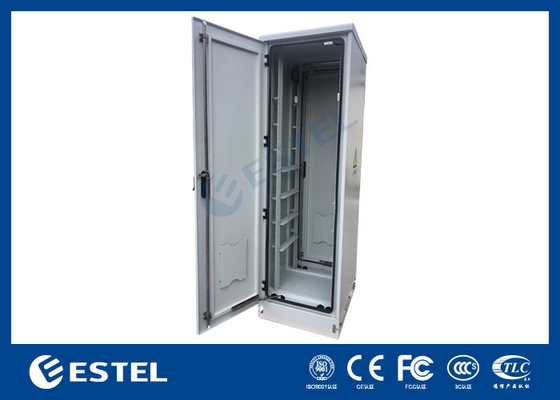

43U outdoor equipment cabinet. It adopts the front and back door opening mode, which makes the installation and maintenance of the equipment more convenient.

At the same time, the cabinet is made of 2.5mm aluminum, which is light and corrosion resistant. Its IP grade can reach IP65.



2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures Technical parameter



No. Description Specification
Specification of cabinet
1 Model ET6580217-EQ-2D
2 Cabinet Dimension W×D×H 650×800×2175mm
3 Available User Space 43U standard 19” rack
4 Door One front door and one back door
5 Lock Outdoor special anti-theft three point locking
6 Material Aluminum, single wall, 2.5mm thickness
7 Cabinet Installation method Floor mount
8 Cable Entry Located on the bottom
9 Lifting 4 ears on the cabinet base
10 Earthing Grounding copper bar
11 Working Temperature -40°C~+75°C
12 Protection Level IP65
13 Relative Humidity 5% ~ 100%
14 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
15 Solar Radiation Intensity 1120 ×(1±5%)W/m2
Other accessories
1 LED light AC220V 50Hz, with on/off button on the light
Packing
Wooden case W×D×H 750×960×2360mm




2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures Features



(1) The embedded structure door enhances the anti-theft effect.

(2) It is made of high corrosion resistant aluminum.

(3) Standard 19 inch rack.

(4) High protection grade IP65, waterproof and dustproof, effectively protect the equipment in the cabinet.

(5) The cabinet adopts three-point lock to prevent illegal entry.




2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures Applications

The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Special aluminum material, more suitable for use in the seaside and humid and salty areas.




2.5mm Aluminum Outdoor Telecom Cabinet Advantages:

  • Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
  • The cabinet structure have earthquake resistance function
  • Space layout is reasonable, greatly reducing the construction cost
  • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment



Cabinet Drawing



2.5mm Aluminum Outdoor Telecom Cabinet 43U Equipment Enclosures With LED 0





Packing and Shipping





Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
