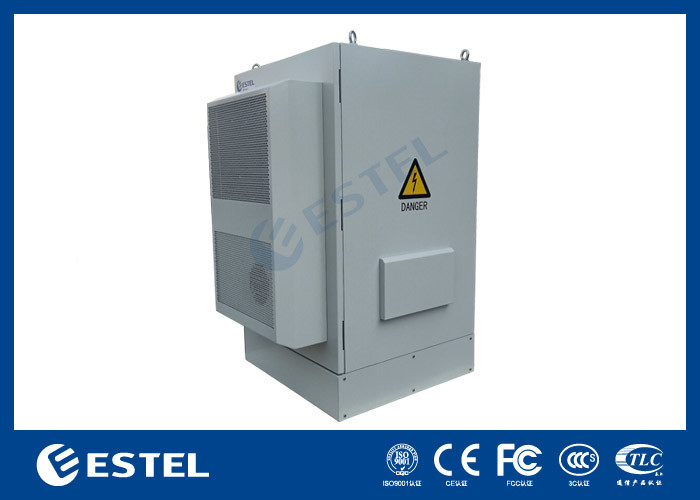

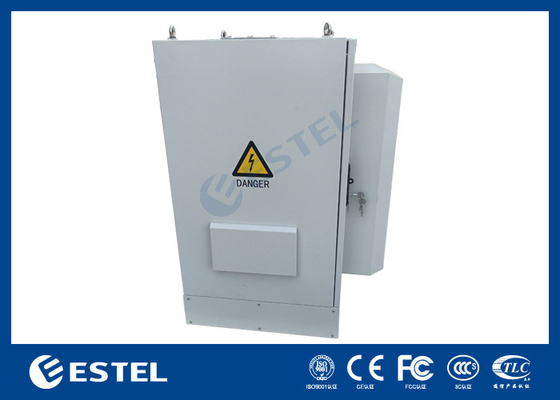

SGCC Double Walls Outdoor Telecom Cabinet With 48VDC Air Conditioner and Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET6565115-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 6000 pcs/month |
|
Detail Information |
|||
| Material: | Galvanized Steel, Single Wall With Heat Insulation | Fans: | 48VDC |
|---|---|---|---|
| Cooling: | 48VDC 2000W Air Conditioner | Parts: | LED Lights With Switch |
| Ingress Protection: | IP55 | Door: | 1 Front Door |
| Highlight: | Outdoor Telecom Cabinet With Fan,48VDC Outdoor Telecom Cabinet,SGCC Double Walls Outdoor Telecom Cabinet |
||
Product Description
SGCC Double Walls With 48VDC Air Conditioner And Fan Outdoor Telecom Cabinet
SGCC Double Walls With 48VDC Air Conditioner And Fan Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
SGCC Double Walls With 48VDC Air Conditioner And Fan Outdoor Telecom Cabinet Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: heat exchanger and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
SGCC Double Walls With 48VDC Air Conditioner And Fan Outdoor Telecom Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1150×650×650 mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 48VDC 2000W Air conditioner and fan |
| Lighting | LED lamp | DC48V |
| Temperature | Temperature | Working Temperature: -40°C ~ +70°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Cabinet Drawing
Cabinet Cooling System

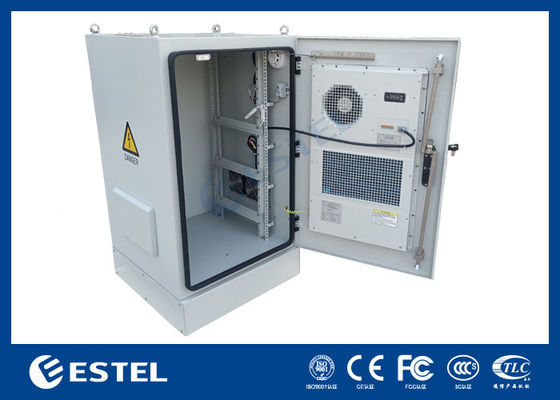

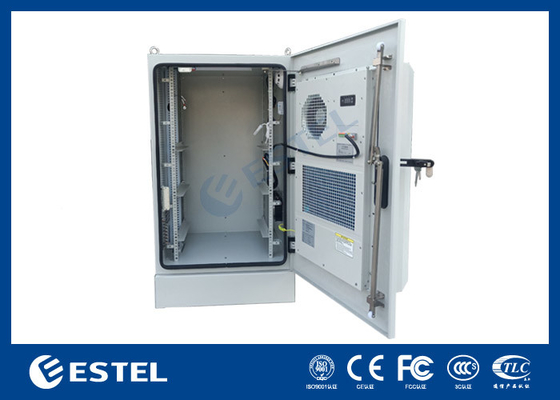

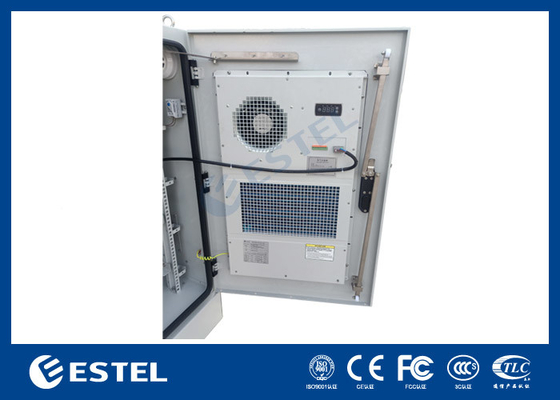

The cabinet has one air conditioner 48VDC 2000W cooling capacity installed on the fornt door.
Cabinet Package
Wooden case with pallets.
