Outdoor Floor Mounted Cabinet 19 Inch Rack 40U User Space With PDU

Outdoor Floor Mounted Cabinet 19 Inch Rack 40U User Space With PDU

Product Details:

Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: IP55
Model Number: ET101020A-33U

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: wooden case with pallets
Delivery Time: 35-45 days
Payment Terms: T/T, Western Union
Supply Ability: 3000
Get Best Price Contact Now

Detail Information

Cooling: Air Conditioner User Space: 40U
Sensors: Door Sensor, Temp. And Hum. Sensor Door: One Front Door
Hinge: Inner Hinge Lock: Anti-theft Three-point Lock
High Light:

40U Floor Mounted Cabinet

,

Floor Mounted Cabinet With PDU

,

Outdoor Floor Mounted Cabinet 19 Inch

Product Description

Floor Mounted Cabinet Outdoor 19 Inch Rack 40U User Space With PDU At Side



1.Floor Mounted Cabinet Outdoor 19 Inch Rack 40U Introduction



The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.





2.Floor Mounted Cabinet Outdoor 19 Inch Rack 40U Features



  • Compact and light double-walled design
  • Highest protection against corrosion
  • Features an integrated roof
  • Made of  steel, 1.2mm thickness, single wall.
  • Polyester powder coat with UV protection
  • PUR non-porous gasket—suitable for extreme temperatures
  • Fully welded design, supplied complete, no assembly required
  • Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated




3. Floor Mounted Cabinet Outdoor 19 Inch Rack 40U Instructions



This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate.

They are specifically designed for mounting onto a column.



4. Optional Accessories :



● Cooling solution: We adopt Air conditioner to control temperature ensuring the best working condition inside the cabinet.

● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance

● Sensors: can monitor internal temperature,humidity,fire/smoke,door opened state.

● Light: LED tube light is for lighting insde and fixed on the top cover.

● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.

● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.





5. Floor Mounted Cabinet Outdoor 19 Inch Rack 40U Technical Parameters



Configuration

Item Technical Parameter
Cabinet Model ET807521A-40U
Protection Level IP55
External Dimension H2100mm×W800mm×D750mm
Internal Dimension 19 inch rail, 40U
Material

Galvanized steel, 1.2mm + 1.0mm thickness, double walls.

Thickness of bearing parts: 2.0mm

Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door, front maintenance
Cooling Options AC air conditioner Heat exchanger Fans-6 pcs
Cooling Capacity 2000W 150W/K
Input Voltage 220VAC 50HZ 48VDC 48VDC
Communication RS485 RS485 With temp. controller
Power Distribution Unit Voltage 200VAC~240VAC(optional)
Input

1× 3P 40A, 1x 3P 25A,1x 1P 10A(LED),1x 1P 16A

SPD 40KA (optional), terminal block, H socket.

Output Leakage protection circuit breaker:1x 16A
Sensors Door sensor , temperature and humidity sensor
Side box

Generator socket, 32A 425V, IP45,

terminal blocks-6 pins x 32A, 9 pin (for LED),

3 indicator lights, cable inlet at the bottom.

Others 48VDC LED lamp for illumination with switch
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters





Cabinet 3D Diagram



Outdoor Floor Mounted Cabinet 19 Inch Rack 40U User Space With PDU 0

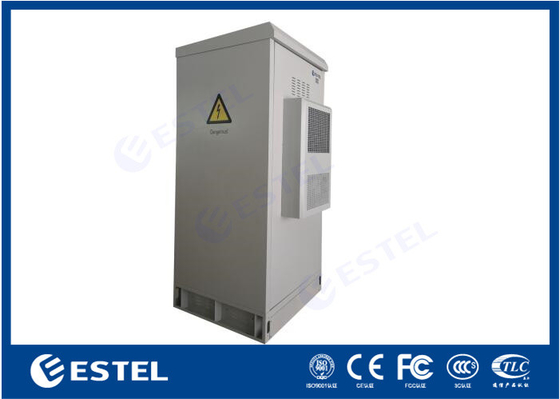

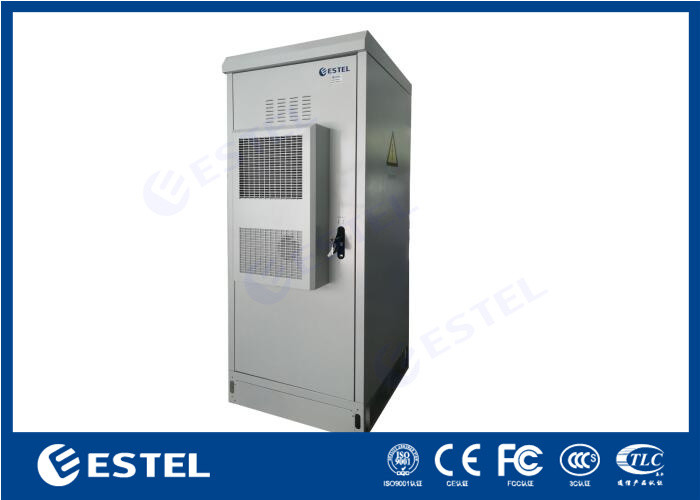

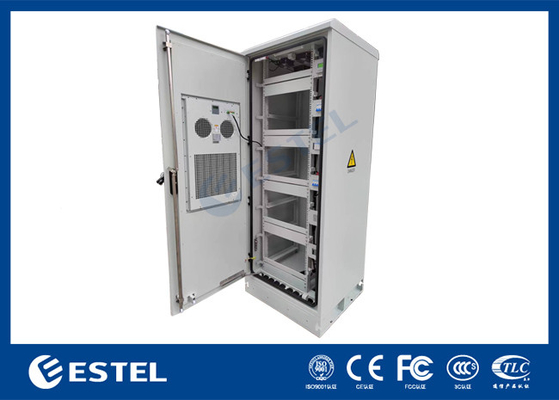

Cabinet pictures:



Outdoor Floor Mounted Cabinet 19 Inch Rack 40U User Space With PDU 1



6.Cabinet Mounting Type Options:

  • Wall mounting type
  • Pole mounting type
  • Floor standing by base
