Galvanized Steel 32U Outdoor Telecom Enclosure Equipped With 4 Fans Cooling
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET8080210-21U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Material: | Galvanized Steel | Lock: | Anti-theft Three-point Lock |
|---|---|---|---|
| Color: | RAL7035 Grey | Installation Method: | Floor Mount |
| User Space: | 32U | Ingress Protection: | IP65 |
| Highlight: | 4 Fans Outdoor Telecom Enclosure,32U Outdoor Telecom Enclosure,Galvanized Steel Outdoor Telecom Enclosure |
||
Product Description
Equipped With 4 Fans Cooling Galvanized Steel 32U Outdoor Telecom Enclosure
1. Equipped With 4 Fans Cooling Galvanized Steel 32U Outdoor Telecom Enclosure Overview
This series one compartment outdoor cabinet is a perfect combination of quality and styling that shields your system effectively and presents it in an attractive package of which you can be proud. They can protect equipment against things like dust, heat, water, or other environmental hazards.This outdoor telecom cabinet is made of high-quality galvanized steel,coated with anti-corrosive and anti-ultraviolet powder, and with IP55 protection grade.
2. Equipped With 4 Fans Cooling Galvanized Steel 32U Outdoor Telecom Enclosure Features
· High quality galvanized steel
· IP55 cabinet, waterproof, dustproof, single layer steel plate with thermal insulation
· Outdoor anti-corrosion polyester powder coating
· Anti-theft three-point outdoor cabinet lock, support padlock
· High performance fans for cooling
· Door stopper to hold door open at service
· Hidden hinge, inside screws, embedded door, enhance the theftproof
3. Equipped With 4 Fans Cooling Galvanized Steel 32U Outdoor Telecom Enclosure Technical Data Sheet
| Model | |

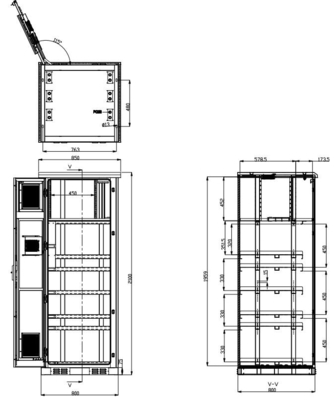

| Dimension | W×D×H 800×800×2100mm |
| 19” space | 32U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | Galvanized steel;
double wall,outer thickness 1.2mm;inner thickness1.0mm |
| Color | RAL7035 grey |
| Installation method | Floor mount |
| Cooling system | Four 48VDC fans with one temperature controller |
| Illumination |
48VDC LED lamp |
| LED Lamp Switch | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP65 |
4.Equipped With 4 Fans Cooling Galvanized Steel 32U Outdoor Telecom Enclosure Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension W×D×H 800×800×2100mm. (2) One compartment: including 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, double walls (5) Floor installed. |
| 2 | Fan | 4 | Set | 48VDC |
| 3 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 4 | LED Lamp | 1 | PC | 48VDC |
| 5 | Package | 1 | Set | Wooden Case |

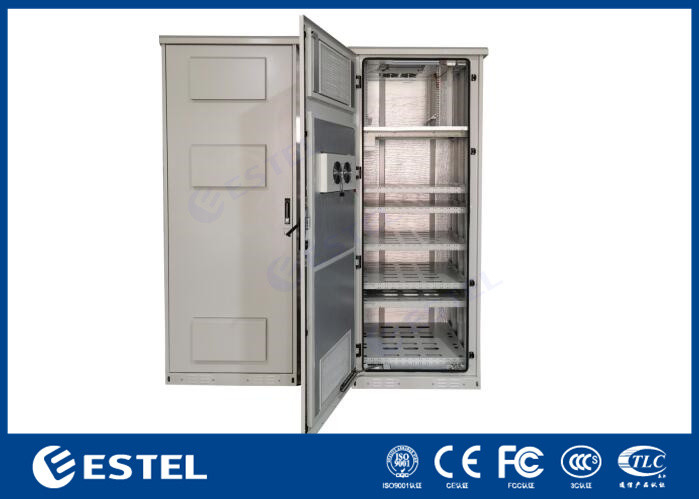

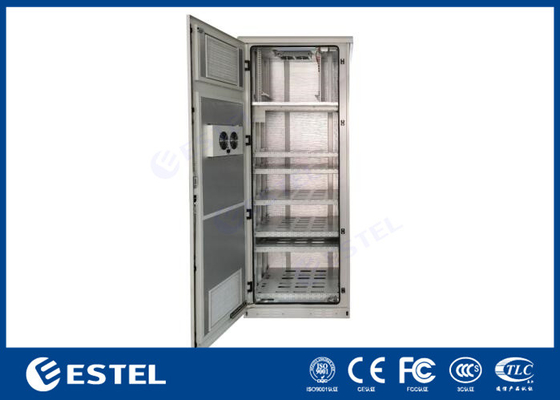

5.Cabinet Picture
6. Cabinet Quality Control Instruction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
7. Cooling System Pictures
The Cabinet use FOUR DC48V fans for cooling, 2 on the top of cabinet, 2 on the door.
8. Connection and Fastening
Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
Door hinges use inner hinge mode.
9. Cabinet Inlets
Feeder cable and other external cables all use bottom wiring method.
