Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET9090210-40U

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case with Pallets
Delivery Time: 3-4 weeks
Payment Terms: Western Union, T/T
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

DimensionW*D*H: 900*900*2100mm 19 Inch Rack: 40U, 1 Compartment
Material: Galvanized Steel Mounting Type: Floor Mounting Type
Cable Inlet: PG Glands Cooling: Air Conditioner
Lock: 3 Point Locking System Maintenance Method: Front Door Maintenance
High Light:

Outdoor Telecom Cabinet Cable Inlet

,

Outdoor Telecom Cabinet Air Conditioner

,

Outdoor Telecom Cabinet Front Door

Product Description

  PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner Front Door Maintenance



1. PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner Application



Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



2. Technical Parameters Of PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner



Item Type Technical Parameter
Structure Dimension

External Dimension: W*D*H 900*900*2100mm

Layout 1 compartment
Equipment Installation Method 19” rack, 40U
Door With one front door, and three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with insulation
Heat Insulation 20mm PEF
Ingress Protection IP55
Temperature Control Cooling Air conditioner
Lighting LED lamp LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 × (1±5%) W/m2



3. Features Of PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner



●Front door to access the inside equipment

●The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

●Cabinet cooling: air conditioner.

●The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.

●Include grounding bar.

● Anti corrosion powder coating

● High integration, compact structure, easy installation and migration on later stage

● Anti-theft lock, excellent keyhole protection device



4. PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner Accessories List



No. Item Quantity Unit Specs
1 Air Conditioner 1 Set Cooling capacity: 1500W, Power Supply: AC220V, 50Hz
2 Door Sensor 1 PC
3 LED Lamp 1 PC AC220V
4 Power Distribution Unit 1 Set

Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4;

DC Output: 16A/1P*4

Input Voltage: AC220V.

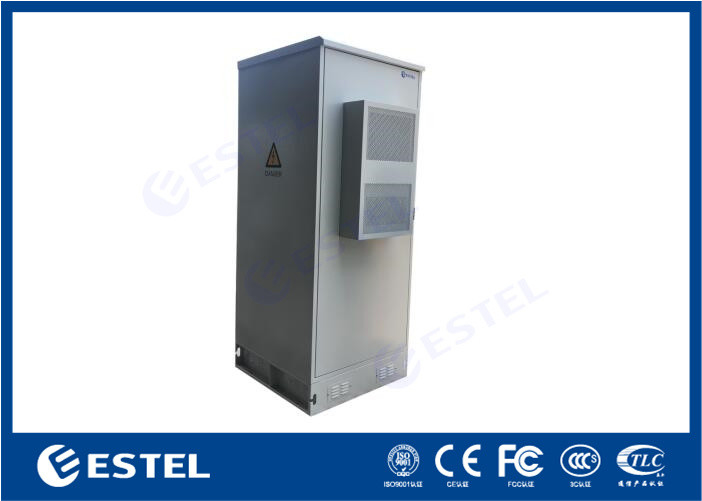

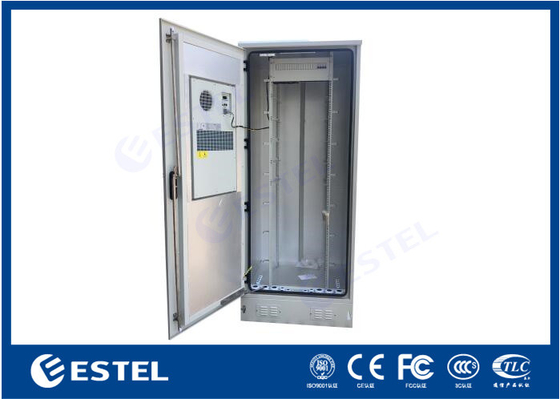

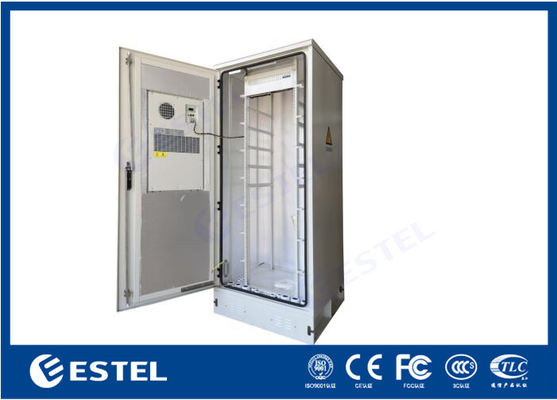

5. Cabinet Pictures



PG Gland Cable Inlet Outdoor Telecom Cabinet With Air Conditioner Front Door Maintenance 0









6. FAQ



Q1: Are you a manufacturer?
A: Yes, we are a manufacturer with over 13 years of experience, we had our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
