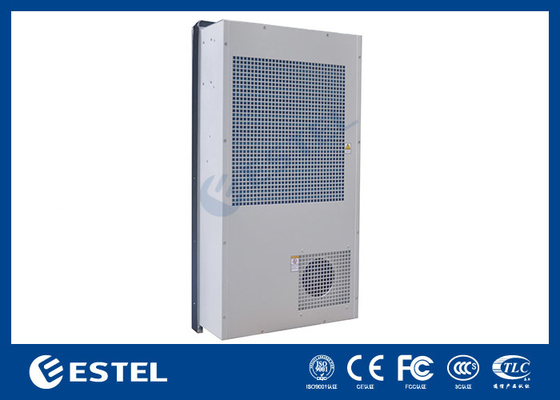

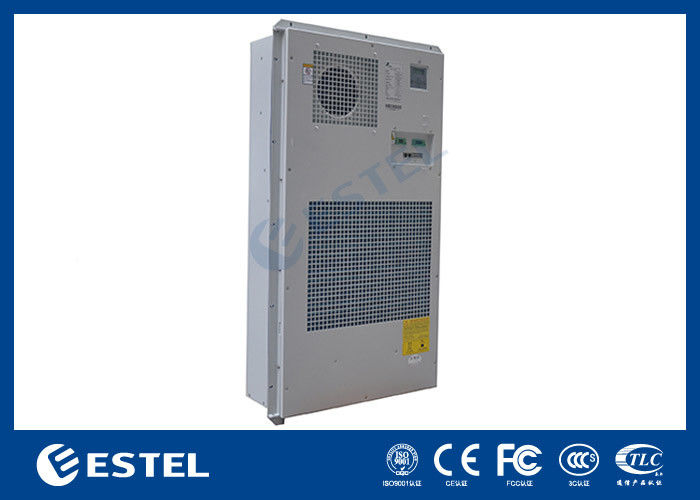

EHC1508 Door Mounted 180W/K Outdoor Enclosure Air Conditioner With Heat Exchanger
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC |
| Model Number: | EHC1508 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton + foam + wooden case |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 16,000 sets per month |
|
Detail Information |
|||
| Model Number: | EHC1508 | Mounting Method: | Door Mounted |
|---|---|---|---|
| Application: | Outdoor | Installation Mode: | Door Mounted |
| IP Grade: | IP55 | Dimension: | WDH: 1001×561×200mm |
| Weight: | 42kgs | Cooling Capacity: | 1500W |
| Heat Exchanger: | 180W/K | Heating Capacity: | Optional |
| Highlight: | Outdoor Enclosure Air Conditioner,Door Mounted Enclosure Air Conditioner,Enclosure Air Conditioner With Heat Exchanger |
||
Product Description
EHC1508 Door Mounted 180W/K For Outdoor Enclosure Air Conditioner With Heat Exchanger
1, EHC1508 Door Mounted 180W/K Heat Exchanger Features:
- Remote measuring, remote communication, remote control, which can realize multiple au-tomatic protection and comprehensive self-testing function;
- Strict process control and famous brand components to ensure high quality and reliability of this product;
- Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
- Power supply voltage range;
- LED display, all the settings can changed at the field;
- Strict process control and international brand parts deployed to ensure high quality and product;
- Dry contact alarm output, NO/NC optional;
- Anti-theft design, without the protection cover.
2, Outdoor Enclosure Air Conditioner With Heat Exchanger Datasheet:
| Parameter Model | EHC1508 | |
| Dimensions, Weight & Mount | ||
| External Dimensions (H x W x D) | mm | 945×505×200 |
| External Dimensions (H x W x D) With Flange | mm | 1001×561×200 |
| Weight | kg | 42 |
| Mounting Method | Door Mounted | |
| Application | Outdoor | |
| Environmental Protection & Performance | ||
| Working Temperature Range | ºC | -40 to +55 |
| Noise Level | dB(A) | 65 |
| IP Protection Level | IP 55 | |
| Refrigerant | R134a | |
| RoHS Compliant | Yes | |
| Cooling/Heating Capacity | ||
| Cooling Capacity@L35/L35 | W | 1500 |
| Heat Exchanger | W/K | 75 |
| Heating Capacity (Optional) | W | |
| Power Consumption | ||
| AC Power Consumption@L35/L35 | W | 510 |
| DC Power Consumption@L35/L35 | W | 200 |
| AC Current@L35/L35 | A | 2.40 |
| DC Current@L35/L35 | A | 4.30 |
| Airflow | ||
| Internal Airflow | m3/h | 400 |
| Power Supply | ||
| Power Supply range | -38~-58VDC, 220VAC ± 15% | |
| Rated operating voltage - Controller | VDC | -48 |
| Rated operating voltage - Fans | VDC | -48 |
| Rated operating voltage - Compressor | VAC | 220, 50/60Hz |
| Max. Current AC | A | 4.0 |
| Max. Current DC | A | 4.3 |
| Key Components | ||
| Controller | ESTEL | |
| Fans | Telecom Level | |
| Compressor | Telecom Level | |
| Heater | ||
3, Outdoor Enclosure Air Conditioner With Heat Exchanger Dimensions:
4, Door Mounted Air Conditioner With Heat Exchanger Introduction:
The EHC1508 is a compact, high efficient combo air conditioner. The design is
optimized for applications with limited space available, but where functionality and
performance still cannot be compromised
220VAC for air conditioner, -48VDC for heat exchanger
1500W cooling capacity@L35/L35
75W/k heat exchanger
Compact design
Door mounted – easy integration in outdoor cabinets and enclosures
Wide working temperature range: -40ºC to +55 ºC w/heater
