19inch 220VAC Telecom Rectifier With Monitoring Module

19inch 220VAC Telecom Rectifier With Monitoring Module

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: GPE4890J

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Get Best Price Contact Now

Detail Information

Input Voltage: 90~280Vac Output Volatge: -43.2~-57.6Vdc
Power Factor: >0.99 Work Temperature: -25°C~+55°C
High Light:

220VAC Telecom Rectifier

,

19inch Telecom Rectifier

,

19inch rectifier used in telecommunication

Product Description

19inch 220VAC Telecom Rectifier With Monitoring Module

19 inch 2U 48VDC 90A Telecom Power System Telecom Rectifier 220VAC Input With Monitoring Module



1. System Features

  • Adoption of active power factor compensation technology with factor >0.99

  • Wide operating range of AC input voltage: 90~280Vac

  • Operating temperature range: -25°C~+55°C

  • Zero current/voltage switching tech with high efficiency ≥91%

  • Perfect battery management, charge & discharge management, battery temperature compensation, low voltage protection, extend battery lifetime

  • The monitor has sleeping function, saving energy.

  • Input over/under voltage protection

  • Output over voltage protection

  • Output over current protection

  • Output short circuit protection

  • Embedded mounted



2.System Configuration



Input
Parameter Min. Typical Max. Unit Remark
Input voltage range 90 220 280 Vac Nominal operating voltage range 100V-240V
128 280 396 Vdc Support DC input
Input frequency 45 50 65 Hz AC input
Start inrush current     42 A When 25°C Cold start, 280Vac input, full load test
Power factor 0.99

Output
Parameter Min. Typical Max. Unit Remark
Output voltage setting   -53.5   Vdc
Output voltage range -43.2 -53.5 -57.6 Vdc
Output current range 0   90 A 176~280VAC/176-396Vdc input
0   45 A 90-<176Vac/128~<176Vdc input
Ripple (Vp-p)     200 mv At low temperature operating for 1 hour, apply 0.1uF film capacitor and 10uF HF electrolyte capacitor, 20MHz frequency band 20cm twisted pair.
Output efficiency 91     % 220Vac/280Vdc input,rated output
85     % 110Vac/200Vdc input, 33A output
Regulation     ±2 %
Load regulation     ±2 %
Voltage regulation     ±1 %
Output power   4800   W 176-285Vac/176-396Vdc input
  2400   W 90-<176Vac/128~<176Vdc input (configure GPR4830A1)


3. System Dimension



19inch 220VAC Telecom Rectifier With Monitoring Module 0

4. Application



■ Small scale program controlled exchanger

■ Access network

■ Transmission equipment

■ Mobile communication

■ Satellite communication ground station

■ Microwave communication



5.Operating Principle



After AC power is controlled by the AC hydraulic switch and then through the EMI board lightning protection and filtering processing, into the rectifier module, AC hydraulic switch has the function of overload and short circuit protection to AC power.



Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under -46.2V±0.5V, the monitoring module reports battery under voltage alarm signal; When the battery voltage is under -45.6V±0.5V, close LVLD load output; When the battery voltage is under -43.2V±0.5V, close LVBD load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).



6. Installation



GPE4890J is embedded power system. First insert GPE4890J to the specified location till the system is well fixed. Keep the 4 fixing holes on the bracket in line with those on the cabinet and then screw up 4 M6 cross rounded head screws, with the spring washer and flat washer. At last finish the installation after tightening the screw.



7. Pictures

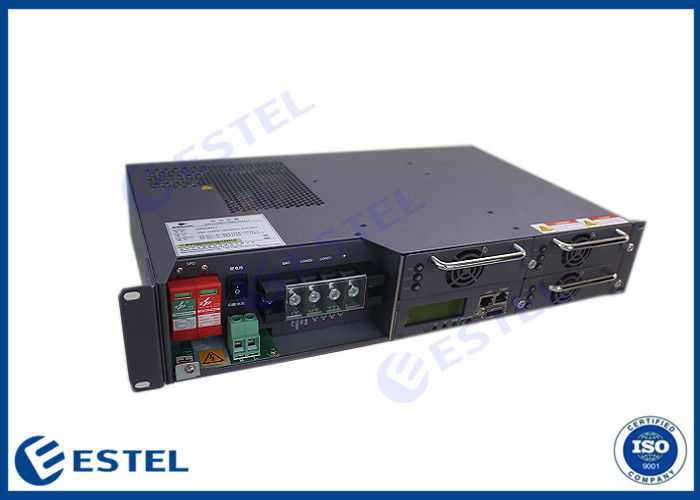

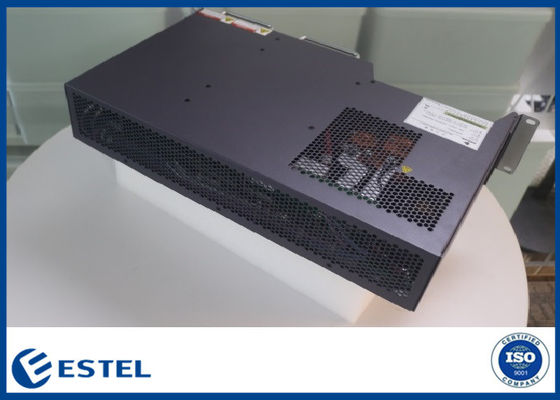

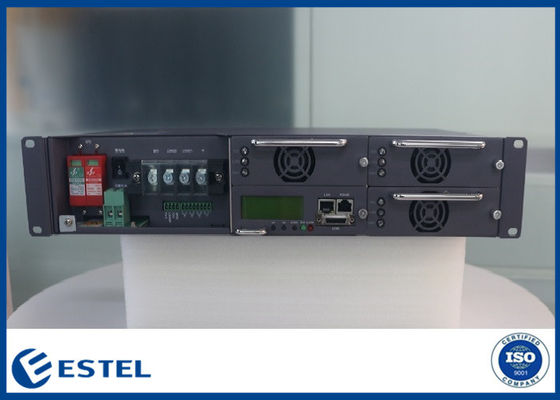

19inch 220VAC Telecom Rectifier With Monitoring Module 1
