Product Details:

Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: ISO
Model Number: GPE48150G

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depending on order quantity
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Installation: 19 Inch Rack Mount Application: Outdoor Telecom Cabinet
Input Voltage: 220Vac Output Voltage: 48Vdc
Output Power: 8025W Output Current: 150A
Monitoring Module: RS232 Rectifier Module: 5*30A
Highlight:

8000W Telecom Rectifier

,

RS232 Module Telecom Rectifier

,

8000W rectifier used in telecommunication

Product Description







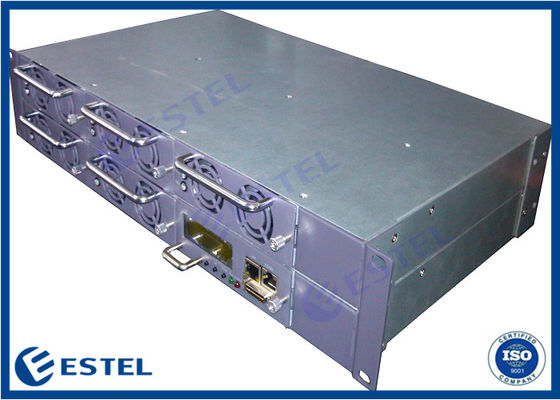

8000W 48VDC Power Rectifier 19 Inch Rack Mount Modular Rectifier

150A RS232 Ethernet



GPE48150G





Application



The 48VDC POWER RECTIFIERS are of rack mount modular rectifier for telecom applications with advanced battery monitoring and management system integrated.


The 48VDC POWER RECTIFIERS integrate high-efficiency modular rectifiers into custom shelf and embedded rack systems featuring remote monitoring, custom distribution centers, low voltage disconnects (LVD), shunts, alarms, relays and enclosures for indoor and outdoor applications.



The 48VDC power systems have the efficiency, features and reliability to match the needs of major telecommunication networks, and the AC power system converts AC input to -48VDC output. It mainly includes integrated power system.


The system is widely applied for outdoor telecommunication cabinets. The system has high integration, high efficiency and high reliability design, effectively helping customers to reduce energy consumption and save footprint of the sites.





Features

  • Hot swappable Rectifier Modules
  • N + 1 redundancy
  • Wide input voltage range, 90-280 Vac
  • Zero current/voltage switching tech with high efficiency ≥92%
  • Adoption of active power factor compensation technology with factor >0.98
  • Operating temperature range: -25℃~+55℃
  • Auto current sharing, parallel operation
  • Perfect surge protection function 20KA (8/20 US)
  • Subrack mount shelf – 19 inch
  • Ideal for 48V telecom power
  • Advanced battery management
  • DC power distribution options


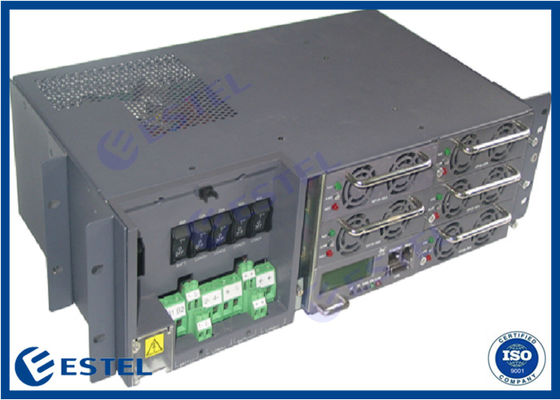

System Configuration



The system consists of distribution unit, rectifier module (1 min.,5 set max.) and monitoring module. The configuration is optional, as following table:



Configuration Rectifier Module Monitoring Module Distribution Remark
Standard GPR4830A1 / GPR4830A GPM48D-232 (With RS232 Port)

AC distribution: 1-phase, 3-wire input, 1-pole

AC MCB(63A);

DC distribution: Battery fuse 100A×1;

LVLD: 63A×3

LVBD: 10A×2

For details, please refer to the specifications of modules.
Optional 1 GPR4810A1 GPM48D (without Ethernet port)
Optional 2 GPR4815A
Optional 3 GPR4820A





























GPE48150G Properties



Input
Parameter Min. Typical Max. Unit Remark
Input voltage range 90 220 280 Vac
Input frequency 45 50 65 Hz
Input current     50 A
Power factor 0.98

















Output
Parameter Min. Typical Max. Unit Remark
Output voltage range -42 -53.5 -58 Vdc
Output current range 0   150 A 176~280VAC
0   75 A 90~<176VAC
Ripple (Vp-p)     200 mV Rated input/output, apply 0.1uF film capacitor and 10uF high frequency electrolyte capacitor, oscilloscope band width of 20MHz.
Output efficiency 90 92   % 220Vac input
83 85   % 110Vac input
Regulation     ±1 %
Load regulation     ±1 %
Line regulation     ±1 %





Mechanical specifications
Dimensions (Overall) 482.6mm×253.0mm×130.5mm
Weight (kg) (Overall)

≤18.5kg(Inclusive of module)

≤8.5kg( Frame + Distribution, exclusive of module)



High Reliability 8000W RS232 Module Telecom Rectifier 0



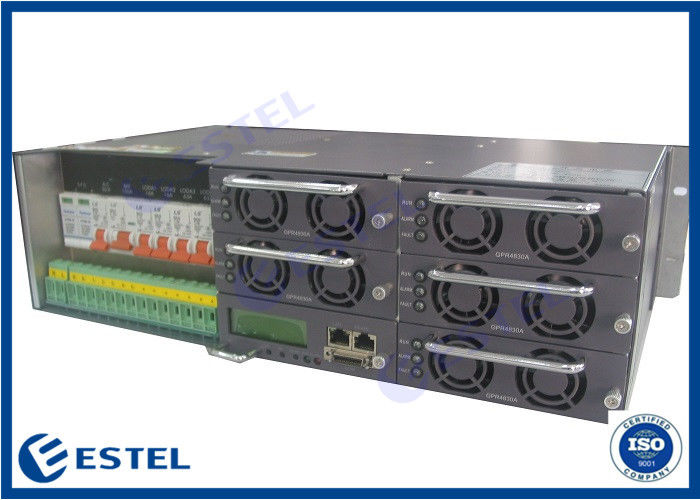

Electric Connection



High Reliability 8000W RS232 Module Telecom Rectifier 1





Cable connectors descriptions:



(1) N is the natural wire, L is the live wire, PE is the ground wire

(2) B1- and B2- is the BATT (-), B1+ and B2+ is the BATT (+)

(3) 1-, 2-, 3-, 4-, 5- are LODA1, LODA2…LODA5 load (-)

(4) 1+, 2+, 3+, 4+, 5+ are LOAD1, LOAD2­…LOAD5 load (+)





Communication



1. RS485, communication interface of GPE48150G, locates at the monitoring module, function for communication with the host.



RS485 communication mode:

A. Connect one end of communication cable to RS-485 on front board of GPE48150G

B. Pin2 of communication cable linked to RS-485, Cable A and B of RS485 linked to A and B of RS-485.



2. RS232 port signal definition



High Reliability 8000W RS232 Module Telecom Rectifier 2



The 2 RJ45 on front panel communicate with the host, the 2 communication port is in parallel connection, the pin description as following:



RX232: the pin 3 of RJ45, the receiver of control module RS232 communication terminal.

GND: the pin 6 of RJ45.

TX232: the pin 7 of RJ45, the sender of RS232communication terminal.
