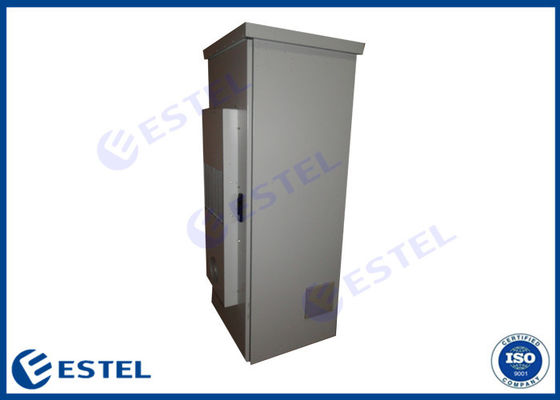

42U 19Inch Rack Telecom Equipment Cabinet With One Front Door

42U 19Inch Rack Telecom Equipment Cabinet With One Front Door

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 131090921050010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Get Best Price Contact Now

Detail Information

Dimension: H×W×D 900×900×2100mm Compartments: 1 Compartment
Door: One Front Door Protection Level: IP55
Cooling System: Air Conditioner Package: Wooden Case
High Light:

19Inch Rack telecom equipment cabinet

,

42U telecom equipment cabinet

,

42U external telecoms cabinet

Product Description

42U 19Inch Rack Telecom Equipment Cabinet With One Front Door

42U Air Conditioner Cooling 19 Inch Rack Outdoor Communication Enclosure



1. Cabinet Description



  • The outdoor communication enclosure is widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub.
  • We provide the outdoor cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.



2. Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension W×D×H 900×900×2100mm
Layout One compartment
Equipment Installation Method 19” standard rack,42U
Door One front door,with three point lock for outdoor cabinet (support padlock)
Material Galvanized steel,double wall
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



3. Cabinet Cooling System

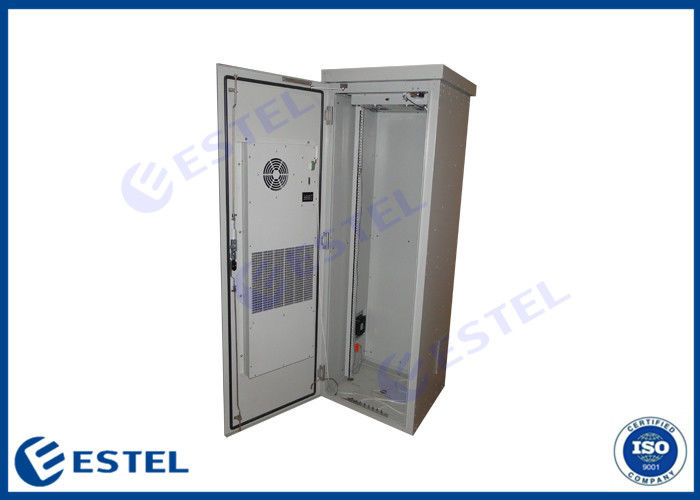

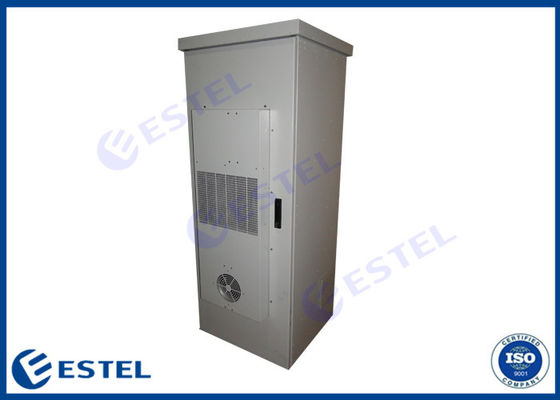

There are is one 1500W air conditioner installed on the front doors.



42U 19Inch Rack Telecom Equipment Cabinet With One Front Door 0

4.Cabinet Internal Instruction



  • The cabinet includes 19" rack ,42U.
  • The cabinet has smoke sensor , door sensor inside.
  • The cabinet Includes -48VDC illumination lamp.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
  • There is one ground bar at the bottom of the cabinet
  • There is anti-theft 3 point door lock on the cabinet door.
  • The cabinet is floor mounting type
  • The cabinet can reach IP55 protection level





5. Power Distribution Cabinet



There is one AC power distribution unit installed on the 19" rack inside of the cabinet.

  • Grade B Lightning Proof
  • AC Input: 63A/2P×1;
  • AC Output: 16A/1P×4;
  • DC Output: 16A/1P×4
  • Input Voltage: AC220V, 50Hz



7. Cabinet Pacakge



Wooden case with package



42U 19Inch Rack Telecom Equipment Cabinet With One Front Door 1
