IP55 Outdoor Telecom Enclosure 19 Inch Rack 40U Weatherproof Electrical Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET9090210-254-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| High Protection Grade: | IP55 | Material: | Galvanized Steel |
|---|---|---|---|
| Cabinet Cooling System: | Air Conditioner | External Dimension:: | W*D*H 900*900*2100mm |
| Internal Dimension:: | W*D*H 800*800*1800mm | Equipment Installation Method: | 19" Rack, 40U |
| High Light: | IP55 Outdoor Telecom Enclosure,19 Inch Outdoor Telecom Enclosure,40U Weatherproof Electrical Cabinet |
||
Product Description
IP55 Outdoor Telecom Enclosure 19 Inch Rack 40U Weatherproof Electrical Cabinet
1. Outdoor Telecom Equipment Cabinet
ET9090210EBF is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
2. Outdoor Telecom Equipment Cabinet
● Security design: Embedded doors, embedded hinges, 3-point security locks.
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Filter system is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost
● Galvanized Steel, single wall with insulation.
● Cabinet cooling system: air conditioner
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2100mm Internal Dimension:40U (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | Air conditioner | 1 | PC | 1500W, AC220V 50Hz |
| 4 | LED Lamp | 1 | PC | AC220V 50Hz |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 60Hz UK type socket |
| 7 | Package | 1 | PC | Wooden Case |
5. Cabinet structure
(1) External Dimension: W×D×H 900×900×2100mm
Internal Dimension:40U
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

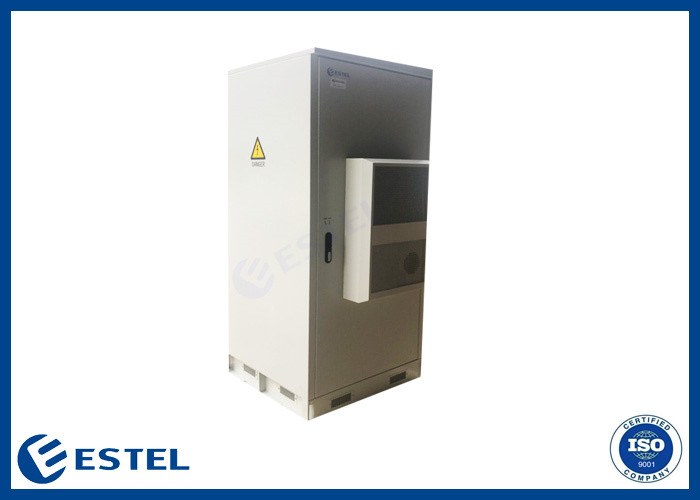

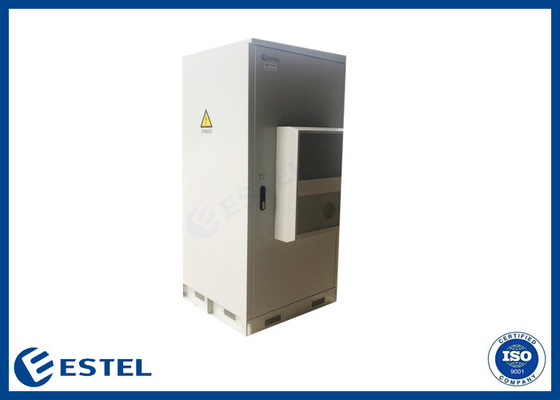

6. Cabinet picture
There are entrance holes individually for feeder cable and other external cables.

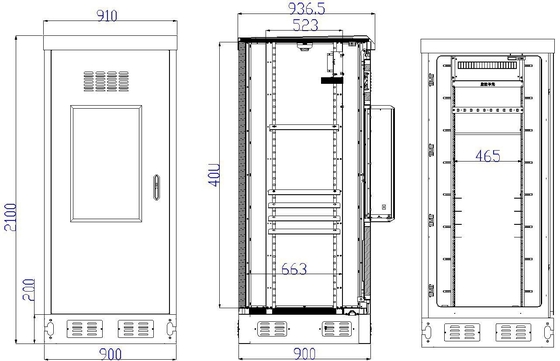

7. Cabinet Dimension
8. Grounding Protection
(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
Jiatup

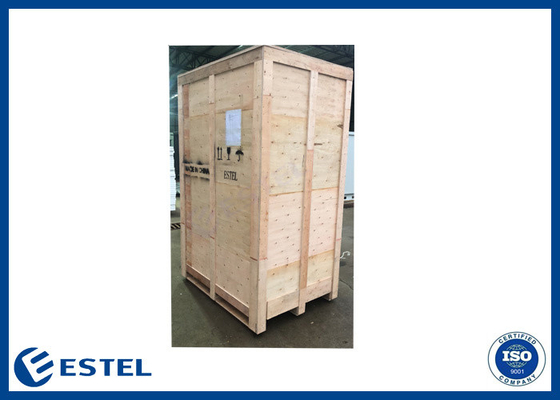

9. Package
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
