AC220V Outdoor Equipment Cabinet Anti Theft Three Point Lock Floor Mounting

AC220V Outdoor Equipment Cabinet Anti Theft Three Point Lock Floor Mounting

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET453070P-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 3-4 weeks
Payment Terms: L/C, Western Union, T/T
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

External Dimension:: H×W×D 700×450×300mm LED Lamp: 48V LED Lamps
Cooling: AC220V 50Hz Fans One Compartment: 19” Installation
LED Lamp Switch: For Controlling LED Lamp On/off Package: Outdoor Data Cabinet
High Light:

AC220V Outdoor Equipment Cabinet

,

19”Outdoor Equipment Cabinet

,

AC220V outdoor data cabinet

Product Description

1. Why need Outdoor Equipment Cabinet



Outdoor cabinet enable you to store all these parts appropriately for easy and effective access.Telecom equipment cabinets provide excellent protection from solid objects like dirt, clay and gravel.Estel cabinet offers added resistance to directed water spray and corrosion, as well as protection against finer dust particles.



2. Selling points and Feature Of Outdoor Equipment Cabinet



Galvanized Steel, single wall with insulation

Temperature Control: AC220V air conditioner or AC220V 50Hz fans.

Protection level:IP55.

There is one ground bar at the bottom of the cabinet

Dustproof, Sunproof and Rainproof.



3. Specification Of Equipment Cabinet



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 700×450×300mm
Layout 1 compartment
Equipment Installation Method 19” rack .
Door With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel
Structure Assembled
Mounting type Floor mounting type
Ingress Protection IP55
Temperature Control Cooling Fans
Lighting LED lamp

AC220V 50Hz

with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



4. Cabinet And Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 PC

(1) External Dimension:H×W×D 700×450×300mm

(2) One compartment: 19” installation

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

2 Auxiliary Direct Ventilation Fans 2 PC AC220V 50Hz installed on the front door.
3 LED Lamp 1 PC AC220V 50Hz
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 Package 1 PC Wooden Case



5. Technical Parameters



Item Technical Parameter

Working temperature range: -40℃~ +60℃

Sorage temperature range: -50℃~ +70℃

Transport temperature range: -50℃~ +70℃

Relative Humidity 5%-- 100%

Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)

Radiation Intensity 1400* (1±5%) W/m2



6. Application Of Equipment Cabinet



Wireless communication base station

such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



7. Equipment Cabinet Structure



(1) External Dimension:H×W×D 700×450×300mm

(2) One compartment: 19” installation

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

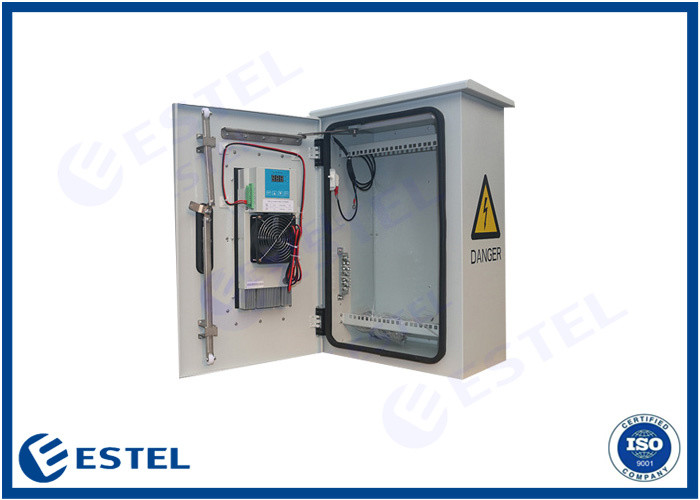

8. Cabinet Picture



AC220V Outdoor Equipment Cabinet Anti Theft Three Point Lock Floor Mounting 0



9. Door and Door Lock

(1) Cabinet door options: vertical hinge door, horizontal hinge door.

(2) The door limit device can limit the door position when it is open.

(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.



10. Cabinet inside Picture

Door Sensor



AC220V Outdoor Equipment Cabinet Anti Theft Three Point Lock Floor Mounting 1







11. FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
