Galvanized Steel 900mm Wide IP55 Telecom Street Cabinets
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 131090921050011 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 900×900×2100mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner And Fans | Package: | Wooden Case |
| Highlight: | IP55 Telecom Street Cabinets,900mm wide Telecom Street Cabinets,900mm wide weatherproof electrical enclosures |
||
Product Description

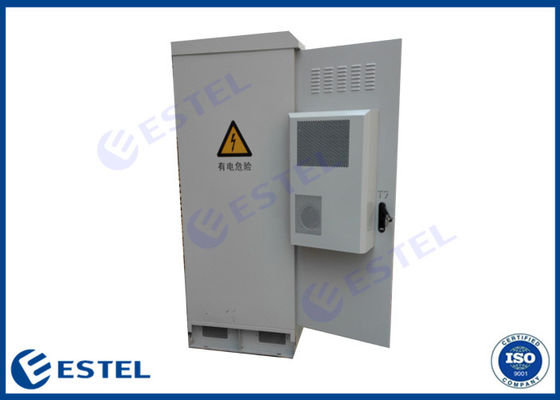

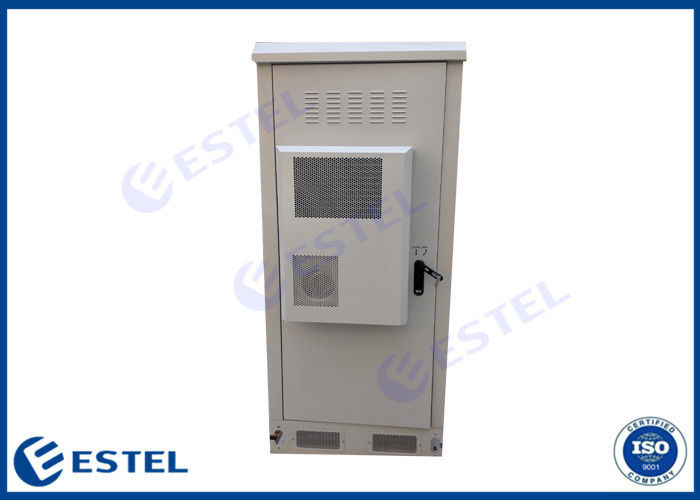

IP55 Galvanized Steel Air Conditioner Cooling Outdoor Telecom Cabinet WIth One Front Door
1.Cabinet Description

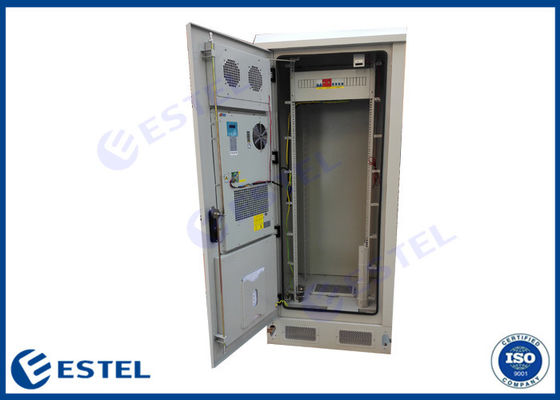

This series outdoor telecom cabinet is made of galvanized steel. It includes 19 inch rack for mounting the equipments,such as power distribution unit , monitor and other electrical devices.The cooling system adopts one air conditioner and two fans.The outdoor enclosure is adapt to various outdoor sites to meet the requirement of communication system,power system and etc.
2.Enclosure Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 2100×900×900mm |
| Layout | 1 compartment | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized Steel, double wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cable Inlet
The cable entry points are situated at the bottom of the cabinets.
5. Cabinet Cooling
There is one 2000W air conditioner installed on the front door.
There are 2 fans installed on the front door.
6. Door Lock
The door uses 3 point anti-theft cabinet lock to keep the cabinet high level security.
7.Delivery Time
Generally it will take about 20 days to produce the cabinet.
