IP55 32U Weatherproof Enclosure Box With Heat Insulation
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 121070717050002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 750×750×1750mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner | Package: | Wooden Case |
| High Light: | 32U Weatherproof Enclosure Box,IP55 Weatherproof Enclosure Box,32U weatherproof network enclosure |
||
Product Description

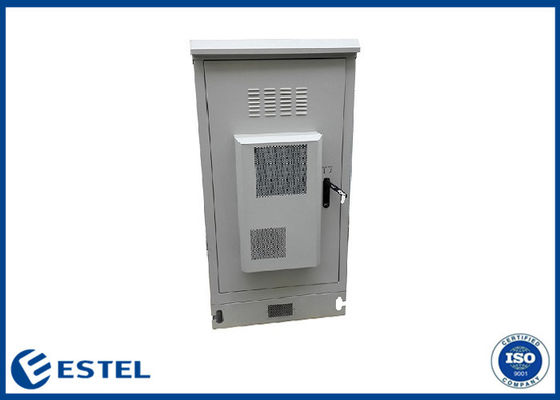

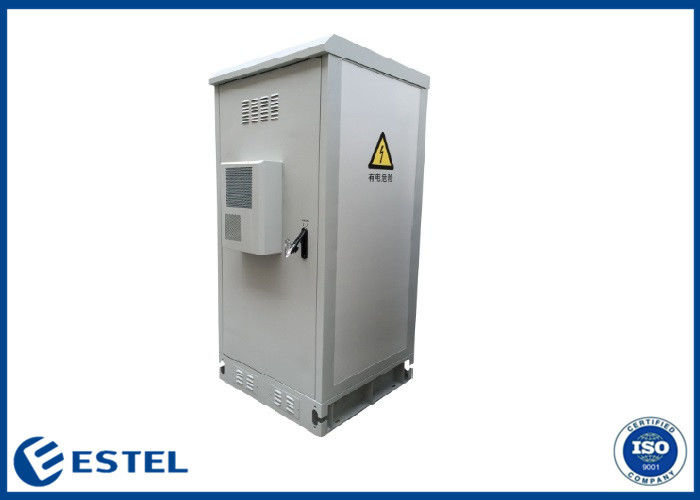

IP55 32U Rack Mounted Outdoor Telecom Cabinet With Heat Insulation
1. Cabinet Description
This series outdoor cabinet is available in a variety of configurations, and they can be used in several different applications.It has 1 compartment,it includes 19" rack for telecom equipment and rectifier and power distribution unit.It has one front door, with anti-theft three point lock,supporting padlock.The material of the cabinet is single wall galvanized steel with heat insulation.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm (32U) |
|
Layout |
One compartment includes 19" rack |
|
|
Door |
One front door, with anti-theft three point lock for outdoor cabinet (support padlock) |
|
|
Material |
Galvanized steel,single wall with heat insulation |
|
|
Heat Insulation |
There are heat insulation between inner wall and outer wall. |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
Air conditioner |
|
Lighting |
LED Lamp |
AC220V 50Hz ,6W |
|
Power Distribution Unit |
Power Distribution Unit A |
Avalible |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
Storage Temperature: -50°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
3. Cabinet Instructions
3.1Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
- Door hinges use inner hinge mode.
3.2 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
4. Power Distribution Cabinet
There is one AC power distribution unit installed on the 19" rack inside of the cabinet.
Grade B Lightning Proof
AC Input: 63A/2P×1;
AC Output: 16A/1P×4;
DC Output: 16A/1P×4
Input Voltage: AC220V, 50Hz
5. Cabinet Inlets
There are several cable inlets at the bottom of the cabinet
6. Cabinet Pacakge
Wooden case with package
