Single Wall 1600x660x2200mm 48V LED Battery Storage Cabinet

Single Wall 1600x660x2200mm 48V LED Battery Storage Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET16066220-S-BA

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case with pallet
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Battery Shelf No.: 8 Battery Shelves Material: Galvanized Steel
Structure: Single Wall Ingress Protection: IP55
External Size: 1600x660x2200mm Application: Telecommunication,Outdoor
Warranty: 1 Year Customization: According To Client's Requirement
High Light:

48V LED Battery Storage Cabinet

,

1600x660x2200mm Battery Storage Cabinet

,

1600x660x2200mm telecom outdoor cabinet

Product Description

Single Wall 1600x660x2200mm 48V LED Battery Storage Cabinet

Front Back Access Single Wall Steel Weatherproof Outdoor Battery Cabinet 8 Shelf Fan Cooling





Specification



(1) Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension H*W*D 2200×1600×660mm
Layout Two compartments
Equipment Installation Method Battery shelf, total 8 layers
Door With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Single wall, galvanized steel
Ingress Protection IP55
Temperature Control Cooling Direct ventilation
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ 75°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



(2) Accessories List





No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension H*W*D 2200×1600×660mm

(2) One compartment;

(3) With two front doors and two back doors, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: Single wall, galvanized steel

(5) Including grouding copper bar and cable entry

2 LED Lamp 1 PC DC48V
3 Door Sensor 1 PC Used for controlling LED lamp on/off
4 Package 1 Set Wooden Case



Advantage



ESTEL is a high-tech enterprise integrating R & D, production and sales. The total area of the factory is 3000 square meters, the total number of employees is about 150, and the annual output sales are nearly 100 million RMB. Since its establishment, the company has been focusing on outdoor integrated cabinet, cabinet air conditioning, heat exchanger, embedded switching power supply, environment monitoring system, power distribution research and development, production and sales.

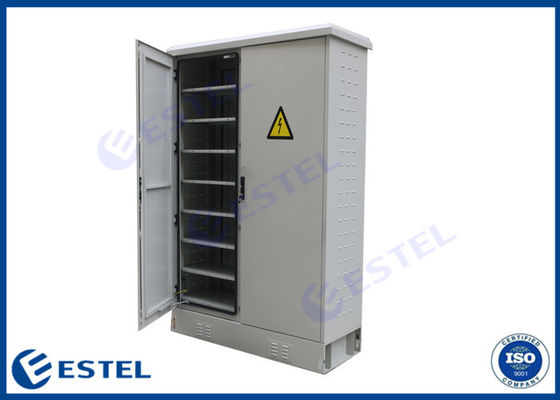

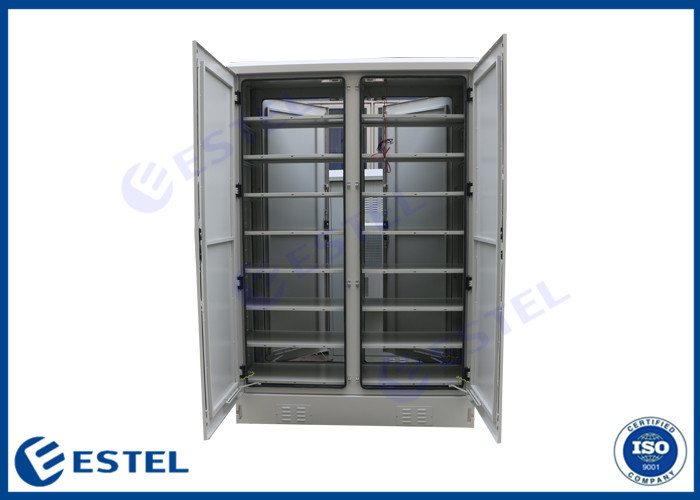

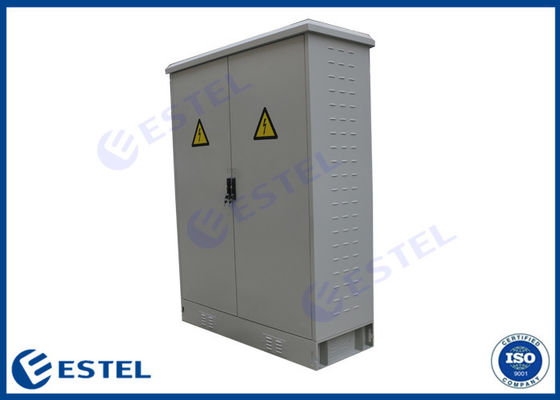

Cabinet Picture



Single Wall 1600x660x2200mm 48V LED Battery Storage Cabinet 0

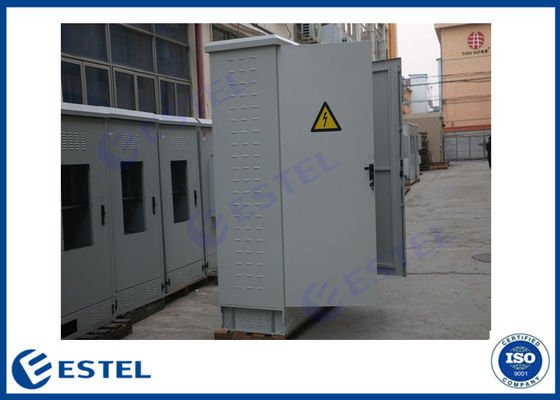

Factory Production Line



Single Wall 1600x660x2200mm 48V LED Battery Storage Cabinet 1
