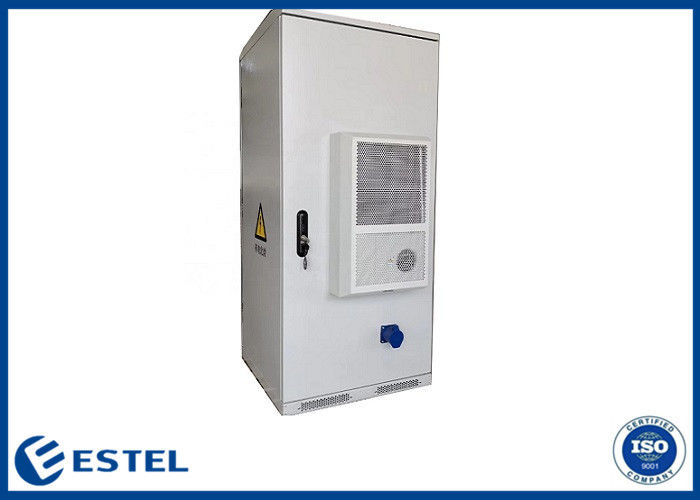

Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet

Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 131090921050006

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Get Best Price Contact Now

Detail Information

Dimension: H×W×D 900×900×2100mm Compartments: 1 Compartment
Door: One Front Door Protection Level: IP55
Cooling System: Air Conditioner Package: Wooden Case
High Light:

TLC Outdoor Network Cabinet


900×900×2100mm Outdoor Network Cabinet


900×900×2100mm outdoor network rack

Product Description


42U Air Conditioning Outdoor Telecom Cabinet Includes 19 Inch Rack Anti-theft Cabinet Lock


1. Cabinet Description


This series outdoor cabinet is available in a variety of configurations, and they can be used in several different applications.It has 1 compartment and includes 19" rack for telecom equipment and rectifier and power distribution unit.It has one front door, with anti-theft three point lock,supporting padlock.The material of the cabinet is double wall galvanized steel with heat insulation.


2. Technical Parameters


Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 900×900×2100mm


One compartment includes 19" rack


One front door and one back door, with anti-theft three point lock for outdoor cabinet (support padlock)


Galvanized steel

Heat Insulation

There are heat insulation between inner wall and outer wall.

Ingress Protection


Temperature Control


Air conditioner


LED Lamp

AC220V 50Hz ,6W

Power Distribution Unit

Power Distribution Unit A




Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C


Relative Humidity

5% ~ 100%


Air Pressure

62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation Intensity

Solar Radiation Intensity

1120 ×(1±5%)W/m2


3. Cabinet Instructions


3.1Appearance and Surface Treatment


Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.


3.2 Power Distribution Cabinet


There is one AC power distribution unit installed on the 19" rack inside of the cabinet.

Grade B Lightning Proof

AC Input: 63A/2P×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz

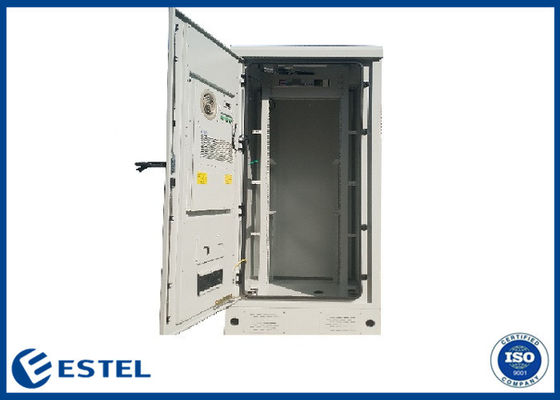

3.3. Internal Racks


Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet 0


3.4 Cabinet Inlets


There are several cable inlets at the bottom of the cabinet.


Anti Theft 900×900×2100mm TLC Outdoor Network Cabinet 1

4. Cabinet Pacakge


Wooden case with package
