Double Wall 900mm Depth FCC Telecom Equipment Cabinet

Double Wall 900mm Depth FCC Telecom Equipment Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 131090921050011

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Get Best Price Contact Now

Detail Information

Dimension: H×W×D 900×900×2100mm Compartments: 1 Compartment
Door: One Front Door Protection Level: IP55
Cooling System: Air Conditioner And Fans Package: Wooden Case
High Light:

FCC telecom equipment cabinet

,

900mm depth telecom equipment cabinet

,

900mm depth outdoor server cabinet

Product Description

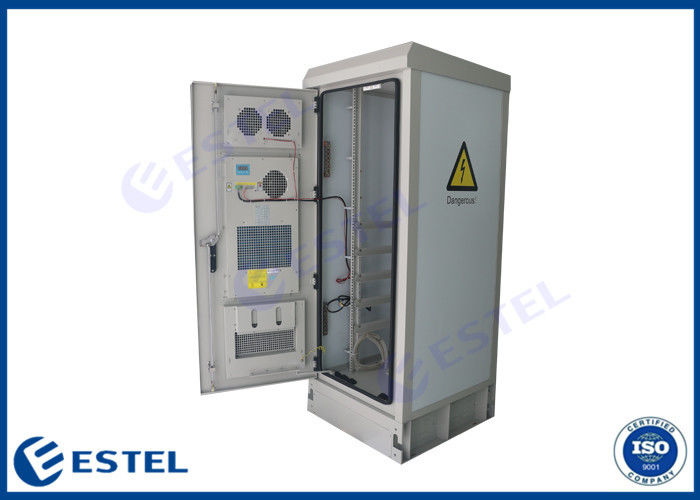

Double Wall 900mm Depth FCC Telecom Equipment Cabinet



42U Air Conditioner Cooling Outdoor Control Cabinet Double Wall 19 Inch Rack



1. Cabinet Description



  • The outdoor communication enclosure is widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub.
  • We provide the outdoor cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.



2. Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension W×D×H 900×900×2100mm
Layout One compartment
Equipment Installation Method 19” standard rack,42U
Door One front door,with three point lock for outdoor cabinet (support padlock)
Material Galvanized steel,double wall with heat insulation
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



3. Cabinet Cooling System



There are is one 1500W air conditioner installed on the front door.

There are 2 fans installed on the front door



4.Cabinet Internal Instruction



  • The cabinet includes 19" rack ,42U.
  • The cabinet has smoke sensor , door sensor inside.
  • The cabinet Includes -48VDC illumination lamp.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
  • There is one ground bar at the bottom of the cabinet
  • There is anti-theft 3 point door lock on the cabinet door.
  • The cabinet is floor mounting type
  • The cabinet can reach IP55 protection level



5. Mounting Rack



Double Wall 900mm Depth FCC Telecom Equipment Cabinet 0



6. Power Distribution Cabinet



There is one AC power distribution unit installed on the 19" rack inside of the cabinet.

  • Grade B Lightning Proof
  • AC Input: 63A/2P×1;
  • AC Output: 16A/1P×4;
  • DC Output: 16A/1P×4
  • Input Voltage: AC220V, 50Hz

Double Wall 900mm Depth FCC Telecom Equipment Cabinet 1



7. Cabinet Pacakge



Wooden case with package
