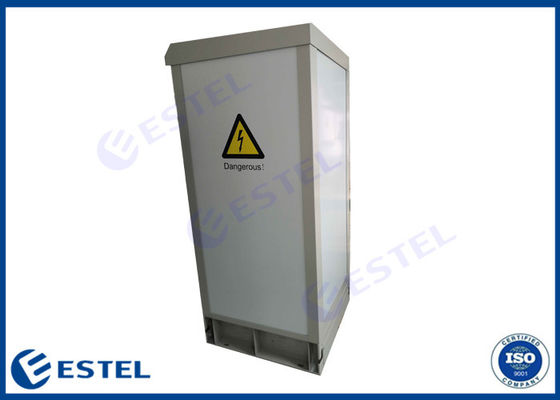

Air Conditioner Cooling 42U ISO9001 Outdoor Telecom Cabinet
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 131090921050012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 900×900×2100mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner And Fans | Package: | Wooden Case |
| Highlight: | ISO9001 Outdoor Telecom Cabinet,42U Outdoor Telecom Cabinet,42U telecommunication cabinet |
||
Product Description
42U Air Conditioner Cooling Base Station System With Heat Insulation
1. Cabinet Description
- The outdoor base station system is widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G.This series outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub.
- We provide the base station system, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension W×D×H 900×900×2100mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack,42U | |
| Door | One front door,with three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel,single wall with heat insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
3. Cabinet Cooling System

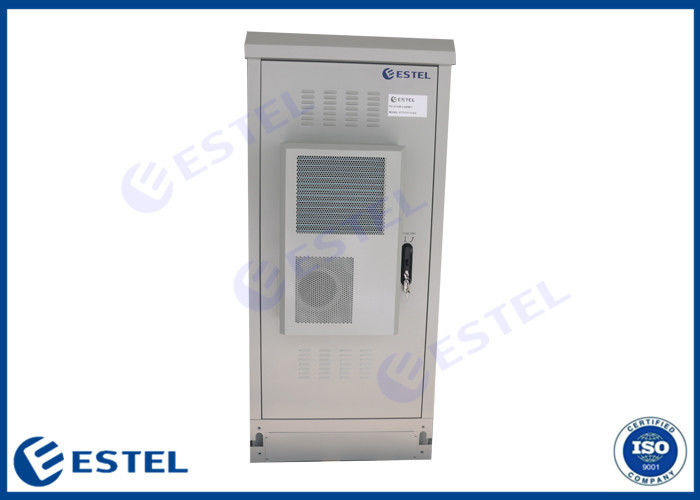

There are is one 1500W air conditioner installed on the front door.
There are 2 fans installed on the front door
4.Cabinet Internal Instruction
- The cabinet includes 19" rack ,42U.
- The cabinet has smoke sensor , door sensor inside.
- The cabinet Includes -48VDC illumination lamp.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
- At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
- There is one ground bar at the bottom of the cabinet
- There is anti-theft 3 point door lock on the cabinet door.
- The cabinet is floor mounting type
- The cabinet can reach IP55 protection level
5. Internal Instruciton Picture
There is one envirionment monitoring unit installed on the 19" rack
There is one PDU installed on the 19" rack
6. Cabinet Door Limit
7. Cabinet Pacakge
Wooden case with package
8. Delivery Time
It will take about 20 days to produce the cabinet.
