Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7575160-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Type: Cabinet Used For Equipment Battery External Size: W×D×H 750×750×1600mm
Material: Sandwich Structure Panel, Galvanized Steel Color: Grey RAL7035 Powder Coating
Cooling: One AC220V 50Hz 1500W Air Conditioner Illumination: AC220V LED Lamp
High Light:

AC220V air conditioner Outdoor Electrical Cabinet

,

ESTEL Outdoor Electrical Cabinet

,

AC220V air conditioner weatherproof electrical cabinet

Product Description

ESTEL AC220V Air Conditioner Outdoor Electrical Cabinet



Sandwich Structure Panel Outdoor Electrical Cabinet IP55 Air Conditioner Outdoor UPS Enclosure


1. Summary

This outdoor telecom cabinet is equipment battery cabinet with air conditioner cooling, made of steel. It can provide a stable and safe working environment for telecom equipments. And it can be used for wireless communicationstations under outdoor use conditions. Has the advantages of high integration, small floor area, flexibleexpansion, simple installation, energy saving, etc.


2. Technical Data Sheet


Model ET7575160-EQ-2D
Dimension W×D×H 750×750×1600mm
19” space and battery shelf 12U and 2 layer battery shelf
Door One front door
Lock Anti-theft three point lock for outdoor cabinet(support padlock)
Material Sandwich structure panel, galvanized steel
Installation method Floor mount


Cooling

Air conditioner
Power supply: AC220V 50Hz;
Cooling Capacity: 1500W

Illumination AC220V LED lamp
Door sensor Used for controlling led lamp on/ off
Working temperature -40°C~+75°C
Ingress Protection IP55



3. Feature


  • Short construction period, less land occupation, broader application and lower construction cost
  • High integration, compact structure, easy installation and migration on later stage
  • High-performance cooling solution, options: air conditioner, heat exchaner and fan
  • Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
  • Perfect air duct design to avoid cold and hot air mixed flow effectively
  • Professional outdoor anti-corrosion powder coating, strong weather resistance
  • Universal rack design applied for types of battery
  • Support custom made
  • Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55
  • Door stopper to hold door open at service
  • Hidden hinge, inside screws, enhance the theftproof

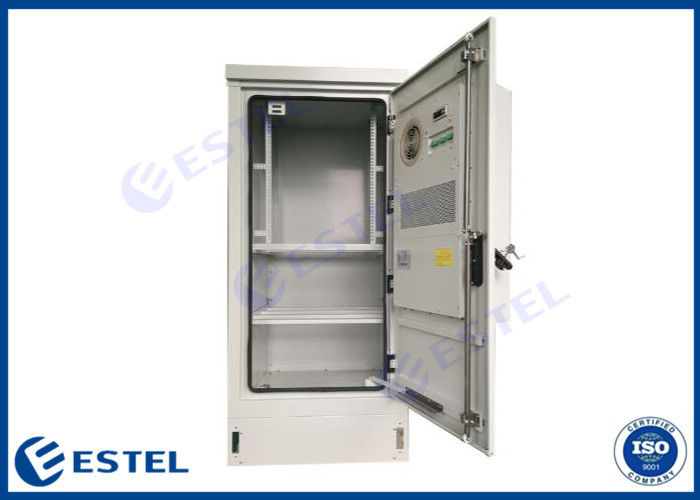

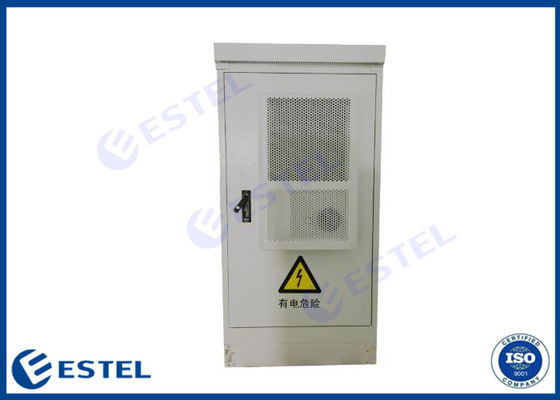

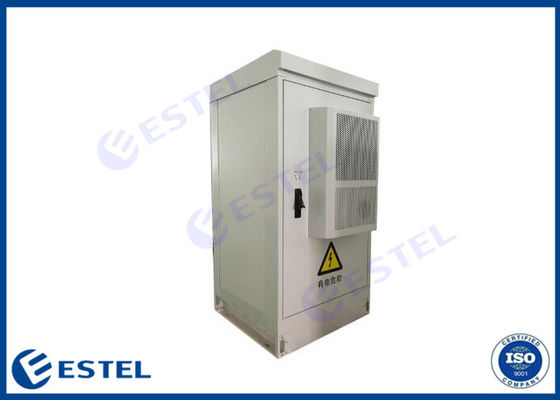

4. Cabinet Pictures

ESTEL AC220V Air Conditioner Outdoor Electrical Cabinet 0

ESTEL AC220V Air Conditioner Outdoor Electrical Cabinet 1

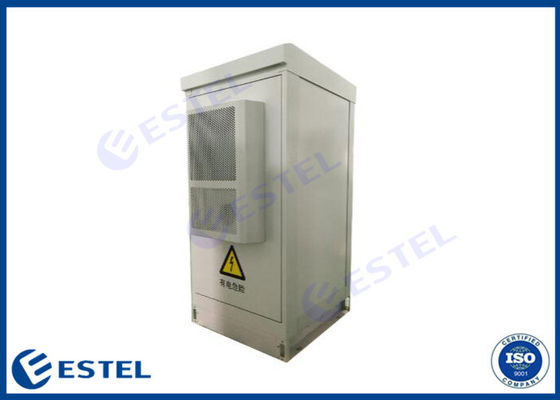

5. Application

ESTEL AC220V Air Conditioner Outdoor Electrical Cabinet 2



6. FAQ

Q1.Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q2: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by EMS,UPS, Fedex, TNT, DHL or AIR for small order,which usually takes about 5-12 days. And by SEA for bulk order, which usually takes about 1-2 months depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
