Three Compartment ISO9001 RAL7035 Outdoor Network Rack

Three Compartment ISO9001 RAL7035 Outdoor Network Rack

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET220100210

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Type: Base Station Cabinet External Size: W×D×H 2200×1000×2100mm
Material: Galvanized Steel, Single Wall Color: Grey RAL7035 Powder Coating
Cooling: Fans Door: 3 Front Doors
IP Grade: IP55 Working Temperature: -40°C ~ +75°C
High Light:

RAL7035 Outdoor Network Rack

,

ISO9001 Outdoor Network Rack

,

ISO9001 outdoor server cabinet

Product Description

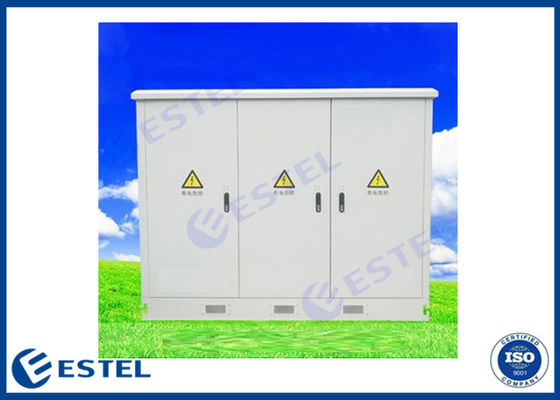

Three Compartment ISO9001 RAL7035 Outdoor Network Rack



Three Compartment Outdoor Electrical Cabinet 3 Front Door Access 19 Inch Equipment Battery Enclosure

1. Applications

Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable



Three Compartment ISO9001 RAL7035 Outdoor Network Rack 0

2. Feature

  • Short construction period, less land occupation, broader application and lower construction cost
  • High integration, compact structure, easy installation and migration on later stage
  • High-performance cooling solution, options: air conditioner, heat exchaner and fan
  • Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
  • Perfect air duct design to avoid cold and hot air mixed flow effectively
  • Professional outdoor anti-corrosion powder coating, strong weather resistance
  • Universal rack design applied for types of battery
  • Support custom made
  • Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55
  • Door stopper to hold door open at service
  • Hidden hinge, inside screws, enhance the theftproof


3. Specifications



ModelET220100210
DimensionW×D×H 2200×1000×2100mm
Equipment installation method19 inch rack and battery shelf
Door3 front doors
LockAnti-theft three point lock for outdoor cabinet(support padlock)
MaterialGalvanized steel,single wall
Installation methodFloor mount


Cooling

Fans with temperature controller
IlluminationAC220V LED lamp
Door sensorUsed for controlling led lamp on/ off
Working temperature-40°C~+75°C
Ingress ProtectionIP55

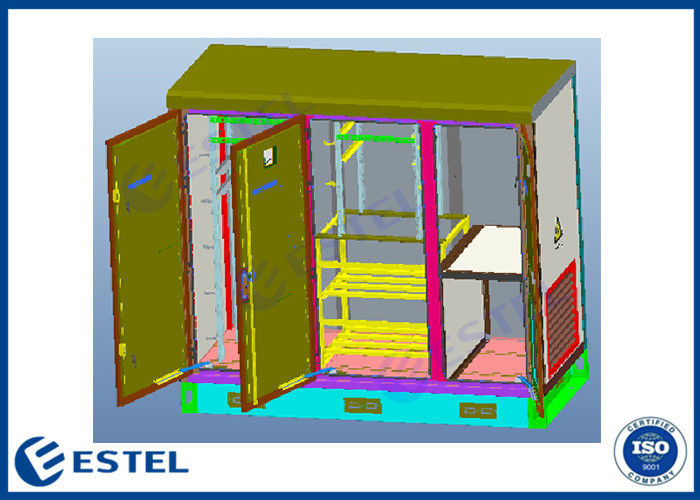

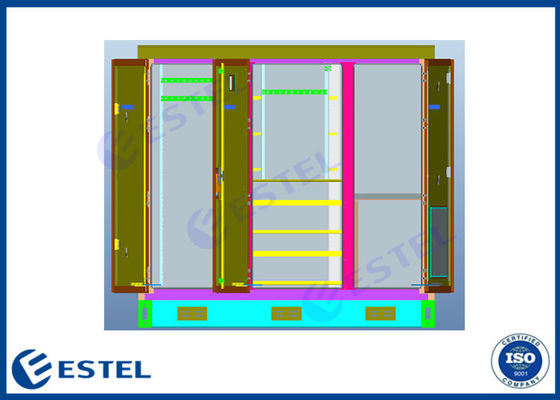

4. Cabinet Diagram


Three Compartment ISO9001 RAL7035 Outdoor Network Rack 1

Three Compartment ISO9001 RAL7035 Outdoor Network Rack 2


5. Factory


Three Compartment ISO9001 RAL7035 Outdoor Network Rack 3

Three Compartment ISO9001 RAL7035 Outdoor Network Rack 4
