1 Compartment IP55 Outdoor Telecom Cabinet 0.5mm Galvanized Steel
Product Details:
Place of Origin: | China |
Brand Name: | Estel |
Certification: | ISO9001, CE, RoHs |
Model Number: | ET8085210 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 3-4 weeks |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 5000 pcs/month |
Detail Information |
|||
Material:: | Galvanized Steel | Surface Finish:: | Outdoor Powder Polyester Coating |
---|---|---|---|
Protection Level:: | IP55 | Dimension: | 850×800×2025mm |
Type:: | Outdoor Cabinet | Equipment Installation Method: | 19" Rack |
Highlight: | IP55 Outdoor Telecom Cabinet,0.5mm Outdoor Telecom Cabinet,0.5mm weatherproof enclosure box |
Product Description
1 Compartment IP55 Outdoor Telecom Cabinet 0.5mm Galvanized Steel
1. Application
It is designed for storing electrical components. It is also ideal for industrial application to store large number of components. Electrical enclosure is also applicable on street lighting, solar power and traffic control. Electrical enclosure is a multi-functional enclosure. It is ideal application for outdoor, indoor and small building.Our electrical enclosure is also suitable for installations where space is limited.
2. Features
>>> The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
>>> All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
>>> IP55 protection level.
>>> Output voltage, current limits and alarm levels are easily adjustable.
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: W×D×H 850×800×2025mm |
Layout | 1 compartment | |
Equipment Installation Method | 19” rack | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock). | |
Material | (1) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (2) Cabinet door and base: outer plate: 1.5mm galvanized steel, inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (3) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.) + 1.0mm galvanized steel. | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | air conditioner and fans |
Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 850×800×2025mm (2) One compartment: 19” 40U (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock). |
2 | Air Conditioner | 1 | PC |
Cooling capacity: 1.5KW, Power Supply: AC110V, 60Hz. |
3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
4 | LED Lamp | 1 | PC | DC48V |
5 | LED Lamp Switch | 1 | PC | One for controlling LED lamp on/off |
6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
7 | Package | 1 | PC | Wooden Case |

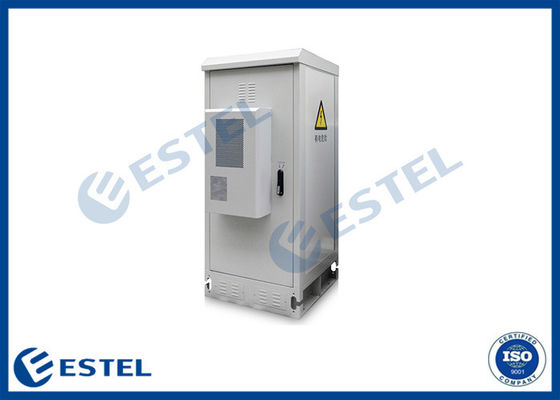

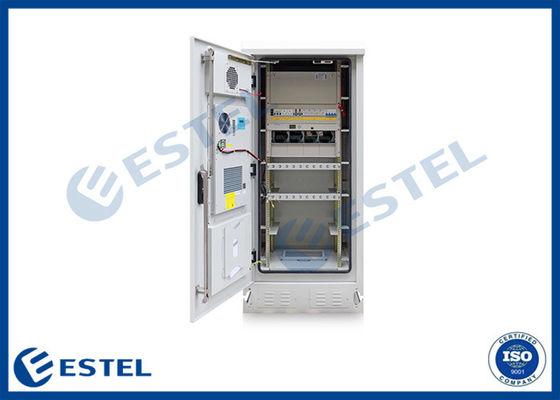

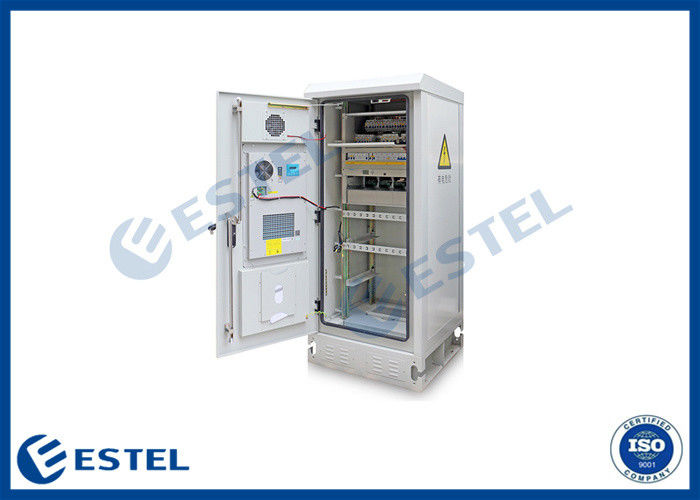

5. Cabinet Picture:
6. Connection and Fastening
· Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
· Door hinges use inner hinge mode.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
