35u Rack Environment Monitoring Unit DC48V Fans Outdoor Telecom Enclosure
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE |
| Model Number: | ET-150100200-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | woonde case |
| Delivery Time: | 3-4 weeks |
| Supply Ability: | 3000 pcs/month |
|
Detail Information |
|||
| Cabinet External Dimension: | 1000*1500*2000mm | Height Of Cabinet Base: | 200mm |
|---|---|---|---|
| Height Of Top Cover: | 150mm | Material: | Cold Rolled Steel |
| Fans: | DC48V | PDU: | 1 Set |
| High Light: | 35u Rack,35u Outdoor Telecom Cabinet,35u Outdoor Telecom Enclosure |
||
Product Description

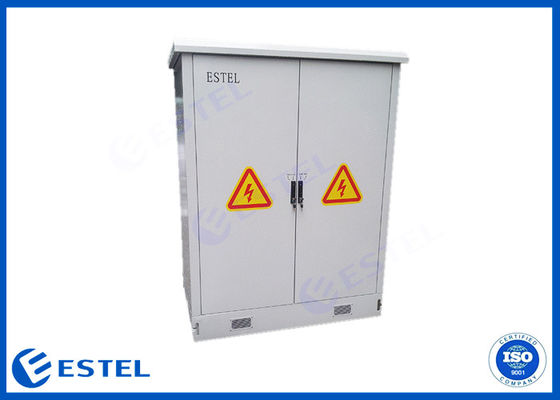

35u Rack Environment Monitoring Unit DC48V Fans Outdoor Telecom Enclosure
1. Description Of Outdoor Telecom Enclosure
Typical equipment being housed includes Computer, DVR, CCTV, Communications, Surveillance, Switches, Routers etc. and in many cases includes power rectification and battery back-up. The enclosures are normally multi chambered and enables the differing facilities to be separated for security/specific thermal requirements i.e. a separate battery chamber requiring lower operating temperature than active equipment chamber.
2. Structure
(1) Cabinet External Dimension: 1000*1500*2000mm(D*W*H);
Height of cabinet base: 200mm;
Height of top cover: 150mm
Material: cold rolled steel, outdoor power coat

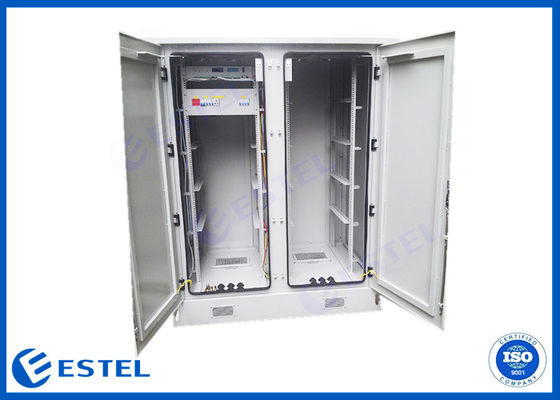

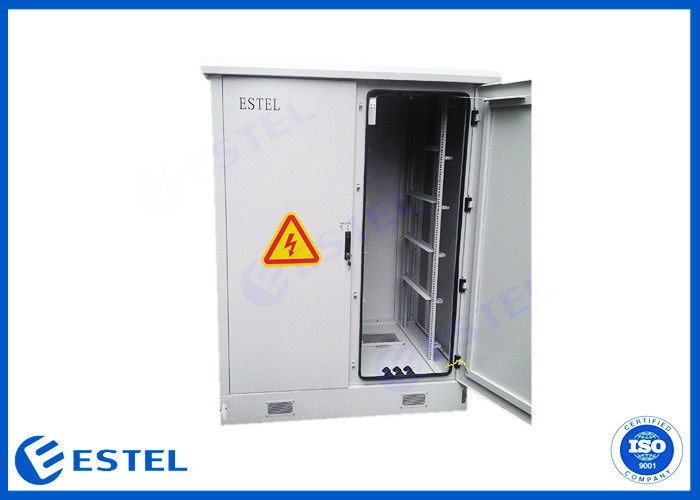

(2) The cabinet is splicing type cabinet, with two front doors, one left compartment and one right compartment.
(3) For each compartment, there are 19” rack and 35U space for installing equipments.
3. Enclosure And Accessories List
| No. | Item | Quantity | Unit | Remark |
| 1 | Outdoor Telecom Cabinet 1000*1500*2000mm (D*W*H) | 1 | set | |
| 2 | Fans DC48V | 4 | set | |
| 3 | Temperature Switch | 2 | pcs | |
| 4 | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.) | 1 | set | 2U environment monitoring unit is optional |
| 5 | PDU (grade B lightening arrestor, 63A/2P*1, 63A/1P*2, 32A/1P*2, 16A/1P*4, repair socket *1) | 1 | Set | |
| 6 | Packing: carton+ pallet | 1 | Set |
4. Technical Parameters
| Item | Technical Parameter |
| Temperature | Working temperature range: -40℃~ +60℃ |
| Sorage temperature range: -50℃~ +70℃ | |
| Transport temperature range: -50℃~ +70℃ | |
| Relative Humidity | 5%-- 100% |
| Air Pressure | 62kpa~ 101kpa (similar to altitude 0m ~ 5000m) |
| Radiation Intensity | 1400* (1±5%) W/m2 |
| Protection Grade | IP45 |
5. Enclosure Cooling
2 DC48V fans for each compartment, totally 4 fans.
6. Application Of Outdoor Telecom Enclosure
The intelligent temperature measuring machine can be installed in the main entrances of crowded places such as enterprises,schools, hotels, shopping malls, office buildings, banks, government halls, etc., to monitor the temperature of employees, customers, and visitors in real time, effectively helping to prevent epidemics.
7. Drawing and Pictures
8. Grounding Protection
(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3) Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
