Linux OS EMU Intelligent Monitoring Unit with MODBUS RTU/TCP Support

Linux OS EMU Intelligent Monitoring Unit with MODBUS RTU/TCP Support

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO
Model Number: FSU1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depending on order quantity
Packaging Details: carton
Delivery Time: 15 to 20 working days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Operating System: Linux Produt Height: 1 U
Systems Support: SNMP, MODBUS RTU/TCP, And B Interfaces Web Remote Access: B/S Architecture
Power Supply: VAC220/240; VDC336/ DC 48V Weight: 2.0 Kg
High Light:

TCP EMU Intelligent Monitoring Unit

,

Linux OS EMU Intelligent Monitoring Unit

,

EMU Intelligent Monitoring Unit with MODBUS

Product Description

Linux Operating System Intelligent Monitoring Unit Integrate Different Ports EMU



Linux Operating System Intelligent Monitoring Unit Integrate Different Ports EMU Product Overview



  • Intelligent monitoring and acquisition unit, 1U height, Linux system, built-in monitoring software, can access UPS, air conditioning, distribution cabinet, temperature and humidity, water, smoke and other comprehensive power environment equipment;
  • Software for B/S architecture, web remote access;
  • The system provides standard SNMP, MODBUS RTU/TCP, and B interfaces for the integration of upper-layer monitoring systems or third-party systems.

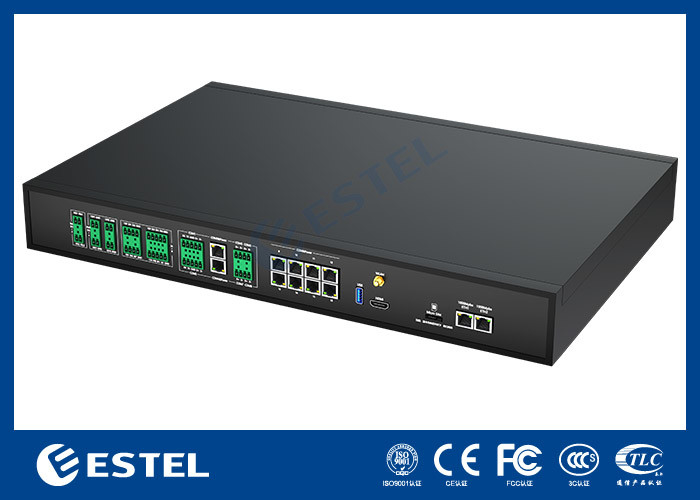

Linux OS EMU Intelligent Monitoring Unit with MODBUS RTU/TCP Support 0



Hardware features:



1) A 19-inch standard cabinet mounting size with a metal body

2) Embedded industrial processor, ARM cortex A35 512M memory, 16G storage space, support 5,000 points of access and 50 million records storage.

3) Integrate eight RS485 ports, nine DI ports, four DO ports, one USB port, and one 100 Mbit/S Ethernet port.

4) Support built-in 3G/4G modem/WiFi extension.

5) The standard host provides 5 groups of 12V external output, the maximum output power of the whole machine is 15W, to meet the sensor power supply needs.





Software features:



1) Linux operating system, open source, safe and reliable.

2) Equipped with FSU monitoring software, intuitive interface, easy operation, built-in software, no installation required

3) The software can monitor the object devices in real time, support control operations, and query historical data and alarm records.

4) B/S architecture, direct Web remote access, no need to install a client.

5) Support online configuration, no need to use additional configuration tools, easy to debug on site.





Parameter list





Figure 1-1 Onboard Parameter



CPU platform ARMCortex-A35
Internal Storage Capacity(DDR) 512M RAM
FLASH storage 16G EMMC
Operating System Linux



Figure 1-2 Port Parameter



Power INPUT

(Optional)

1)Single Power Supply VAC220/240; VDC336

2)DC 48V

4 DO ports Standard DO output normally on NC signal
9 DI ports Provides 8 universal DI inputs (dry or wet) for connecting to smoke sensors, door status sensors, and infrared sensors; 1 dedicated DI input (access to water pad)

8-channel 485 serial port



Support RS485 communication mode,baud rate is 1200bps, 2400bps, 4800bps, 9600bps, 19200bps optional. Word length 5-8 bits; The verification mode can be None, Odd, Even, Mark, or Space. The stop bit is 1 or 2 bits.
1 USB port 1 Type A USB port, 2.0 standard (full speed: 12Mbits/s); Access to USB camera images, support for standard USB flash drives and keyboard and mouse
1 debugging port USB type-C
LAN1Port 10/100M,half/full-duplex Adaptive, with network cable automatic crossover function



Figure 1-3 Envirenmental Parameter



Item Parameter
Working site Indoor
Working temperature 0℃~+50℃
Relative humidity 20%~85%, non-condensing
Barometric pressure 70kPa~106kPa
Storage Temperature -40℃~+70℃
Cooling Natural cooling
Weight 2.0KG
Orthers The dust meets the indoor standards of GR-63. No corrosive gas, flammable gas, oil mist, water vapor, dripping or salt, etc




Figure 1-4 Protection Standard Parameter



Item Standard
Electrostatic protection EN61000-4-2,3 grade, Contact/air discharge;6KV/8KV
Surge resistance EN61000-4-5,3grade, 4KV/2KV@8/20us&2Ω




Figure 1-5 Lightning Protection Parameter



Test port IO port Serial port, Ethernet port Power port
Impulse current 8/20us, positive and negative 5 times each Differential-mode 5kA Differential-mode 5kA Differential-mode 5kA
Common mode 5kA Common mode 5kA Common mode 5kA




Figure 1-6 Packaging Parameters



Item Parameter
Packaging size L440mm*W200mm*H44mm
Packing list

Main machine *1

Mounting screws and hanging ears *1

User manual *1

Test report *1

Power cord *1

Certificate *1

Plastic bag and foam *1
