Commercial Fast DC EV Charger Outdoor Floor Mounted Ev Charging Station With LED Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET1000-480KW-L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case with pallet |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Advantage: | LED Display, RFID, 4G/LAN/WiFi/Ocpp | Material: | Galvanized Steel |
|---|---|---|---|
| Ingress Protection: | IP 54 | External Size: | 2183*1163*1056mm(H*W*D) |
| Warranty: | 1 Year | Customization: | Support Customized Colors, Logos, And Packaging |
| Highlight: | LED Screen Ev Charging Station,Outdoor Floor Mounted Ev Charging Station,Fast DC EV Charger |
||
Product Description
Fast DC EV Charger Commercial Outdoor Floor Mounted Ev Charging Station With LED Screen
Fast DC EV Charger Commercial Outdoor Floor Mounted Ev Charging Station Product Introduction:
1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.;
2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light;
3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light;
4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light;
5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54;
6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware
Fast DC EV Charger Commercial Outdoor Floor Mounted Ev Charging Station Product Parameters
| Product Type |
Outdoor Fast DC EV Car Charger |
| Product Model | ET1000-480KW-L |
| Dimension (H*W*D)(mm) | 2183*1163*1056mm |
| Display Mode | 7" Color Touch Screen |
| AC Input Voltage Range (V) | 260-470VAC, 3P+N+PE (Wye connection) |
| AC Input Frequency (Hz) | 50 /60 Hz |
| Power Factor | ≥0.99 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% (full load) |
| DC Output Voltage Range (V) | 200-1000Vdc((CCS) |
| Output Voltage Range under Constant Power (V) | 200-1000Vdc |
| DC Output Current (A) | 250A (single gun) |
| Output Power (KW) | 480KW |
| Length of Charging Gun (m) | 5 |
| Noise (dB) | <=65 |
| Charging Operation | Swiping card/scanning code |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Air Cooling |
| BMS Auxiliary Power Supply (V) | 12/24 |
| Power Distribution | Equipartition/Intelligent Distribution/Switching |
| Altitude (m) | ≤2000 |
| Working Temperature (ºC) | -20~50 |
| Storage Temperature (ºC) | -40~70 |
| Average Relative Humidity | 5%~95% |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
| Charging Selection | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |

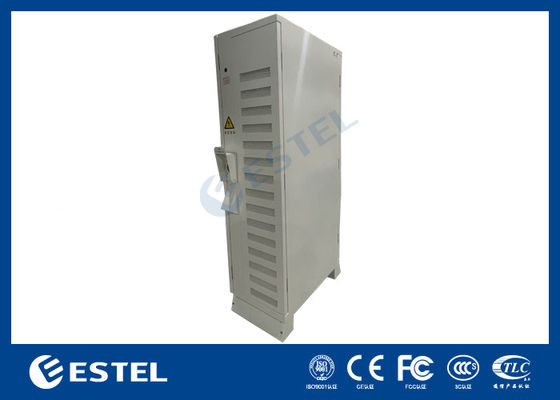

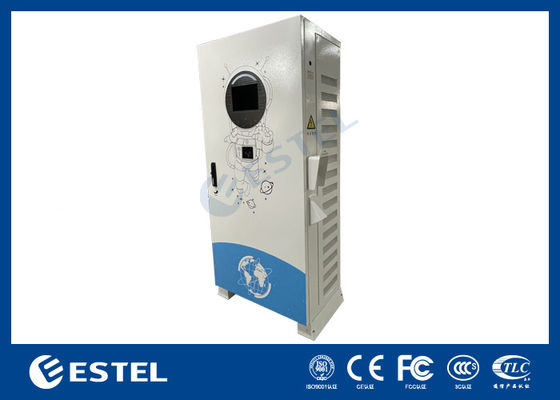

Cabinet Picture:
Q&A:
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
