Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure

Steel IP55 19inch Rack Pole Mount Weatherproof Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE,
Model Number: ET655290P-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Protection Level: IP55 Material: Galvanized Steel
Application: Outdoor External Size: W*D*H 650×525×900mm
Structure: Double Wall With Heat Insualtion Installation: Pole Mount
Package: Wooden Case With Pallets Cooling: Air Conditioner And Fan
High Light:

19inch Rack Pole Mount Weatherproof Enclosure

,

IP55 Pole Mount Weatherproof Enclosure

,

IP55 pole mount enclosure

Product Description

Steel IP55 19inch Rack Pole Mount Weatherproof Enclosure



Double Wall Inusulated Anti-Corrosion Pole Mount Weatherproof Enclosure Air Conditioner Cooling




1. Specification



(1) Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension W*D*H 650×525×900mm
Layout One compartment
Equipment Installation Method 19” standard rack and tray
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Single wall is optional.

Ingress Protection IP55
Temperature Control Cooling 500W AC220V air conditioner
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -20°C ~ 75°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2


(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension W×D×H 650×525×900mm

(2) One compartment

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double wall, thickness of outer plate: 1.2mm; thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls.

2 Air Conditioner 1 Set

Cooling Capacity: 500W

Power Supply: AC220V 50Hz

3 Fan 2 PC 2 AC220V fans with one temperature controller
4 LED Lamp 1 PC AC220V
5 LED Lamp Switch 1 PC Used for controlling LED lamp on/off
6 Package 1 Set Wooden Case




2. Application

The ET655290P Pole Mount Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

3. Cabinet Introduction

3.1 Cabinet Structure: the cabinet use sandwich structure, outer plate is 1.2mm galvanized steel, inner plate is 0.8mm galvanized steel, with 20mm insulation between outer plate and inner plate.

3.2 Door and Door Lock: The cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

4. Features

4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.2 The cabinet use AC220V air conditioner and fans for cooling.

4.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.

4.4 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.

4.5 The cabinet use standard 19” rack installation method.

5. Technical Specs

5.1 Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C;

Environment humidity (RH): ≤95% (at + 40°C);

Air pressure: 62kPa ~ 102kPa.

5.2 Material: galvanized steel.

5.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

5.4 Cabinet load bearing: ≥300kg.

5.5 Ingress protection: IP55.

5.6 Flame retardance: comply with GB5169.7 test A.

5.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).

5.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

5.9 Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.



Dimension Diagram :

Cabinet External Size: 650×525×900mm (W×D×H).



Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 0



6. Details



Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 1



Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 2



Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 3

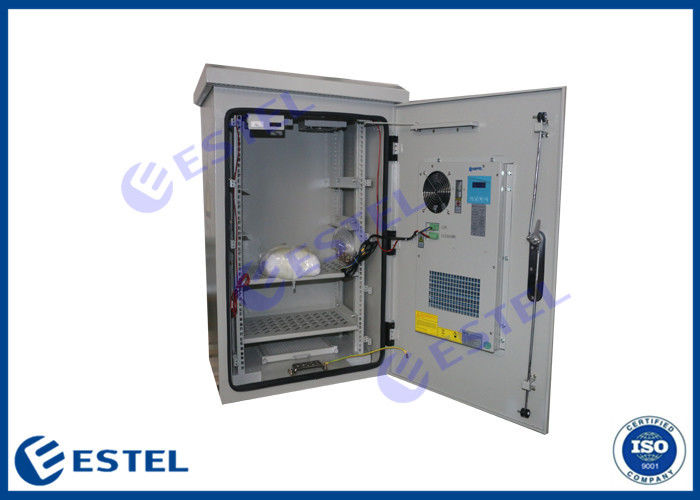

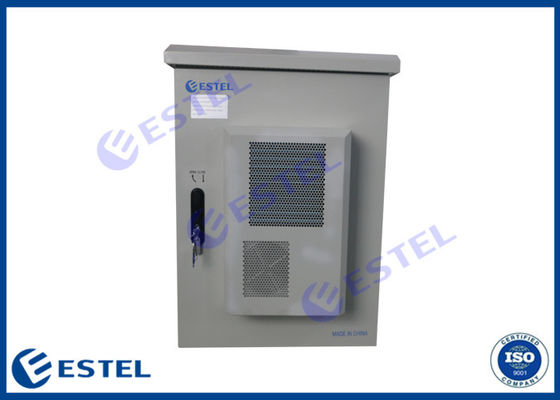

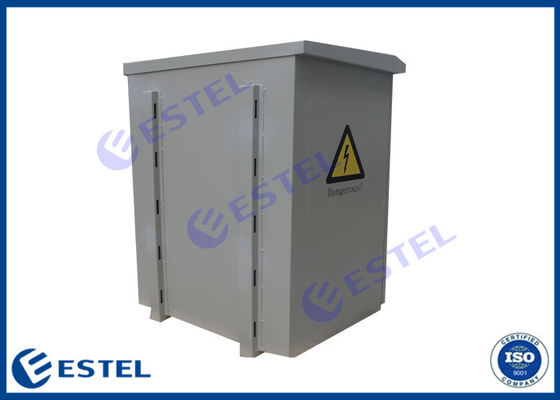

7. Cabinet picture

Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 4

Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 5Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 6



8. Packing



Steel  IP55 19inch Rack Pole Mount Weatherproof Enclosure 7
