Galvanized Steel 14U SGCC Pole Mount Cabinet

Galvanized Steel 14U SGCC Pole Mount Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET753070P-S

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Wooden Case
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 PCS per month
Get Best Price Contact Now

Detail Information

Installation: Pole Mount Cooling: Fan
Material: Galvanized Steel, SGCC Structure: Single Wall
Lock: Three-point Lock Protection: IP55
Size: W×D×H 750×300×700mm
High Light:

SGCC Pole Mount Cabinet

,

14U Pole Mount Cabinet

,

14U telecom equipment cabinet

Product Description

Galvanized Steel 14U SGCC Pole Mount Cabinet

Steel SGCC Single Wall 19" Pole Mount Weatherproof Enclosure IP55 Compact Outdoor Box Rustproof Theftproof


1. Overview
This Pole Mounted Outdoor Telecom Enclosure is suitable for outdoor environment, such as roadside, park, remote mountain area, building roof. The cabinet can install base station equipment, power equipment, battery, temperature control equipment, transmission equipment and other matching equipment or reserve space and heat exchange capacity for the above equipments, can provide reliable mechanical and environmental protection for the normal operation of internal equipment.


2. Drawing

Cabinet  Size : W×D×H 750×300×700mm
Galvanized Steel 14U SGCC Pole Mount Cabinet 0

3. Advantage
3.1 The enclosure is dustproof, sunproof and rainproof, which is used in outdoor environment.
3.2 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
3.3 All the cables used in the cabinet are made from flame retardant materials.
3.4 Perfect protection
● Protection Grade: IP55
● Integrated top cover, good seal, water proof
● High stability, anti-UV radiation
● Anti-corrosion
3.5 Theft Proof
● Inside Installation, inside fixing, no outer screws
● Anti-theft three point lock
● Inside door hinges, multiple protection

4. Specifications
(1) Working conditioning


Item

Type

Technical Parameter

Temperature

Temperature

Working Temperature: -20°C ~ 55°C

Storage Temperature: -40°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Humidity

Relative Humidity

5% ~ 100%

Pressure

Air Pressure

62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation Intensity

Solar Radiation Intensity

1124 × (1±5%)W/m2





(2) Accessories List


No.

Item

Quantity

Unit

Specs

1

Outdoor Pole Mounted Cabinet

1

Set

(1)External Dimension:
W×D×H 750×300×700mm
Internal Dimension:
W×D×H 600×250×600mm
(2)One compartment, including 19" rail
(3)With one front door,and anti-theft three point lock for outdoor cabinet (support padlock), one master key that can open all doors of cabinet
(4)Materail: single layer SGCC galvanised steel;
anti-corrosion powder coating, RAL7035 EMC
protection
(5)Including pole mounted accessories
(6)Including grounding bar
(7)Including cable entry
(8)IP Grade: IP55

2

Fan

2

Set

AC220V, 50Hz; on the door

3

Package

1

Set

Wooden Case

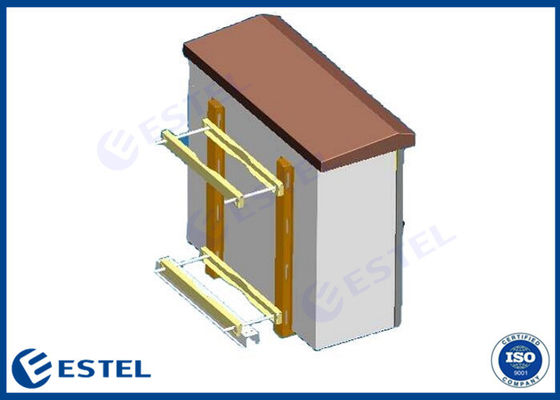

5. Installation Method Diagram-Pole Mounted
Galvanized Steel 14U SGCC Pole Mount Cabinet 1

6. Cabinet Layout

Galvanized Steel 14U SGCC Pole Mount Cabinet 2
