Anti Theft FCC 1150mm Height Pole Mount Battery Box

Anti Theft FCC 1150mm Height Pole Mount Battery Box

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET6565115P-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 9,000 sets per month
Get Best Price Contact Now

Detail Information

Protection Leve: IP55 Layout: The Upper Is Equipment Power Bay, The Lower Is Battery Bay
Size: W×D×H 650×650×1150mm Cooling: Air Conditioner And Fans
Material: Double Wall With Heat Insulation Protection Level: IP55
High Light:

1150mm height Pole Mount Battery Box

,

FCC Pole Mount Battery Box

,

FCC outdoor pole mount enclosure

Product Description

Anti Theft FCC 1150mm Height Pole Mount Battery Box




Double Wall Thermostatic Pole Mount Weatherproof Enclosure Equipment Rectifier Battery Integrated Outdoor Cabinet


1. Applications

This Pole Mounted Enclosure is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Specifications

ModelET6565115P-UP
DimensionW×D×H 650×650×1150mm
19” space8U
Battery layer No.2
DoorOne front door
LockAnti-theft three point lock for outdoor cabinet(support padlock)
MaterialGalvanized steel; double wall with thermal insulation
Installation methodPole mount


Cooling

Air conditioner
Power supply: AC220V 50Hz;
Cooling Capacity: 500W

Ventilation systemTwo DC48V fans with one temperature controller
IlluminationDC48V LED lamp
Door sensorUsed for controlling led lamp on/ off
Working temperature-40°C~+75°C
Ingress ProtectionIP55
Relative Humidity5% ~ 100%
Solar Radiation Intensity1120 × (1±5%)W/m2





3. Features


  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • The equipment compartment and battery compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • All the cables used in the cabinet are made from flame retardant materials.
  • Door stopper to hold door open at service
  •  Hidden hinge, inside screws, enhance the theftproof

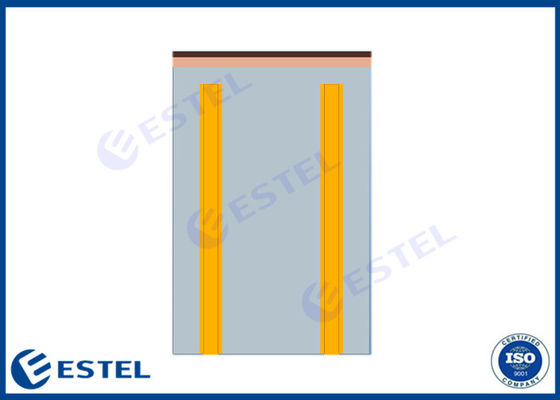

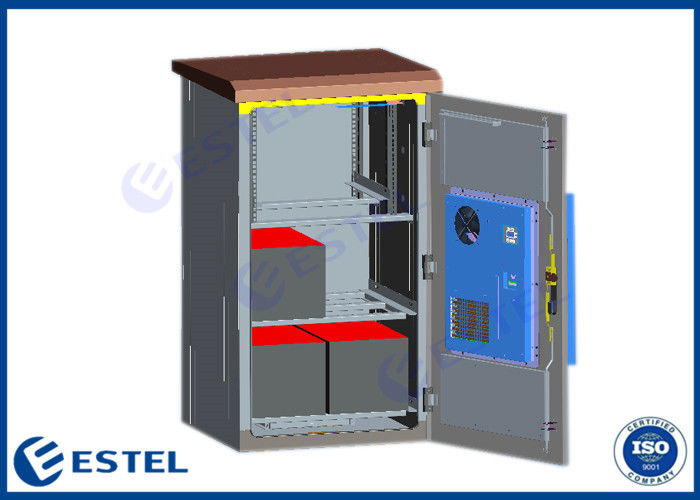

4. Cabinet Dimension Diagram


Anti Theft FCC 1150mm Height Pole Mount Battery Box 0

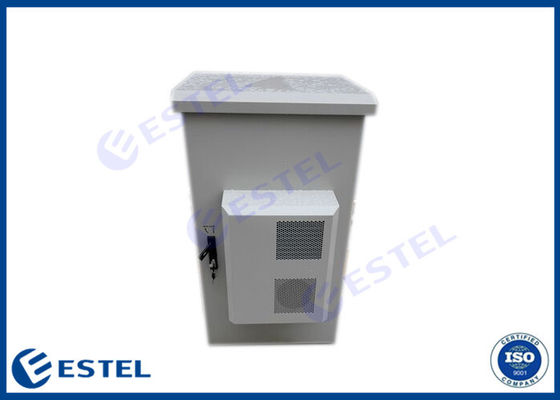

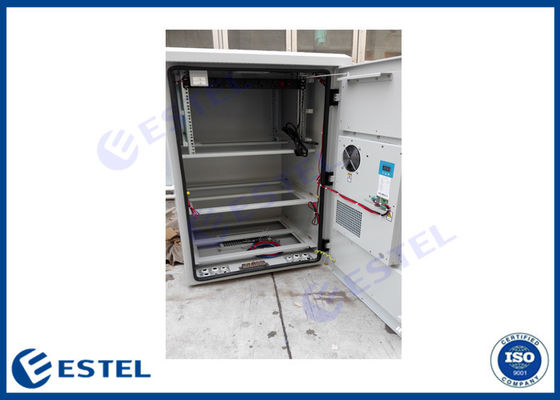

5. Cabinet Picture


Anti Theft FCC 1150mm Height Pole Mount Battery Box 1



6. Our Factory


Anti Theft FCC 1150mm Height Pole Mount Battery Box 2

7. Certificate


Anti Theft FCC 1150mm Height Pole Mount Battery Box 3
