Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure

Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET8061130P-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Wooden Case
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 PCS per month
Get Best Price Contact Now

Detail Information

Inner Structure: Upper Side Is 9U 19” Mounting Rail, Lower Part Is For Installing Batteries Cooling: Air Conditioner
Material: Galvanized Steel, Double Wall With Insulation Protection: IP55
External Size: 1300mm×800mm×610mm(H×W×D) Installation Method: Pole Mount
High Light:

outdoor pole mount enclosureISO9001 Outdoor Pole Mount Enclosure

,

9U Outdoor Pole Mount Enclosure

,

9U pole mount cabinet

Product Description

Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure



Air Conditioner Cooling Double Wall Steel Pole Mount Weatherproof Enclosure 19" Equipment Battery Cabinet







Features



● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Triangular type lock

● Professional outdoor anti- corrosion powder coating, strong weather resistance

● IP55 prtection level, waterproof, dustproof, sunproof







Technics



The cabinet material is high quality steel plate, made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.





Application



The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.



Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET8061130P
Size External Size: 1300mm×800mm×610mm(H×W×D)
Component The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is pole mounted. Include pole mounting accessories.
Material Steel, double wall with insulation.
Structure

(1) One front door, hidden hinge

(2) Outdoor special triangular type lock, with key

(3) Door stopper / wind lock is installed on the inside of the cabinet door

(4) Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

(5) Cabinet upper side is 9U 19” mounting rail, lower part is for installing batteries

(6) Equipped with cable manager

(7) Cable inlets at the bottom of cabinet

Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating
Ingress Protection NEMA 4X
Working Temperature -40°C~+75°C
Cooling Method Air Conditioner 500W, 110VAC 60Hz
Power Supply PDU 2U Din Rail Panel
Other Illumination LED light, 48VDC







Dimension Diagram



Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure 0

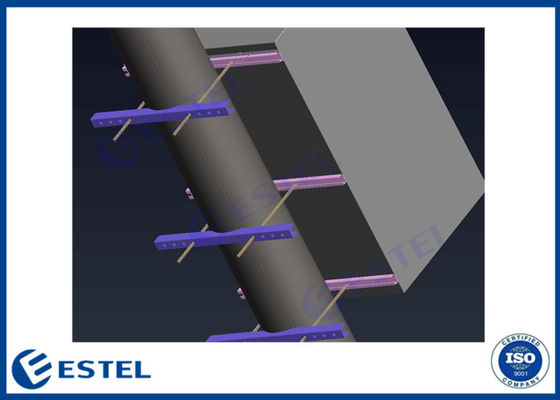

Cabinet Installation Pictures



Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure 1



Factory

Double Wall 9U ISO9001 Outdoor Pole Mount Enclosure 2
