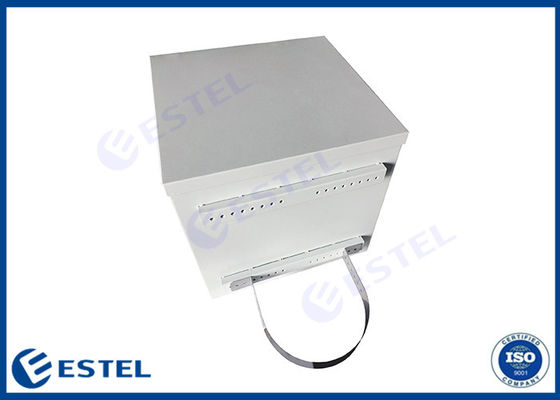

Anti Theft 9U 600mm Height Pole Mount Weatherproof Enclosure
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001 |
| Model Number: | ET605860PS-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1500 PCS per month |
|
Detail Information |
|||
| 19%22 Rack: | 9U | Installation Mode: | Pole Mount |
|---|---|---|---|
| Cooling: | Fan, Temperature Adjustable | Material: | Galvanized Steel |
| Structure: | Single Wall With Heat Insulation | External Size: | 600mm×600mm×580mm(H×W×D) |
| Lock: | Anti-theft Three-point Lock | Protection Level: | IP55 |
| Highlight: | 600mm height Pole Mount Weatherproof Enclosure,9U Pole Mount Weatherproof Enclosure,9U pole mount cabinet |
||
Product Description
9U 19" Rack Outdoor IP55 Pole Mount Weatherproof Enclosure Galvanized Steel Small Box Theftproof Telecom Cabinet
Overview
This cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
● Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Professional outdoor anti- corrosion powder coating, strong weather resistance
● High quality galvanized steel
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● IP55 cabinet, waterproof, dustproof, single layer steel plate with high quality insulation
● Door stopper to hold door open at service
● Hidden hinge, inside screws, enhance the theftproof
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET605860PS-EQ |
| Size | External Size: 600mm×580mm×600mm(H×W×D) | |
| Component | The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is pole mounted. | |
| Material | Galvanized steel, single wall with heat insulation | |
| Structure |
♦ Single wall, with insulation ♦ One front door, hidden zinc alloy hinge ♦ Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device ♦ Door stopper is installed on the inside of the cabinet door ♦ Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof ♦ The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced. ♦ Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made. ♦ Equipped with cable manager ♦ Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Fan | DC48V |
| Monitoring | Smoke Sensor | Monitor the smoke status inside the cabinet and provide real time alarm. |
| Door Sensor | When unlawfully opened, provide real-time alarm. | |
| Other | Illumination | LED light, 48VDC |
Dimension Diagram
Pole Mount Diagram
Product Pictures
