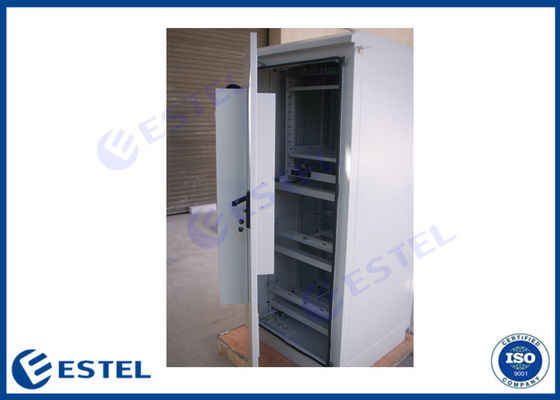

TLC 1500W Air Conditioner Weatherproof Electrical Cabinet
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 331080820050001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 800×800×2000mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner | Package: | Wooden Case |
| High Light: | 1500W air conditioner Weatherproof Electrical Cabinet,TLC Weatherproof Electrical Cabinet,1500W air conditioner outdoor server cabinet |
||
Product Description
Air Conditioner Cooling Outdoor Power Enclosure Includes Rack And Battery Shelves
1. Cabinet Description
Outdoor temperature control battery cabinet is designed to provide good protection and constant temperature working environment for batteries. It is a special cabinet to ensure that the batteries used in communication base stations and other systems can reach the constant temperature working conditions. This product has high heat insulation efficiency, high heat insulation performance and high protection performance. This product has the functions of refrigeration, monitoring (battery cabinet internal temperature, ambient temperature, condenser temperature, evaporator temperature), display, alarm (high temperature alarm, sensor alarm, equipment fault alarm, etc.). At the same time, it can remotely monitor the above temperature and alarm information through the standard RS485 interface. The above functions make the product have good reliability and safety, which can ensure the internal battery to work in the best environment and effectively extend the service life of the battery. Good refrigeration control function can obtain better energy-saving effect.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension W×D×H 800×800×2000mm |
| Layout | One compartment | |
| Equipment Installation Method | Rack and battery shelves | |
| Door | One front door,with three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel,double wall | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
3.Cabinet Features
- The intelligent control system can control the refrigeration system to stabilize the temperature in the cabinet at 10 ~ 26 ℃;
- High temperature alarm function;
- Fault alarm function;
- Compatible with storage batteries of multiple manufacturers and models;
- Exhaust device and timing exhaust function;
- Redundant auxiliary control interface;
- RS485 communication interface
4. Cabinet Cooling System

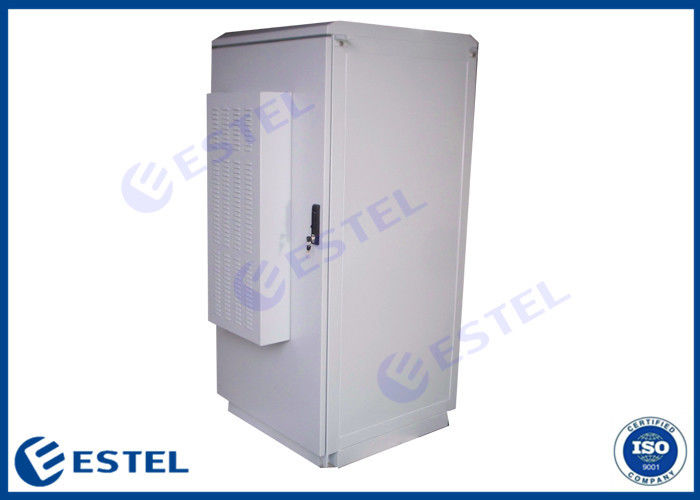

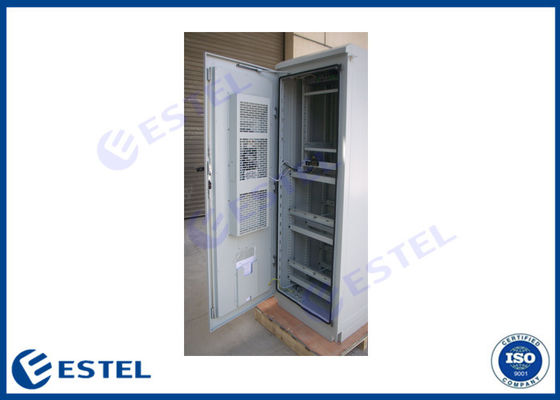

There are is one 1500W air conditioner installed on the front doors.
5. Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
6.Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
7. Cabinet Production
8. Delivery Time
It will take 20 days after receiving the payment.
