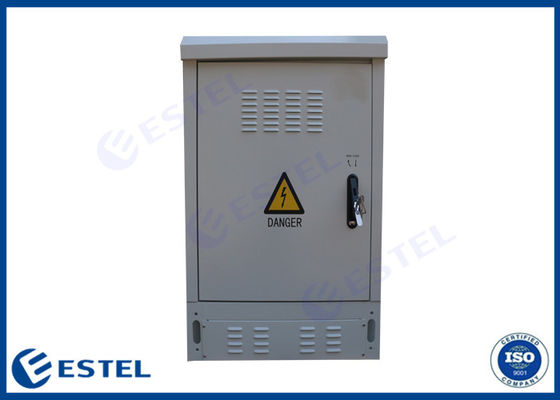

OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet

OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7575100-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Type: Battery UPS Cabinet External Size(H×W×D): 1000mm×750mm×750mm
Material: SGCC/Galvnaized Sheet Color: Grey RAL7035 Powder Coating
Application: Outdoor Communication Base Station Working Temperature: -40℃~+75℃
High Light:

DC48V Fan Outdoor Electrical Cabinet

,

1000mm Height Outdoor Electrical Cabinet

,

1000mm Height outdoor weatherproof box

Product Description

OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet

IP55 Custom Made OEM Waterproof Enclosure Outdoor Electrical Cabinet Equipment Battery Integrated Cabinet

Profile



The integrated outdoor telecom cabinet can be directly under the outdoor climate, made of metal or non-metallic material, does not allow the operator to access the cabinet. The cabinet can install base station equipment, power supply, battery, temperature control equipment, transmission equipment and other related equipment, and can provide reliable mechanical and environmental protection for normal operation of the internal equipments.

The cabinet is mainly used for wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.



Features



●Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution, options: air conditioner, heat exchaner and fan

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Perfect air duct design to avoid cold and hot air mixed flow effectively

● Professional outdoor anti-corrosion powder coating, strong weather resistance

● Universal rack design applied for types of battery

● Support custom made

● Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55



Specitications



Configuration Item Technical Parameter
Cabinet Body Model ET7575100-UP
Size External Size: 1000mm×750mm×750mm(H×W×D)
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material High quality galvanized steel plate, single wall, 1.5mm thickness
Structure
  • One front door, hidden zinc alloy hinge
  • Outdoor special steel lock, lock core assemble protection cover, lock body assemble three point locking devic
  • Install the door limit / wind lock on the inside of the cabinet door;
  • The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof
  • The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.
  • The upper part is 6U 19” rack, the lower part is one battery shelf
  • Equipped with cable manage
  • Reserving the cable entry hole at the bottom of the cabinet
  • Including grounding copper bar.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Grey RAL7035
Ingress Protection IP55
Working Temperature -40℃~+75℃
Cooling Method Air Conditioner Optional
Heat Exchanger Optional
Fan 2 DC48V fan, including temperature controller
Monitoring Monitoring Unit /
Smoke Monitoring /
Vibration Monitoring /
Water Monitoring /
SMS alarm /
Door Open Alarm /
Other /
Lighting LED Lamp DC48V
LED Lamp Switch Used for controlling lamp on/off





Cabinet Drawing

External size: W×D×H 750×750×1000mm

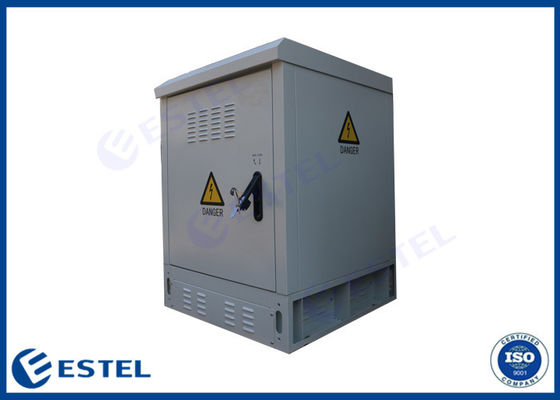

OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet 0

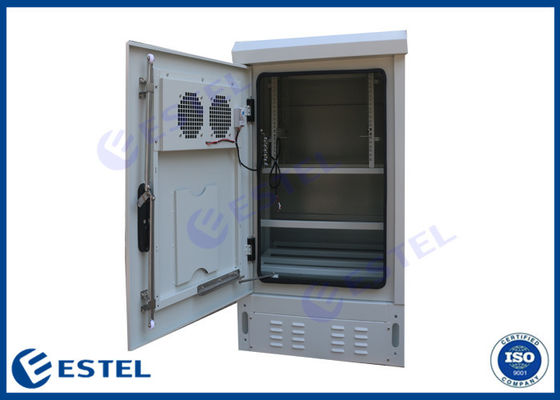

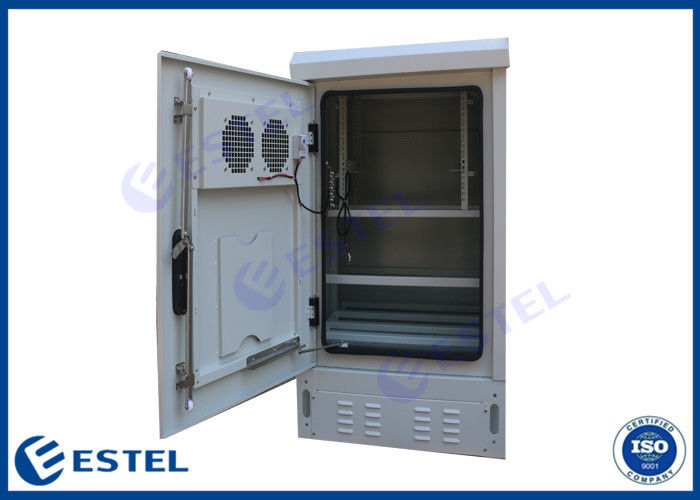

Cabinet Pictures



OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet 1



Application

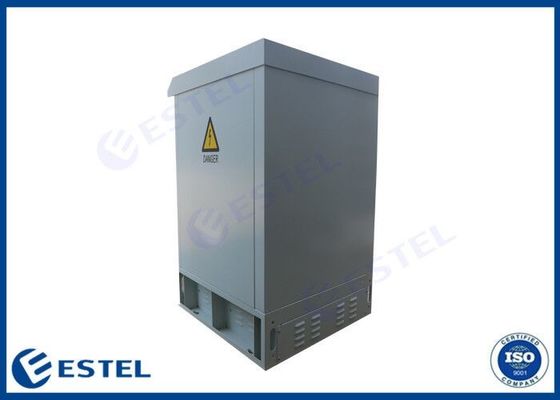

OEM 1000mm Height DC48V Fan Outdoor Electrical Cabinet 2





FAQ



Q1.Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.

Q2: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.

Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.

Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.

Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by EMS,UPS, Fedex, TNT, DHL or AIR for small order,which usually takes about 5-12 days. And by SEA for bulk order, which usually takes about 1-2 months depend on the destination.

Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
