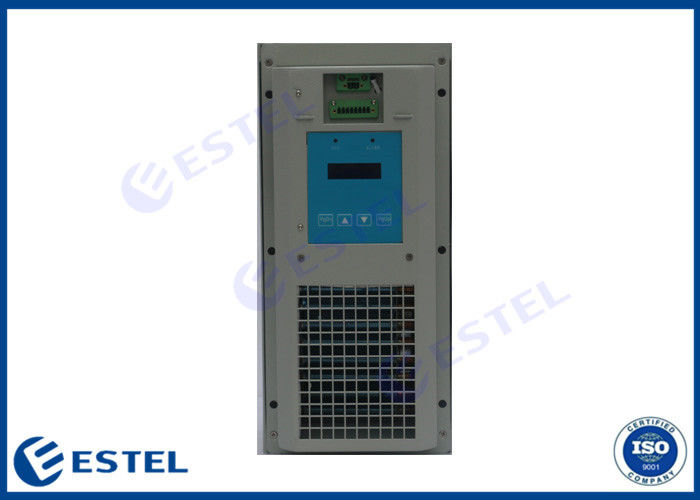

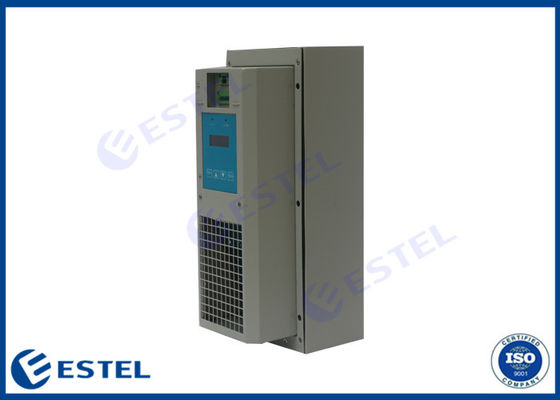

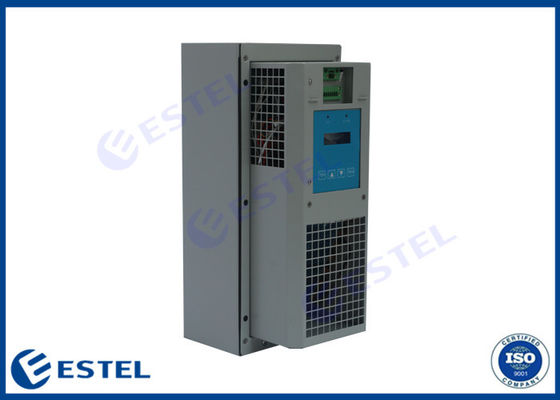

High Precision R143A 3.6A Outdoor Cabinet Air Conditioner

High Precision R143A 3.6A Outdoor Cabinet Air Conditioner

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC,IP55
Model Number: E115000500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 2,000 sets per month
Get Best Price Contact Now

Detail Information

Power Supply: DC48V Cooling Capacity(L35/L35): 500W
Refrigerant: R134a Protection Level: IP55
Rated Power Consumption(L35/L35): 173W Package: Wooden Case
High Light:

3.6A Outdoor Cabinet Air Conditioner

,

R143A Outdoor Cabinet Air Conditioner

,

R143A cabinet air cooler

Product Description

High Precision R143A 3.6A Outdoor Cabinet Air Conditioner



High Performance DC 500W Cooling Capacity Cabinet Air Conditioner R143A



1. Product Instruction



This air conditioner is a fully automatic temperature control equipment product. The product uses the intelligent controller independently developed by our company to control the whole system of the product. The intelligent controller automatically detects and automatically runs according to the change of the ambient temperature, and records the operation time, power consumption, events and historical data of the whole system. The record storage of the data can store 100% Event records, 1280 historical data records and 256 day log information can be queried. The product is used in communication cabinet, medium and small machine room, UPS room, outdoor base station room of operators, ATM teller machine room of bank, etc.



2. Product Feature



1. Strong adaptability

2. High intelligence

3. High precision

4. High reliability

5. Low noise

6. Low energy consumption

7. Self provided 4-way switch value detection

8. Air conditioning control of one machine room

9.Wide voltage input range: 48VDC ± 15%

10. Alarm output with dry contact



3. Technical Parameters



Type Parameters
Dimensions (Include flange)

150mm×190mm×45mm wdh

MTBF

60000h
Mounting method Door mounted
Working temperature -30°C~70°C;<90%RH;
Input voltage DC48V
Cooling capacity L35/L35 500 W

Rated power consumption

(L35/L35)

173W
Rated Refrigerating current (L35/L35) 3.6A
IP grade IP55
Refrigerant R134A
Noise 60 dB(A)



4. Product Dimension



High Precision R143A 3.6A Outdoor Cabinet Air Conditioner 0





5.Installation Steps



1. Make sure the air conditioner is in power off state

2. Fix the air conditioner according to the mechanical installation drawing

3. Strip the insulation layer of power supply line and press the terminal head

4. Conduct wiring according to the electrical wiring diagram

5.After wiring, check whether the power line is normal with a multimeter, and then check the running current with a current clamp meter



6. Application



The air conditioner has superior performance, convenient and quick installation, and is widely used in civil air-conditioning places such as small and medium-sized machine room, UPS room, outdoor base station room of operators, bank ATM teller machine room, etc.
