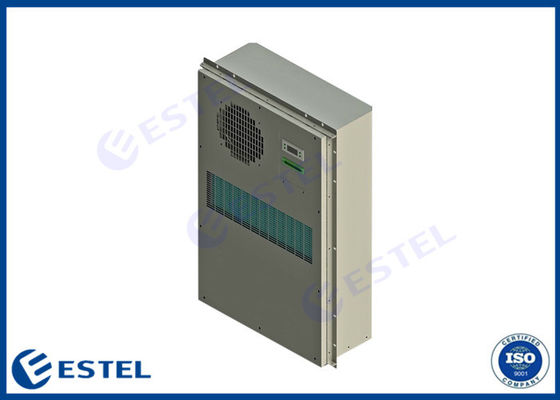

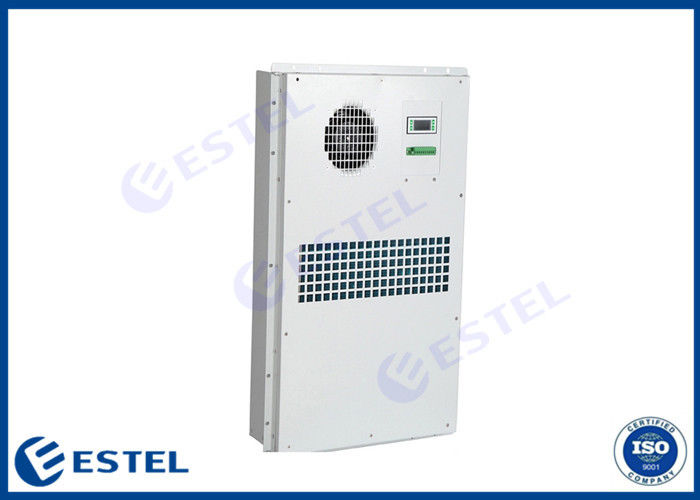

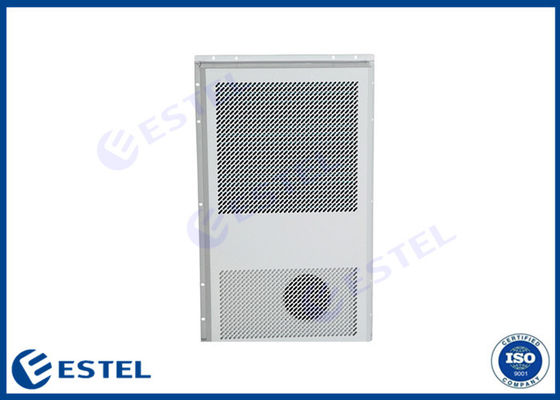

1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | CE, 3C, ROHS |
| Model Number: | ETA015DC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Depends on order quantity |
| Packaging Details: | wooden case + pallet |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
|
Detail Information |
|||
| Power Supply: | -48VDC | Power Consumption: | Low Power Consumption, Energy Saving |
|---|---|---|---|
| Cooling Capacity: | 1500W@L35/L35 | Heating: | Optional |
| IP Grade: | IP55 | Noise Level: | 65dB(A) |
| Finish: | Outdoor Type Powder Coating | Color: | RAL7035 |
| Highlight: | 48VDC Outdoor Cabinet Air Conditioner,1500W Outdoor Cabinet Air Conditioner,1500W electrical cabinet air conditioner |
||
Product Description
1500W 48VDC Outdoor Power Cabinet Air Conditioner Low Power Consumption R134a
Model: ETA015DC
Technical Parameters
| Name | Outdoor Cabinet Air Conditioner |
| Model | ETA015DC |
| Dimension (Including flange) | 782×482×200mm |
| Dimension (Without flange) | 745×445×200mm |
| Weight | 34kg |
| Mounting Method | Semi-embedded Mounting |
| Power Supply | -48VDC |
| Cooling Capacity | 1500W@L35/L35 |
| Cooling Consumption | 395W@L35/L35 |
| Airflow | 440m³/h |
| Cooling Working Temperature Range | -15℃~+55℃ |
| Heating | Optional |
| Refrigerant | R134a |
| IP Grade | IP55 |
| Max Noise Level | 65dB(A) |
| Finish | Outdoor type powder coating Standard color:RAL7035 |
Application
● Outdoor telecom base station
● Outdoor battery cabinet
● Wireless outdoor telecom cabinet
Features & Benefits
● -48VDC power input, wide power supply voltage range
● 1500W cooling capacity (L35L35)
● Low power consumption design, energy saving
● Door mounted – easy integration in outdoor cabinets
● Optional configured with heater
● RS485 for remote control
● Environmental friendly – R134a and RoHS compliant
● Applicable for high temperature environment (T3)
● LED display, all settings can be changed at the field
● Lifetime >10 years – minimum maintenance
● Resistant to corrosive environments – IP55 and Salt fog tested
Dimension
Application
