Stainless Steel IP55 1000W Outdoor Cabinet Air Conditioner
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | ESTEL |
| Certification: | 3C, CE, ISO, ROHS |
| Model Number: | E142010800, E142011000, E142011500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Depends on order quantity |
| Packaging Details: | Wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 3000 sets per month |
|
Detail Information |
|||
| External Dimension: | 750×450×200mm (Height × Width× Depth) | Application Environment: | Outdoor |
|---|---|---|---|
| IP Grade: | IP55 | Housing Material: | Galvanized Steel, Stainless Steel Optional |
| Refrigerant: | R134a | Input Voltage Range: | 220±15%VAC~50Hz |
| Installation Method: | Door Mounted, Side Mounted | Cooling Capacity(L35/L35): | 800W, 1000W, 1500W1 |
| High Light: | 1000W Outdoor Cabinet Air Conditioner,IP55 Outdoor Cabinet Air Conditioner,IP55 small cabinet air conditioner |
||
Product Description
Outdoor Telecom Enclosure Air Conditioner 800W 1000W 1500W 220VAC IP55 Side Mounted
Overview
The outdoor cabinet air conditioners are widely used in enclosed area for climate control, such as outdoor telecommunication cabinet, outdoor battery cabinet, industry control cabinet etc.
The outdoor cabinet air conditioners are designed to cool your electronic and electrical controls, telecommunication equipment, cameras, optical equipment and many other electronics in variety of environments. Our outdoor cabinet cooling systems are designed for use with a wide range of enclosures. Models are available for both in AC and DC power configurations.
Features
• The air conditioner is especially suitable for outdoor telecom cabinet.
• Stainless steel housing optional, for best corrosion resistant
• Remote measuring, remote communication, remote control, can realize multiple automatic protection and comprehensive self-testing function.
• Unique energy-saving & control technology.
• Fit for T3 high temperature working condition by using of R134a refrigerant gas.
• Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol).
• LCD Display, all the settings can be changed at the field.
• The heating function is optional.
• Dry contact alarm output, NO/NC optional.
• Strict process control and international brand parts deployed to ensure high quality and reliability of air conditioner.
Technical Specifications
| Item | Unit | E142010800 | E142011000 | E142011500 |
| External Dimension (Height × Width× Depth) | mm | 750×450×200 | ||
| Application Environment | Outdoor | |||
| Operating Environment Temperature | ⁰C | -40 to +55 | ||
| IP Grade | IP55 | |||
| Refrigerant | R134a | |||
| Input Voltage Range | 220±15%VAC~50Hz | |||
| Installation Method | Door Mounted | |||
| Cooling Capacity(L35/L35) | W | 800 | 1000 | 1500 |
| Rated Power(L35/L35) | W | 360 | 380 | 580 |
| Rated Current (L35/L35) | A | 1.64 | 1.7 | 2.6 |
| Maximum Working Current | A | 4.6 | 4.6 | 4.6 |
| Heat Capacity(optional) | W | 1000 | 1000 | 1000 |
| Noise | dB(A) | 65 | 65 | 65 |
| Weight | Kg | 24 | 24 | 29 |
| Air Volume of Inner Circulation | m3/h | 320 | 320 | 320 |
Dimension

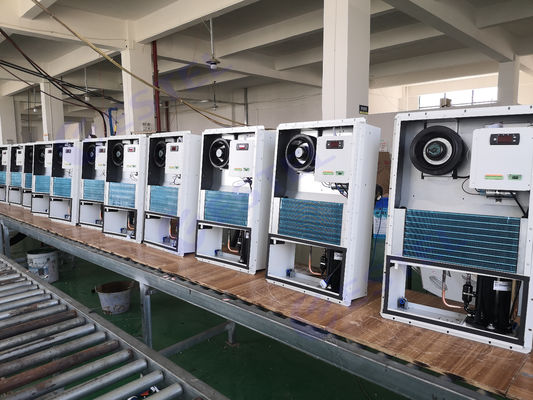

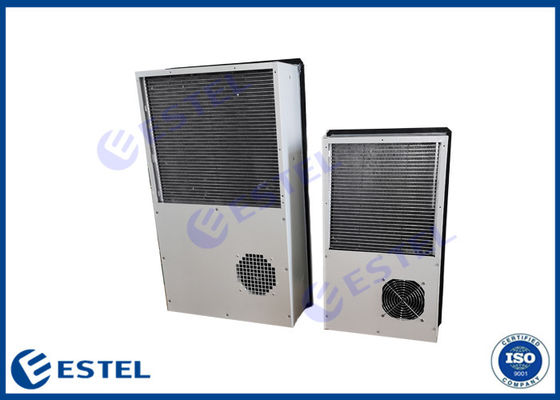

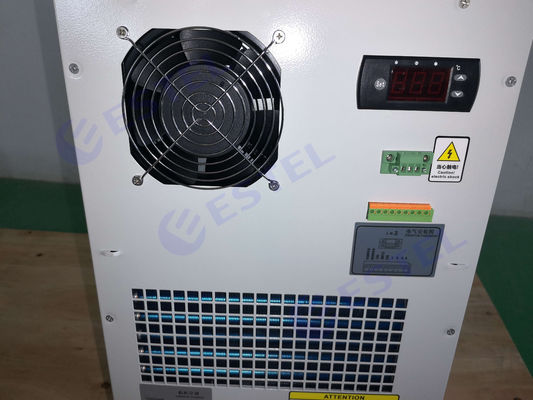

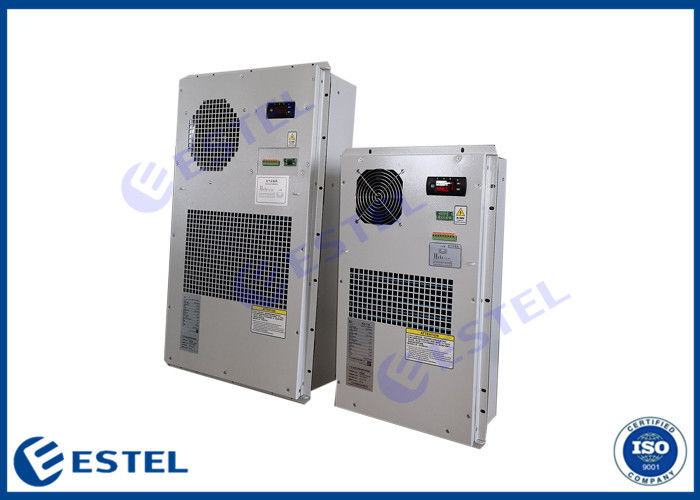

Pictures
