High Temperature 2000W 60Hz Cabinet Air Conditioning Units
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | 3C, CE, ISO |
| Model Number: | E142022000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Depends on order quantity |
| Packaging Details: | carton + wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 3000 sets per month |
|
Detail Information |
|||
| Cooling Capacity: | 2000W | Input Voltage Range: | 220±15%VAC~60Hz |
|---|---|---|---|
| Working Environment Temperature: | -40 To +65⁰C | Installation Environment: | Outdoor Telecom Enclosure |
| IP Grade: | IP55 | Refrigerant: | R134a |
| Rated Input Power: | 1000W | Rated Current: | 4.6A |
| High Light: | 60Hz Cabinet Air Conditioning Units,2000W Cabinet Air Conditioning Units,2000W cabinet air conditioner |
||
Product Description

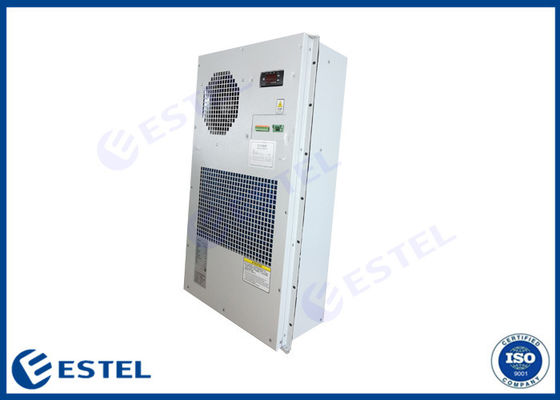

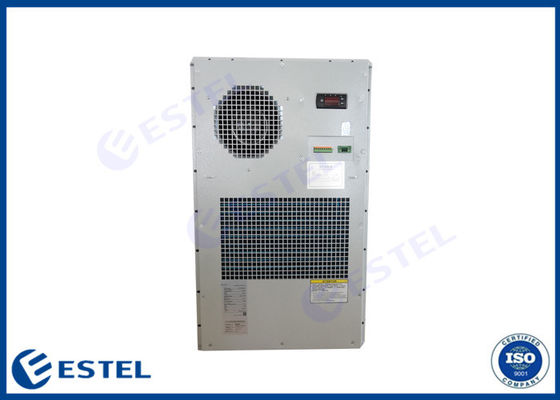

IP55 Outdoor Cabinet Air Conditioning High Temperature
2000W 220VAC 60Hz Installed On Cabinet Door
Model: E142022000
Introduction
The outdoor cabinet air conditioners have been widely used in outdoor telecom enclosure. The equipments inside the outdoor telecom cabinet are dense and generate a lot of heat. System failures caused by poor heat dissipation and excessive temperature rise are quite common. The traditional cooling method is that the fan directly cools down, and the heat dissipation effect is poor. Outdoor cabinet air conditioner can effectively reduce the internal temperature of the outdoor telecom cabinet and prevent dust, moisture and corrosive gases from entering the outdoor telecom cabinet.
The outdoor telecom cabinet air conditioner is specially used for outdoor unattended stations in the communication industry. The protection level of the outdoor telecom cabinet and air conditioner is IP55. By cooling the air of the outdoor telecom cabinet while dissipating the heat inside the cabinet and protecting the temperature-sensitive components; the air circulation system inside and outside the cabinet is completely isolated, keeping the cabinet well sealed to avoid external moisture, dust and insect Invasion.
Features
Dust and moisture proof
The cabinet air conditioner can effectively reduce the internal temperature of the outdoor cabinet and can prevent dust, moisture and corrosive gases from entering the outdoor cabinet, which can ensure the reliable operation of the equipments inside the cabinet.

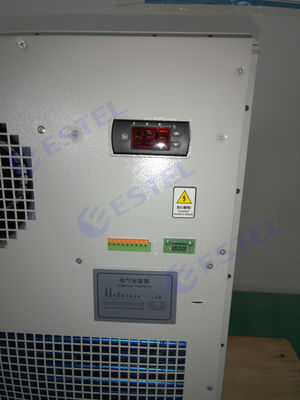

LCD display
LCD display screen, the temperature inside the cabinet can be seen at a glance, and the temperature inside the cabinet can be accurately controlled.
Air conditioning back
The screws are completely designed in the cabinet to play the role of anti-theft; all parts are removed and maintained from the back.
Technic Specifications
| Item | Name | Unit | Parameter |
| Dimension and installation | Body external dimension (H×W×D ) | mm | 1270×533×231 |
|
External dimension including flange(H×W×D ) |
mm | 1345×558×231 | |
| Weight | Kg | 42 | |
| Installation method | Door Mounted | ||
| Installation environment | Outdoor | ||
| Environment and protection | Working environment temperature | ⁰C | -40 to +65 |
| Noise | dB(A) | 65 | |
| IP grade | IP55 | ||
| Refrigerant | R134a | ||
| Performance | Input voltage range | 220±15%VAC~60Hz | |
| Cooling capacity(L35/L35) | W | 2000 | |
| Rated input power(L35/L35) | W | 1000 | |
| Rated current (L35/L35) | A | 4.6 | |
| Maximum working current | A | 6.8 | |
| Heat capacity(optional) | W | / | |
| Air volume of inner circulation | m3/h | 940 | |
Air conditioner installed on outdoor telecom cabinet
