IP55 400mm Depth Pole Mount Weatherproof Enclosure

IP55 400mm Depth Pole Mount Weatherproof Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE,
Model Number: ET604075

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Protection Level: IP55 Material: Galvanized Steel, Single Wall With Insulation
Application: Outdoor Base Station External Size: W×D×H 600×400×750mm
Installation Method: Pole Mount Coating: Outdoor Powder Coating
Cooling: DC48V 300W Air Conditioner Package: Wooden Case With Pallet
High Light:

400mm depth Pole Mount Weatherproof Enclosure

,

400mm depth IP55 Pole Mount Weatherproof Enclosure

,

400mm depth pole mount enclosure

Product Description

IP55 400mm Depth Pole Mount Weatherproof Enclosure





19" Equipment Rack Pole Mount Weatherproof Enclosure IP55 Thermal Insulation Outdoor Telecom Cabinet



1. Features



(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: air conditioner/fan cooling.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) IP level: IP55

(5) Coating: outdoor anti-corrosion powder coating





2. Application



The ET604075 outdoor cabinet is mainly used in wireless communication base station, can used for containing battery, switch, solar controller, modem, power supply, circuit board, breaker etc. It is pole mount.





3. Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 600×400×750mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door and cabinet lock
Material Galvanized steel, single wall with insulation
Ingress Protection IP55
Temperature Control Cooling Air conditioner
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Cabinet 1 PC

(1) External Dimension:

W×D×H 600×400×750mm

(2) One compartment, include 13U 19” rack

(3) With one front door and cabinet lock

(4) Material: galvanized steel, single wall with insulation (5) Including cable entry gland on the bottom

(6) IP grade : IP55

(7) Installation method: pole mount, including installation accessories

2 Air conditioner 1 PC DC48V 300W
3 Package 1 PC wooden case with pallet

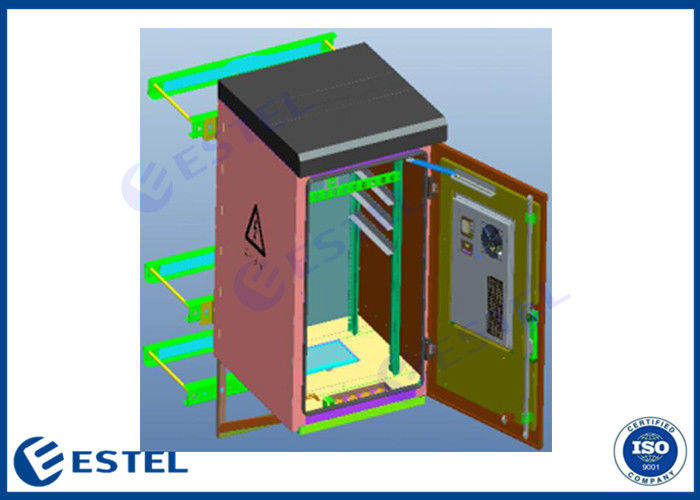

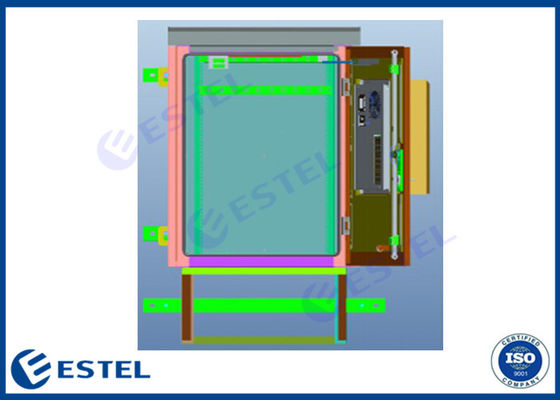

5. Pole Mount Diagram



IP55 400mm Depth Pole Mount Weatherproof Enclosure 0





6. Cabinet Picture



IP55 400mm Depth Pole Mount Weatherproof Enclosure 1





7. Shipping and Loading container



IP55 400mm Depth Pole Mount Weatherproof Enclosure 2
