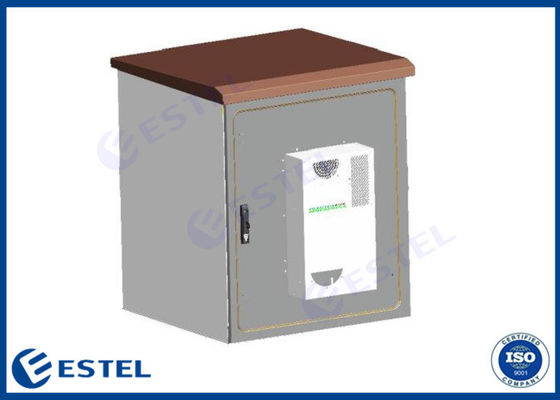

Steel ISO9001 AC220V Pole Mount Weatherproof Enclosure
Product Details:
Place of Origin: | China |
Brand Name: | ESTEL |
Certification: | ISO9001 |
Model Number: | ET8080100P-D |
Payment & Shipping Terms:
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | Wooden Case |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1500 PCS per month |
Detail Information |
|||

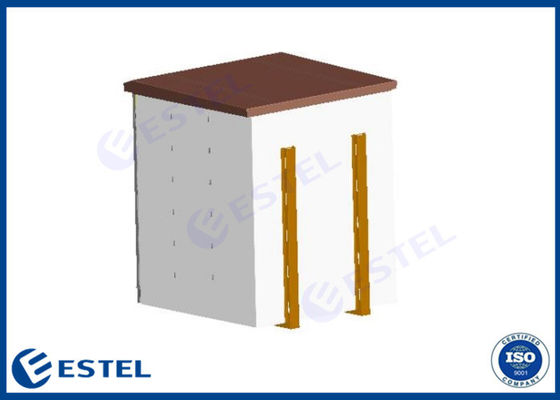

Install Method: | Pole Mounted | Inner Structure: | The Upper Part Is Equipment Bay, The Lower Part Is Battery Bay |
---|---|---|---|
Cooling: | Air Conditioner | Material: | Galvanized Steel |
Steel Structure: | Double Wall With Insulation | External Size: | W×D×H 800×800×1000mm |
Lock: | Three-point Lock | Protection: | IP55 |
Highlight: | AC220V Pole Mount Weatherproof Enclosure,ISO9001 Pole Mount Weatherproof Enclosure,ISO9001 outdoor electronics cabinet |
Product Description
Steel Temperature Control Pole Mount Weatherproof Enclosure Telecom Cabinet Double Wall Equipment Battery Cabinet
1. Features
· High quality galvanized steel
· IP55 cabinet, waterproof, dustproof, single layer steel plate with thermal insulation
· Outdoor anti-corrosion polyester powder coating
· Anti-theft three-point outdoor cabinet lock, support padlock
· High performance air conditioner unit for cooling
· Door stopper to hold door open at service
· Hidden hinge, inside screws, embedded door, enhance the theftproof
2. Application
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
3. Specifications
(1) Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension |
External Dimension: W×D×H 800x800x1000mm Internal Dimension: W×D×H 750x730x880mm |
Layout | One compartment | |
Equipment Installation Method | 19” standard rack and battery shelf | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material |
1.Galvanized steel; 2.Double wall with heat insulation |
|
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner |
Lighting | LED lamp | 48V LED lamp |
Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
Storage Temperature: -40°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
(2) Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Pole Mounted Cabinet | 1 | Set |
(1) External Dimension: W×D×H 800×800×1000mm Internal Dimension: W×D×H 750×730×880mm (2)1 compartment: the upper part is 19" equipment bay,inlcuding 19" installation rail; the lower part is battery bay, including battery shelf. (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, double wall with heat insualtion (5) Installation method: pole mount, inlcuding pole installation accessories. (6) Including grounding bar (7) including cable entry at the bottom |
2 | Air Conditioner | 1 | Set | Cooling capacity: 500W, Power supply: AC220V 60Hz |
3 | LED Lamp | 1 | PC | DC48V |
4 | LED Lamp Sensor | 1 | PC | Used for controlling LED lamp on /off |
5 | Package | 1 | Set | Wooden Case |
4. Dimension Diagram
Cabinet External Size : 800×800×1000mm (W×D×H),
Cabinet Internal Size : 750×730×880mm (W×D×H)

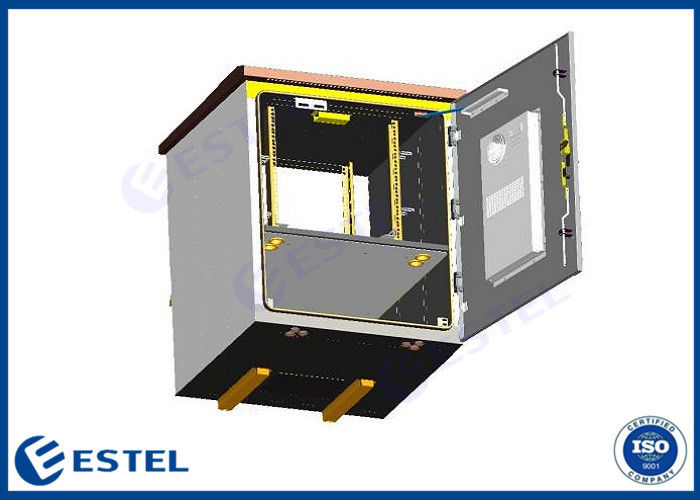

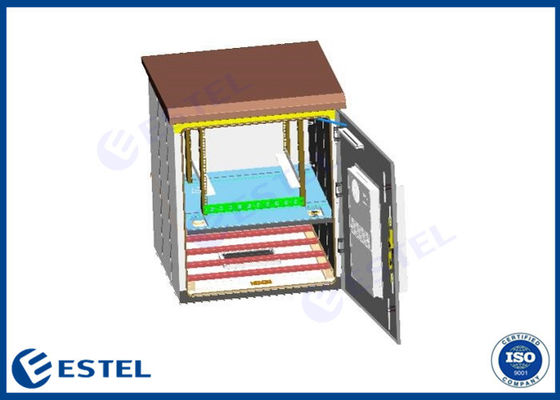

5. Cabinet Layout
6. Factory
