Variable Frequency DC48V 300W Cabinet Air Conditioner
Product Details:
Place of Origin: | China |
Brand Name: | ESTEL |
Certification: | ISO9001, CE, RoHs |
Model Number: | ET003ED |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 2-3 weeks |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 2000 pcs/month |
Detail Information |
|||
Type: | Cabinet Air Conditioner | Condition: | New |
---|---|---|---|
Mounting: | Door Mount | Operating Voltage: | DC48V |
Application: | Use For Telecom Cabinet As Cooling | Weight: | 7kg |
Refrigerant: | R134a | Dimension(hl*w*d): | 390x220x150 |
Highlight: | 300W Cabinet Air Conditioner,DC48V Cabinet Air Conditioner,300W electrical cabinet air conditioner |
Product Description
Compact Energy Saving Variable Frequency DC48V 300W Outdoor Cabinet Air Conditioner Dry Contact Alarm
Product Feature
* Remote measuring, remote communication, remote control, which can realize multiple au-tomatic protection and comprehensive self-testing function;
* DC Air conditioner, Power supply voltage range;
* Fit for harsh condition (T3), R134a refrigerant ;
* Multiple self protection design, RS485 communication through MODUS protocol;
* Low power consumption design with (SEER≥5.5);
* LED display, all the settings can changed at the field;
* Strict process control and international brand parts deployed to ensure high quality and product;
* Dry contact alarm output, NO/NC optional;
* Anti-theft design, without the protection cover.
Technical Data
Product Model | ET003ED | |
Dimensions, Weight & Mount | ||
External Dimensions (H x W x D) | MM | 390x220x150 |
Weight | KG | 7 |
Mounting Method | Side Mounting | |
Application | Outdoor | |
Environmental Protection & Performance | ||
Working Temperature Range | ºC | -15 to +55 |
Noise Level | dB(A) | 55 |
IP Grade | IP | IP55 |
Refrigerant | R134a | |
CE & RoHS Compliant | YES | |
Cooling Capacity & Operational Data | ||
Cooling Capacity@L35 / L35 | W | 300 |
Internal Airflow | M3/h | 100 |
Power Consumption@L35/L35 | W | 130 |
Power, Frequency & Range | ||
Input Voltage | VDC | DC48V |
Surface treatment | RAL7035 |
Cooling Capacity Chart and Power Consumption Chart
Dimension
Installation Instructions
In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet.
P.S. This product is free of cover, customers don’t need to install additional cover.
1. If the customer needs to in-stall a protective cover, in or-der to ensure enough circula-tion of air, the opening rate of the air inlet and outlet should be greater than 60%. It is
very important to prolong the unit life and reduce the maintenance frequency.
2. The air inlet and outlet of the protective cover should pre-vent short circuit of air duct, so that the air-con can get the best cooling effect.
3. Due to the opening of the housing problems caused by the fault, not in the scope of the warranty.
Installation Diagram

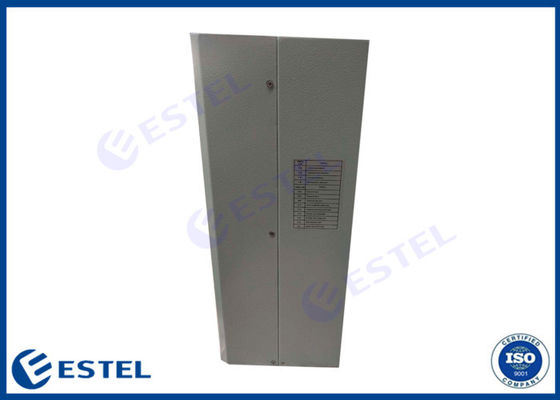

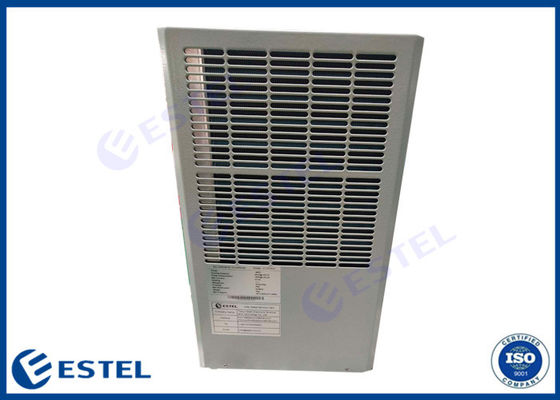

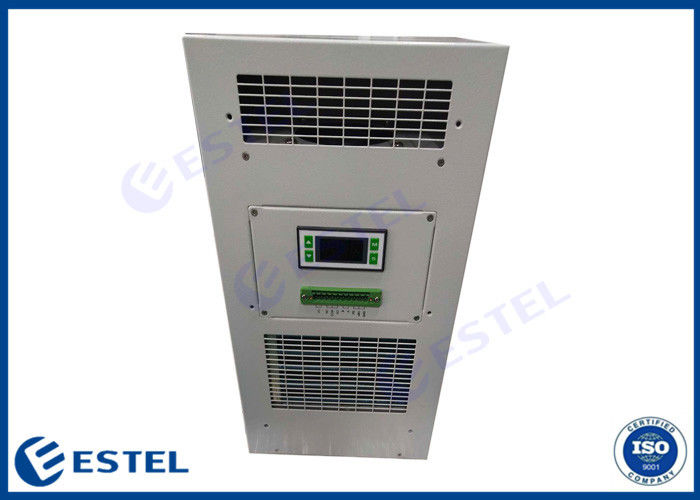

Air Conditioner Pictures
