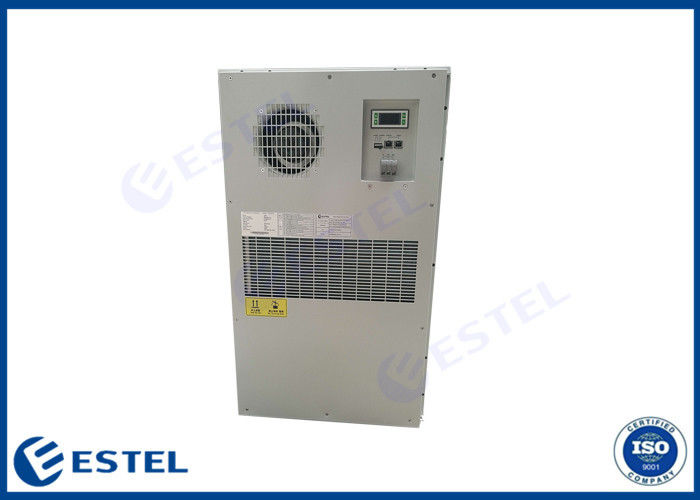

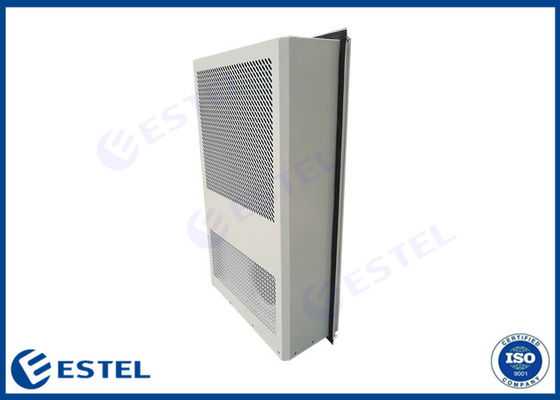

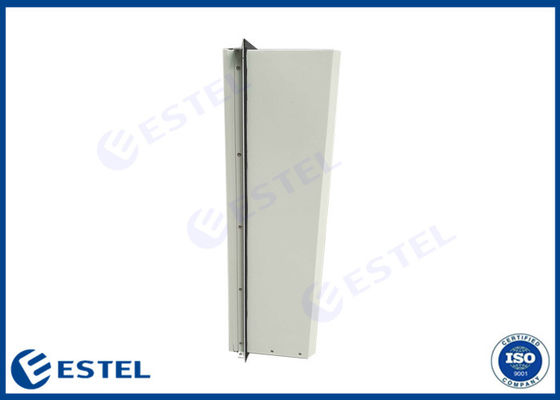

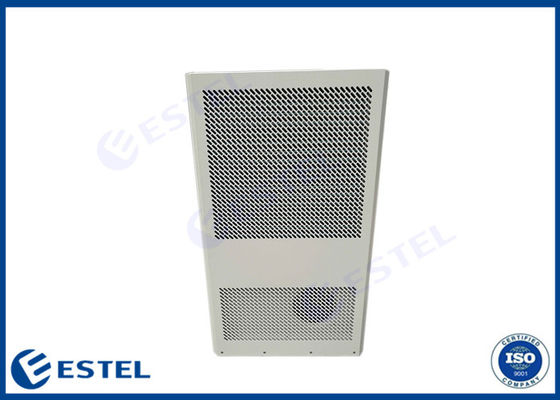

LED Display 48VDC 2000W Electrical Cabinet Air Conditioner

LED Display 48VDC 2000W Electrical Cabinet Air Conditioner

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ETA020DC-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depends on order quantity
Packaging Details: wooden case+pallet
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000 Sets per month
Get Best Price Contact Now

Detail Information

Application: Outdoor Telecom Cabinet, Outdoor Power Cabinet Protection: IP55
Cooling Capacity: 2000W Input Voltage: -48VDC
Refrigerant: R134A Power Consumption L35/L35: 570W
Heating Capacity: 300W /500W Dimension: 745×445×200mm
High Light:

48VDC Electrical Cabinet Air Conditioner

,

2000W Electrical Cabinet Air Conditioner

,

48VDC small cabinet air conditioner

Product Description

LED Display 48VDC 2000W Electrical Cabinet Air Conditioner



IP55 Outdoor Cabinet Air Conditioner 48VDC 2000W Door Mounted for Telecom

Model: ETA020DC-2







DC Air Conditioner for Telecom



The DC series aircon is applied in DC powered outdoor cabinet. Outdoor cabinet air conditioner is thermal control unit with integrated design. The air conditioner is small in volume and light in weight. The air conditioner is usually installed on the cabinet door.





Applications



● Outdoor Hybrid Base station

● Outdoor Battery Cabinet

● Wireless Outdoor Cabinet

● Outdoor Telecom Cabinet

● Outdoor Power Supply Cabinet





Features



● -48VDC power input

● 2000W cooling capacity (L35L35)

● Door mounted – easy integration in outdoor cabinets

● Optional configured with heater

● Wide working temperature range: -15ºC to +55 ºC

● Energy saving, SEER≥5.5

● Environmental friendly – R134a and RoHS compliant

● Resistant to corrosive environments – IP55 and Salt fog tested

● RS485 for remote control

● LED display, all the settings can be changed at the field





Technical Specifications





Model ETA020DC-2
Cooling Capacity L35/L35 2000W
Input Voltage -48VDC
Heating Capacity Optional
Power Consumption L35/L35 570W
Airflow 450m3/h
IP Grade IP55
Dimension 745×445×200mm (H×W×D)
Weight 35kg
Installation Method Door mounted
Working Temperature -15 ~ 55⁰C
Refrigerant R134A
Noise 65dB(A)
Surface Treatment Outdoor powder coating RAL7035





Dimension



LED Display 48VDC 2000W Electrical Cabinet Air Conditioner 0





Air Conditioner Installed on Outdoor Telecom Cabinet



LED Display 48VDC 2000W Electrical Cabinet Air Conditioner 1



LED Display 48VDC 2000W Electrical Cabinet Air Conditioner 2
