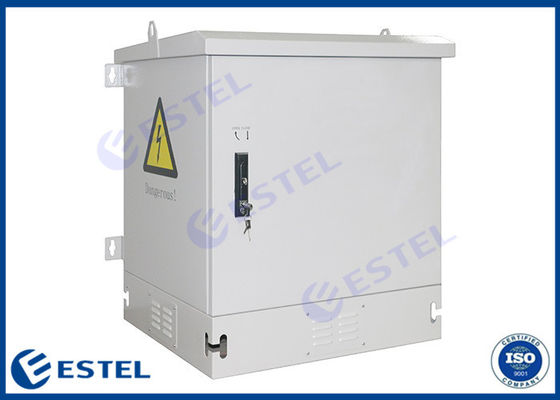

Steel Powder Coating 14U IP55 Outdoor Wall Enclosure

Steel Powder Coating 14U IP55 Outdoor Wall Enclosure

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET706085WF-S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, etc,
Supply Ability: 10,000 sets per month
Get Best Price Contact Now

Detail Information

Cooling: 2 Fans, DC48V, Installed On The Top Material: Single Wall, Galvanized Steel
External Size: W×D×H 700x600x850mm Installation Method: Wall Mounted, Floor Mounted
Surface Treatment: Anticrossive Powder Coating Lock: Anti-theft Three Point Lock
Relative Humidity(RH): 5% ~ 100% IP Level: IP55
Highlight:

IP55 Outdoor Wall Enclosure

,

1U Outdoor Wall Enclosure

,

14waterproof outdoor wall cabinet

Product Description





14U Steel Powder Coating Outdoor Wall Enclosure Telecom Cabinet Small Rack Fan Cooling Weatherproof





Technical Parameter



Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 700x600x850mm
Layout One compartment
Equipment Installation Method 14U 19” rack
Door With one font door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall
Ingress Protection IP55
Temperature Control Cooling DC48V 150W/K heat exchanger




Working Conditioning



Working Conditioning
Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2



Drawing



Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  0







Features



Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  1

Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  2



Mounting Method



Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  3



Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  4



Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  5







Package-wooden case







Steel Powder Coating 14U IP55 Outdoor Wall Enclosure  6
